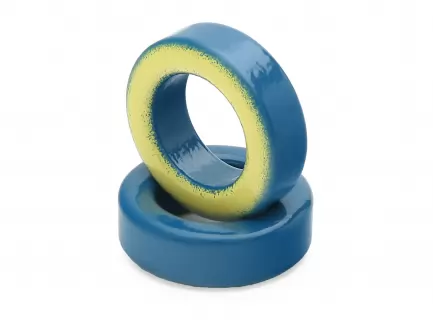

Micrometals T106-17 Iron powder toroid core, 20 - 200 MHz, OD 26.9 mm

T106-17 - Iron powder toroid core, 20 - 200 MHz, OD 26.9 mm

Name: Iron powder toroid core, 20 - 200 MHz, OD 26.9 mm
Brand: Micrometals
SKU: T106-17
Price: 3.57 EUR
Availability: InStock

Order code: T106-17Brand: MicrometalsManufacturer code: T106-17Category: RF iron powder toroids

Product conditions: N

Other available options

Permeability (µ_i)

Outer diameter (metric)

Available in stock

958 Units ready for shipment

Quantity

Minimum: 1 pcs

Multiple: 1 pcs

$4.14 /pcs

$4.14

Prices

Q.ty Price each Extended price

1+ $4.14 $4.14

10+ $3.32 $33.20

25+ $2.76 $69.08

70+ $2.51 $175.54

140+ $2.29 $320.20

350+ $2.17 $759.87

700+ $2.07 $1,446.61

Immediate availability

Dedicated technical support

Secure SSL payments

Micrometals T106-17 Toroidal Core for RF

Engineered for demanding RF and high-frequency applications, the Micrometals T106-17 toroidal core combines a dimension of 26.9 mm (1.06 inches) with exceptional magnetic stability. Made from proprietary -17 iron powder material, this core offers low permeability and a tightly controlled AL value, ensuring predictable inductance across a wide range of operating conditions. Its robust mechanical design make it a trusted choice for engineers developing broadband transformers, EMI filters, and custom inductors. Whether you're optimizing a VHF balun or designing a high-frequency choke, the T106-17 delivers consistent performance, minimal core loss, and reliable thermal behavior.

Typical Applications

RF transformers and baluns
EMI/RFI suppression
Broadband signal conditioning
High-frequency chokes
Custom inductors for VHF/UHF circuits

Micrometals MIX 17 - Key Features

High frequency carbonyl Iron Powder material
High Q up to 150 MHz
Ideally designed for cable television applications
Suited for moderate band transformers from 400 to 700 MHz.
Permeability 4μ

Specifications

Color code:
blue/yellow
Material:
17
Permeability (µ_i):
4
A_L 100 turns:
51 µH
Frequency range:
20 - 200 MHz
Outer diameter (metric):
26.9 mm
Inner diameter (metric):
14.5 mm
Height (metric):
11.1 mm
Outer diameter (imperial):
1.06 in
Inner diameter (imperial):
0.57 in
Height (imperial):
0.437 in

Datasheet

PDF · 439.7 kB

View

Compliance

Country of origin:
US
EU Tariff Code:
85049018
Weight:
17.00 g
RoHS:
Yes
REACH:
SVHC not present
