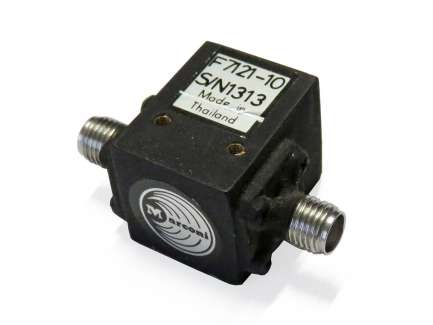

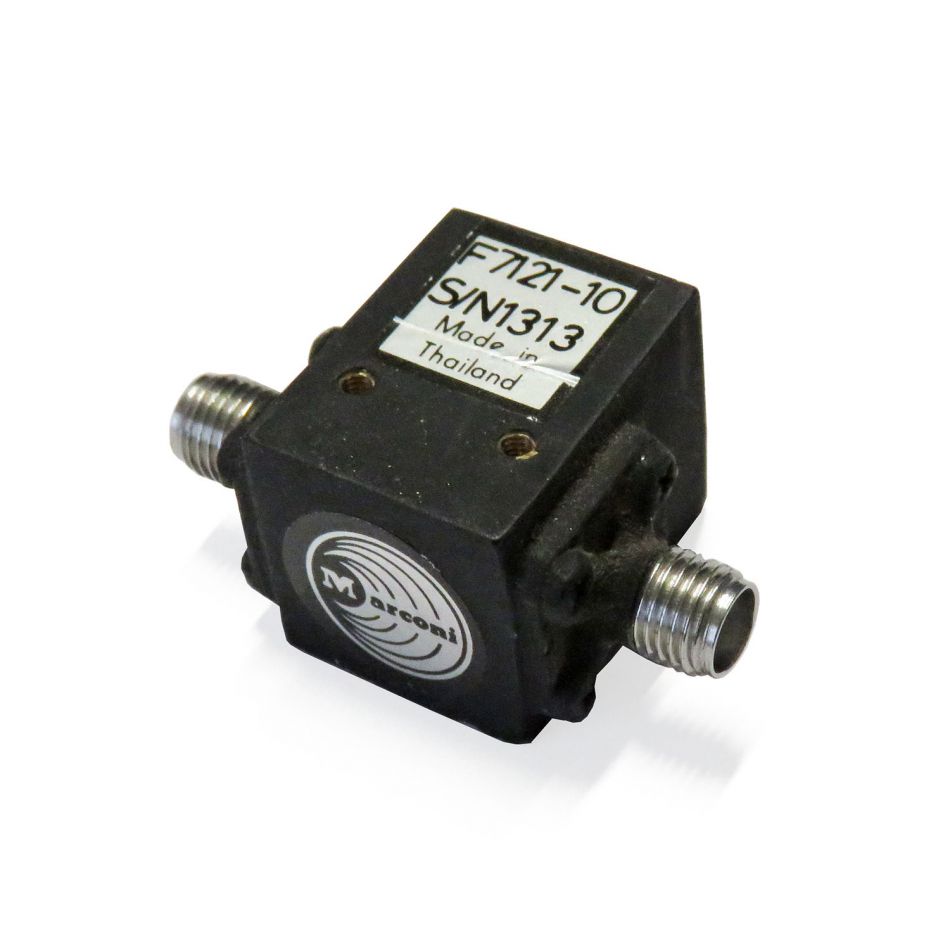

F7121-10 - Coaxial isolator 11 - 18 GHz, 25 W, SMA female / female

Name: Coaxial isolator 11 - 18 GHz, 25 W, SMA female / female
Brand: Marconi
SKU: C2P-14500C
Price: 24.01 EUR
Availability: InStock

Order code: C2P-14500CBrand: MarconiManufacturer code: F7121-10Category: RF Circulators and Isolators

Condizioni del prodotto: C

Available in stock

17 Units ready for shipment

Quantity

Minimum: 1 pcs

Multiple: 1 pcs

$27.88 /pcs

$27.88

Prices

Q.ty Price each Extended price

1+ $27.88 $27.88

5+ $25.11 $125.54

10+ $23.10 $230.98

Immediate availability

Dedicated technical support

Secure SSL payments

Dimension (excluding connectors): 21 x 17mm, h 16 mm

Test report typical characterization of insertion loss, return loss and isolation

Specifications

Configuration:
isolator (2 ports)
Type:
coaxial
Frequency min.:
11 GHz
Frequency max.:
18 GHz
Total bandwidth:
7 GHz
Insertion loss (typ.):
0.7 dB
Return loss (typ.):
18 dB
Isolation (typ.):
18 dB
Max. input power:
25 W
Termination power:
1 W
Connectors (input/output/termination):
SMA female / SMA female

Datasheet

PDF · 540.8 kB

View

Compliance

Country of origin:
TH
EU Tariff Code:
85437090
Weight:
30.00 g
RoHS:
No
REACH:
Not available
