Brand: KDI
Manufacturer code: A3XR28
Order code: ATFSP-03G-20A

SMA coaxial attenuator, 20 dB, 50 W, 3 GHz

Product conditions: N
$87.15
/ pc
(VAT tax not included)
Minimum: 1 pc - Multiple: 1 pc
Stock
47 pcs ready to ship
Compliance
Country of origin US
EU Tariff Code 85332900
Weight 310.00 g
RoHS No
REACH Not available
  • SMA m/f
  • 50 Ohm
  • 20 dB
  • 3 GHz
  • 50 W

SMA coaxial attenuator, 20 dB, 50 W, 3 GHz

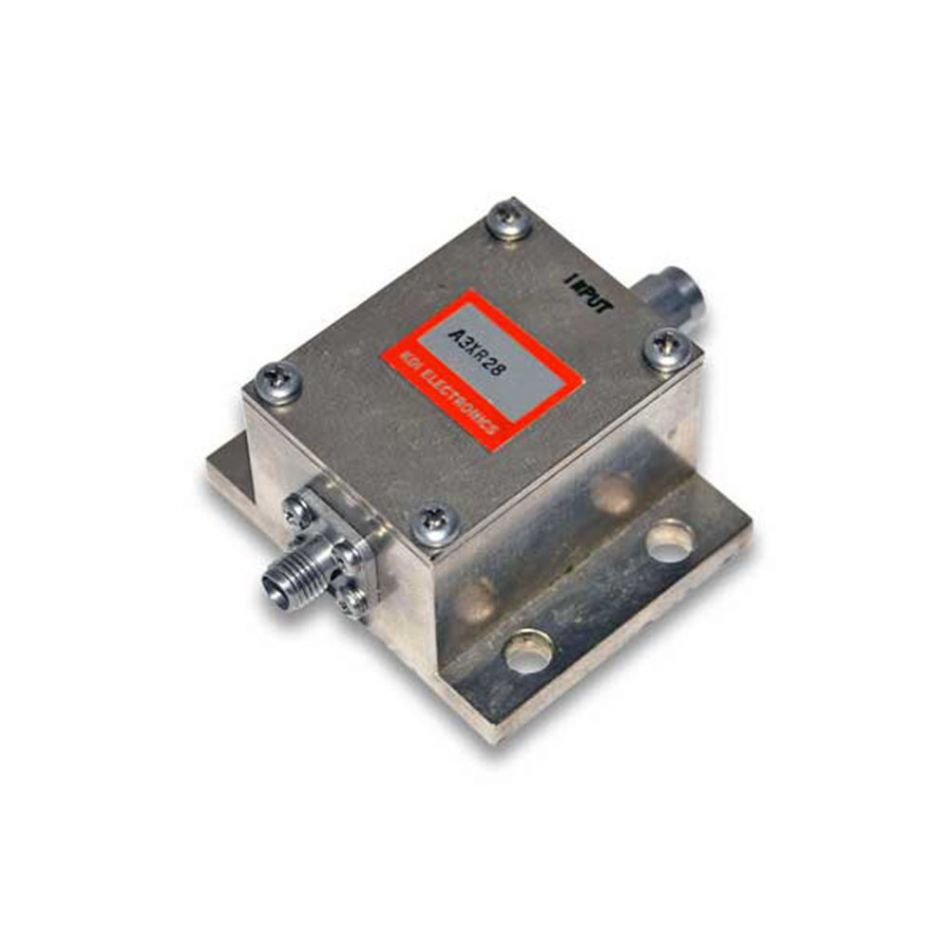

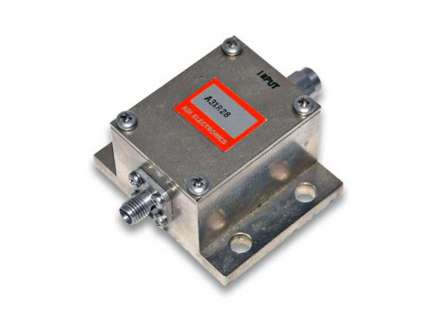

The device is made of a milled and nickel plated brass single block and it contains a 20 dB 50W attenuator with SMA male for RF input and SMA female for RF output connectors. It needs only an adequate heat sink fixed by four M5 screws for continuous RF power operation.

ATFS-A3XR28 or ATTC-H100NA20

Particular application of a power attenuator

The directional coupler is normally used to monitor the reflected power as indicator of the VSWR, the RF reflected power is than detected by a diode and computed as indicator of standing wave.

The same job can be done by a power attenuator used as termination and applied to the circulator, It is also an attenuator for the reflected power to the diode.

So you can avoid to use a directional coupler and a power termination for the circulator.

For example , using our low cost 20dB 100W attenuator type ATTC-H100NA20 the price of the attenuator will be less than the price of the 2 not used componets.



ATFSP-03G-20A
/
