314-193/83
Brand: Huber+Suhner
Manufacturer code: 314-193/83
Order code: CIS-601

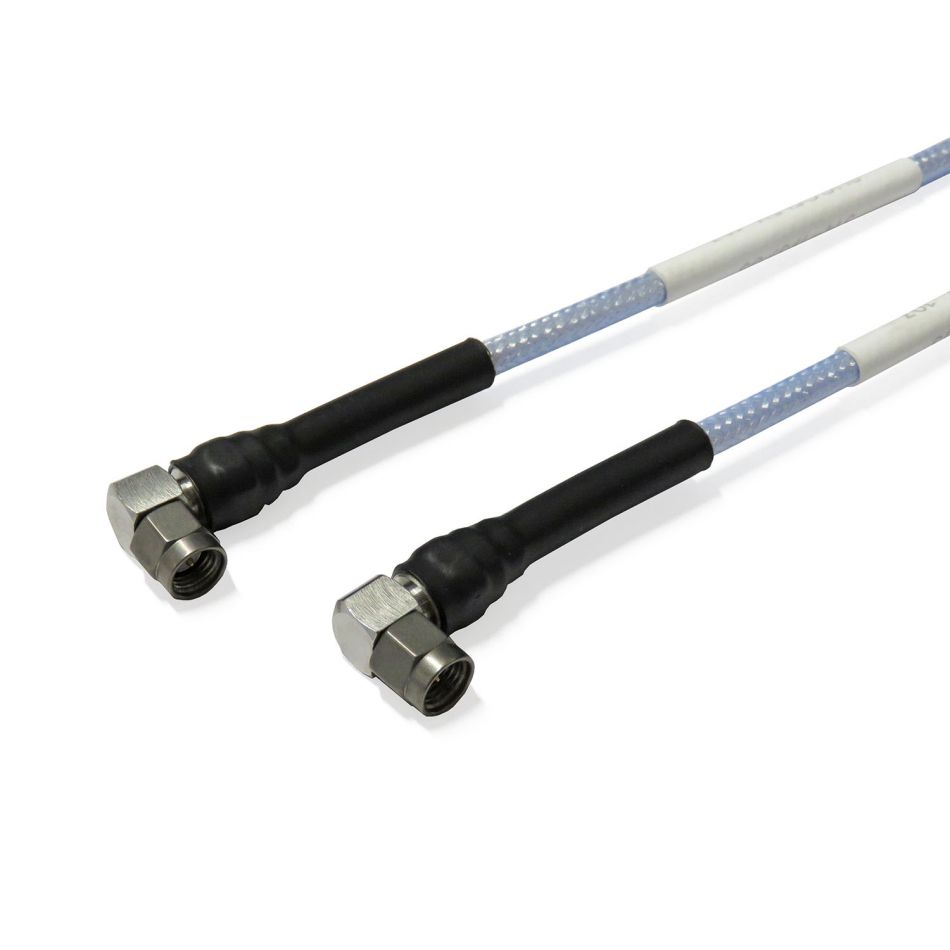

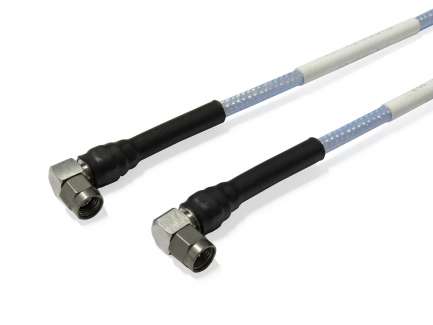

Cable assembly, SMA right angle male/female, SUCOFLEX_103, 20 cm

Product conditions: N-

Cable assembly, SMA right angle male/female, SUCOFLEX_103, 20 cm

These cable assemblies are low loss special types for microwave measurements.
What makes them different from other teflon cables is the low density teflon (except Multiflex types) ie mixed with air so as to ensure maximum flexibility with low loss, because the only teflon insulation is not enough for low attenuation but the presence of a large percentage of air (inert gas) gives the insulator a low attenuation and greater flexibility than the full teflon. Always with the aim of giving them a high reliability in these measures at microwave frequencies these cables have a double shield, of course, both internal conductor and the two shields are silver plated.
Multiflex 141 and 86 types are cheaper versions, compared to other higher performance cables, they have no guarantee on constant phase during bending.

- Return loss: ≥25 dB (1.12 VSWR)
- Attenuation: 1.64 dB/m @ 26.4 GHz
- Power: 120W @ 26.4 GHz
- Frequency range: dc - 26.5 GHz

  • 26.5 GHz
  • 50 Ohm
  • SUCOFLEX_103
  • Low density PTFE
  • SMA > SMA
  • right angle male > female
  • 20 cm
  • high frequency
    high shielding
    high temperature
    low loss
  • flexible
  Title Dimension
Datasheet 62.5 kB
  • CH
  • 85444290
  • 100.00 g
  • No
  • Not available
Do login to add your comment
Availability
Stock
(immediate dispatch)
15 pcs
Cart
Minimum: 1 pc - Multiple: 1 pc
Unit Price:
$70.80
/ pc

Ext. price:
$70.80
(VAT tax not included)
Prices
Q.ty Unit Price Ext. price
1+ $70.80 $70.80
3+ $67.49 $202.46
6+ $64.17 $385.00
10+ $60.85 $608.48
(VAT tax not included)
