These inductances are decoupling choke for RF application from 300 kHz to 700 MHz in power stage such as to bring power supply to transistor collector and drain and power f.e.t., but also as T bias or to provide power supply in DC on a RF cable.
The specified frequency is the best frequency for this application and every inductance has at least 200Ω of impedance at both ends of the range, and in the middle of the range is higher (see listed data). This to guarantee a correct RF decoupling on DC.
The coils has been tested with network analyzer and HP4191A impendance meter to guarantee these frequency range, both in terms of decoupling and in terms of insertion loss, but also like ROS introduced by this choke in case of most critical application as bias T on 50Ω line.
Order code: | BRC-0U6 |
---|---|
|

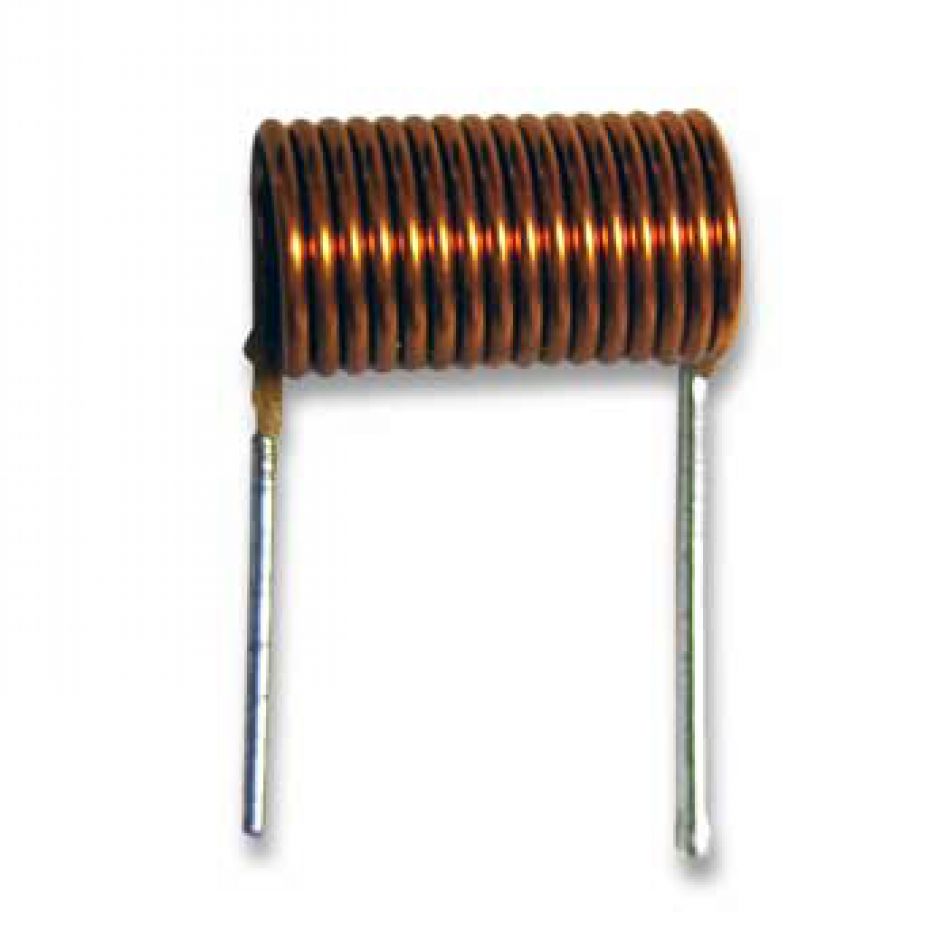

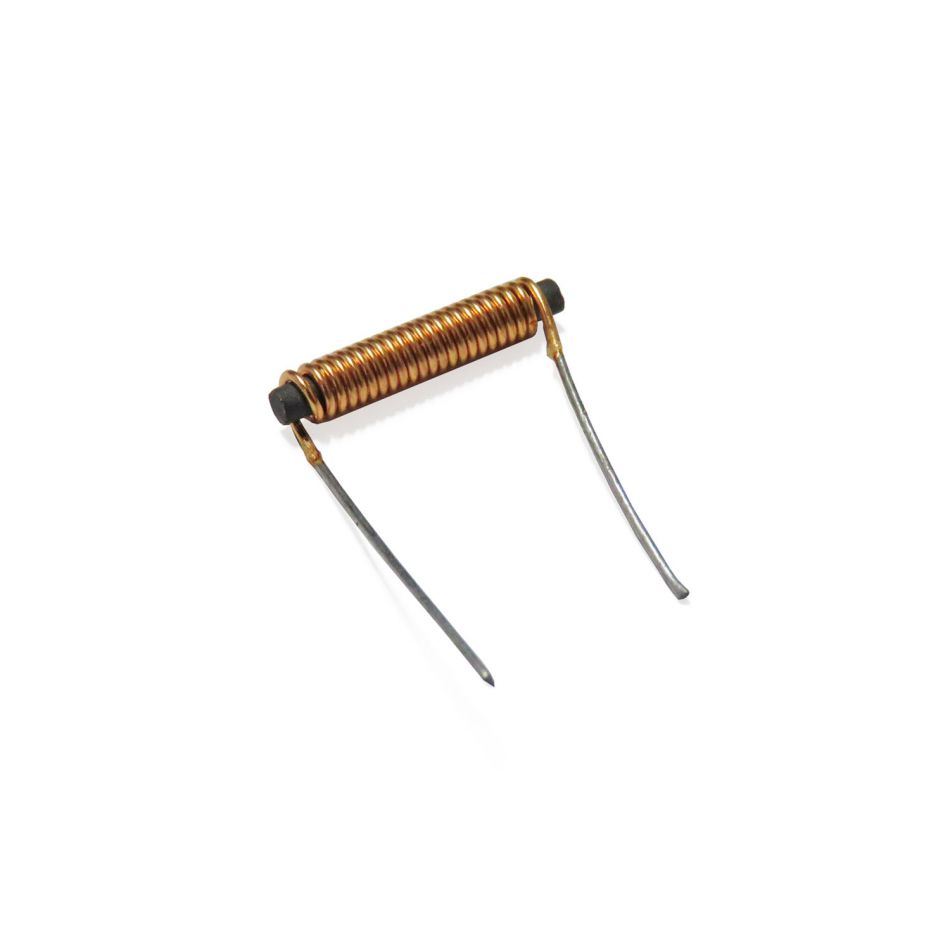

High current air wound coil, 0.6 µH, 5 A |
Conditions: | N- (The product is brand new but it comes from an old production) |
Inductance: | 0.6 µH |
Current: | 5 A |
Resistance: | 0.02 Ω |
Min. frequency: | 80 MHz |
Max. frequency: | 600 MHz |
Pitch: | 11 mm |
Termination style: | radial |
Order code: | BRC-1U |
---|---|
|

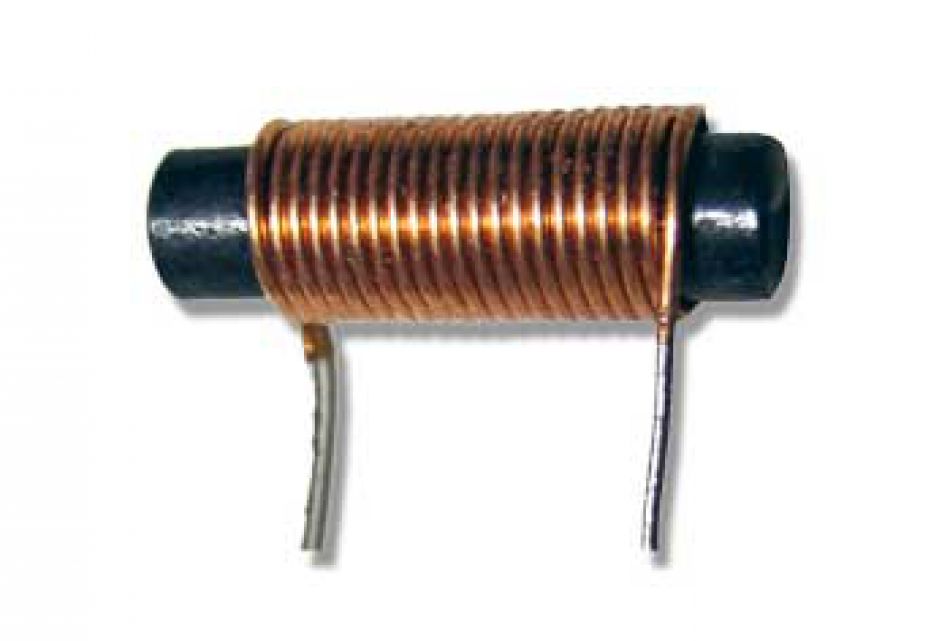

High current ferrite rod wound coil, 1 µH, 7 A |
Conditions: | N- (The product is brand new but it comes from an old production) |
Inductance: | 1 µH |
Current: | 7 A |
Resistance: | 0.02 Ω |
Min. frequency: | 100 MHz |
Max. frequency: | 500 MHz |
Pitch: | 21 mm |
Termination style: | radial |
Order code: | BRC-1U8 |
---|---|
|

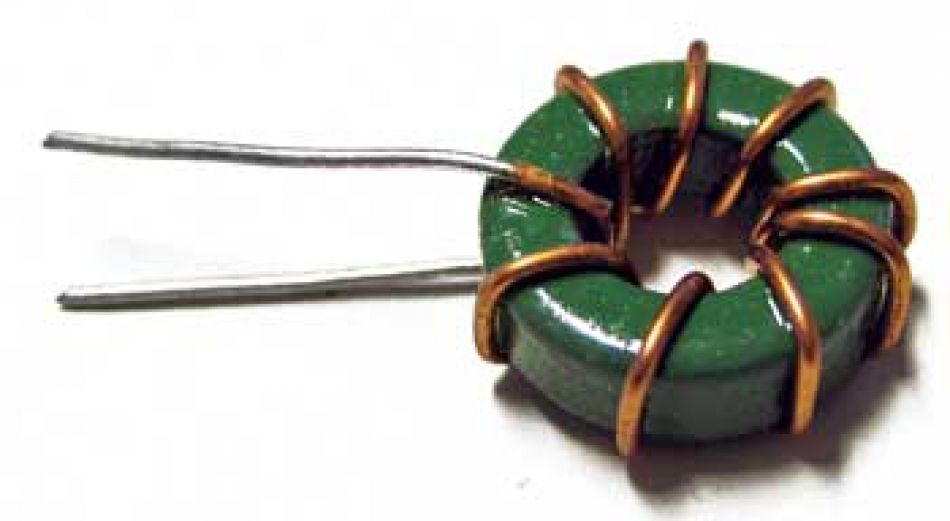

High current toroid wound coil, 1.8 µH, 10 A |
Conditions: | N- (The product is brand new but it comes from an old production) |
Inductance: | 1.8 µH |
Current: | 10 A |
Resistance: | 0.02 Ω |
Min. frequency: | 70 MHz |
Max. frequency: | 500 MHz |
Pitch: | 7 mm |
Termination style: | radial |
Order code: | BFC-3U3 |
---|---|
|
Decoupling choke, 3.3 µH, 2.5 A |
Inductance: | 3.3 µH |
Current: | 2.5 A |
Resistance: | 0.04 Ω |
Min. frequency: | 10 MHz |
Max. frequency: | 2 GHz |
Pitch: | 11 mm |
Termination style: | radial |
Order code: | BRC-4U7 |
---|---|
|

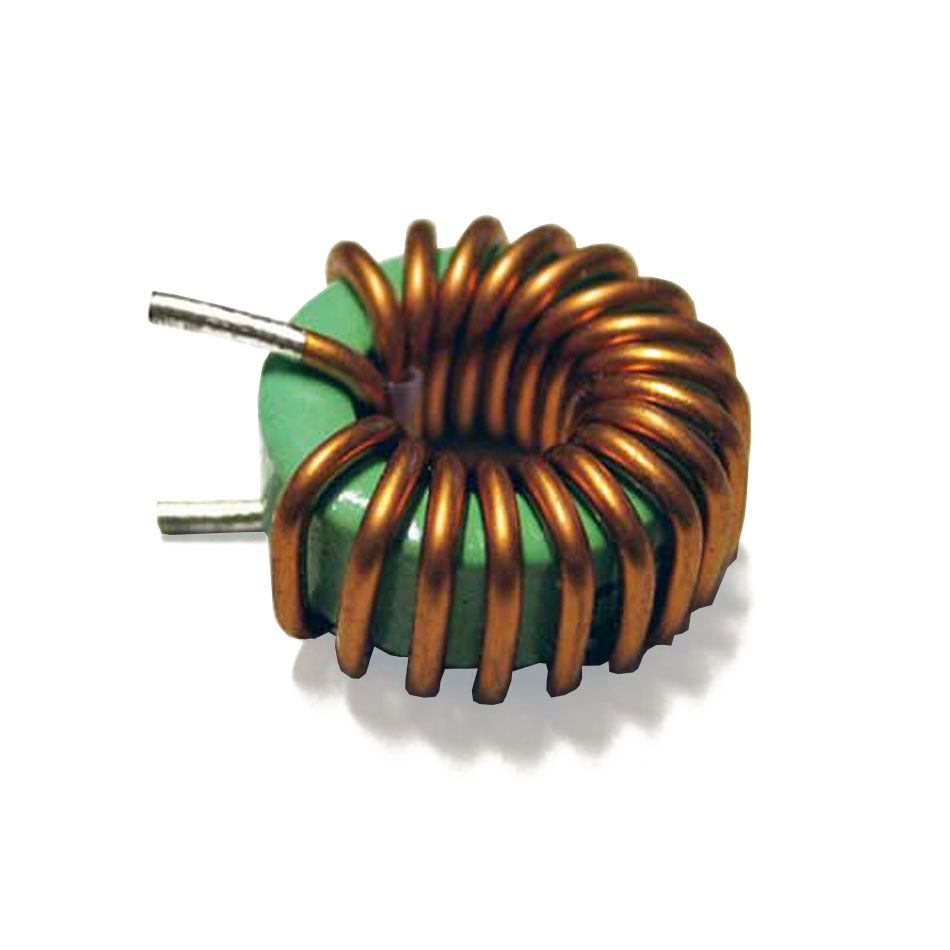

High current toroid wound coil, 4.7 µH, 10 A |
Conditions: | N- (The product is brand new but it comes from an old production) |
Inductance: | 4.7 µH |
Current: | 10 A |
Resistance: | 0.02 Ω |
Min. frequency: | 15 MHz |
Max. frequency: | 300 MHz |
Pitch: | 8 mm |
Termination style: | radial |
Order code: | BRC-5U1 |
---|---|
|
High current ferrite rod wound coil, 5.1 µH, 6.5 A |
Conditions: | N- (The product is brand new but it comes from an old production) |
Inductance: | 5.1 µH |
Current: | 6.5 A |
Resistance: | 0.04 Ω |
Min. frequency: | 6 MHz |
Max. frequency: | 400 MHz |
Pitch: | 10 mm |
Termination style: | radial |
Order code: | BFC-6U |
---|---|
|
Decoupling choke, 6 µH, 1 A |
Inductance: | 6 µH |
Current: | 1 A |
Resistance: | 0.06 Ω |
Min. frequency: | 10 MHz |
Max. frequency: | 2 GHz |
Pitch: | 7 mm |
Termination style: | radial |
Order code: | BRC-10U-A |
---|---|
|

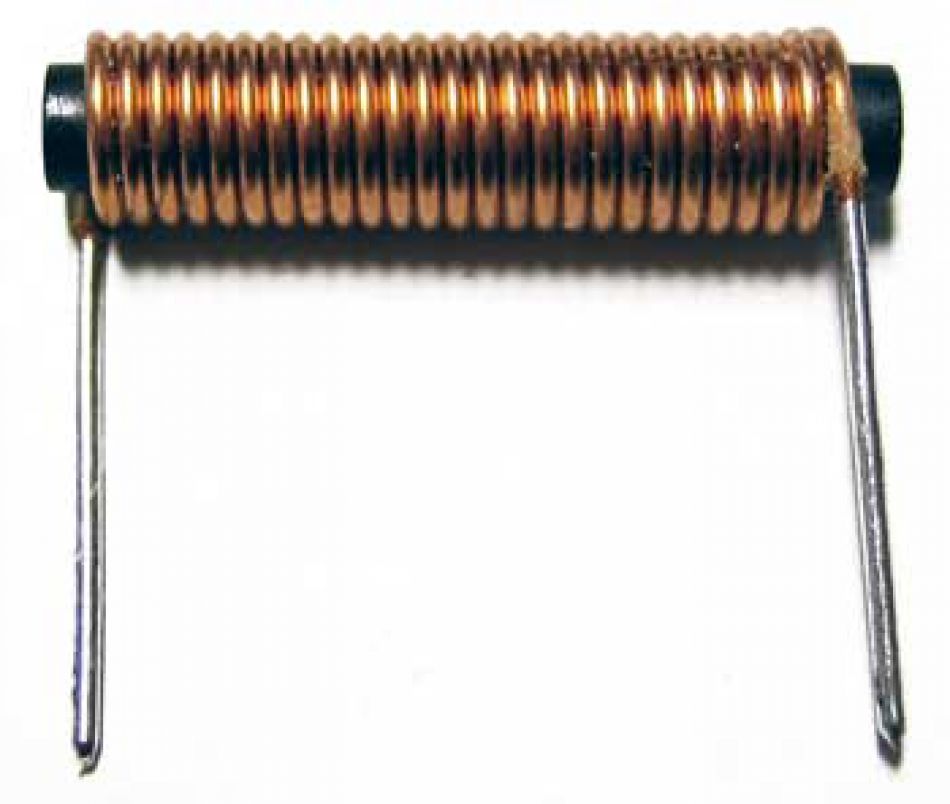

High current ferrite rod wound coil, 10 µH, 6.5 A |
Conditions: | N- (The product is brand new but it comes from an old production) |
Inductance: | 10 µH |
Current: | 6.5 A |
Resistance: | 0.05 Ω |
Min. frequency: | 3 MHz |
Max. frequency: | 500 MHz |
Pitch: | 22 mm |
Termination style: | radial |
Order code: | BRC-10U-B |
---|---|
|

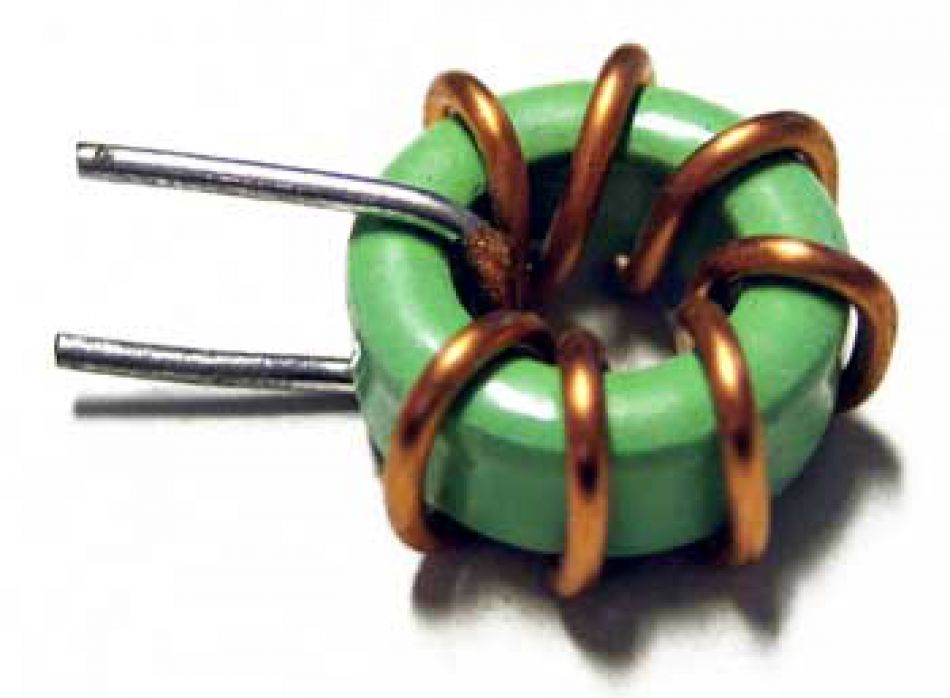

High current toroid wound coil, 10 µH, 10 A |
Conditions: | N- (The product is brand new but it comes from an old production) |
Inductance: | 10 µH |
Current: | 10 A |
Resistance: | 0.03 Ω |
Min. frequency: | 5 MHz |
Max. frequency: | 200 MHz |
Pitch: | 7 mm |
Termination style: | radial |
Order code: | BRC-10U-C |
---|---|
|

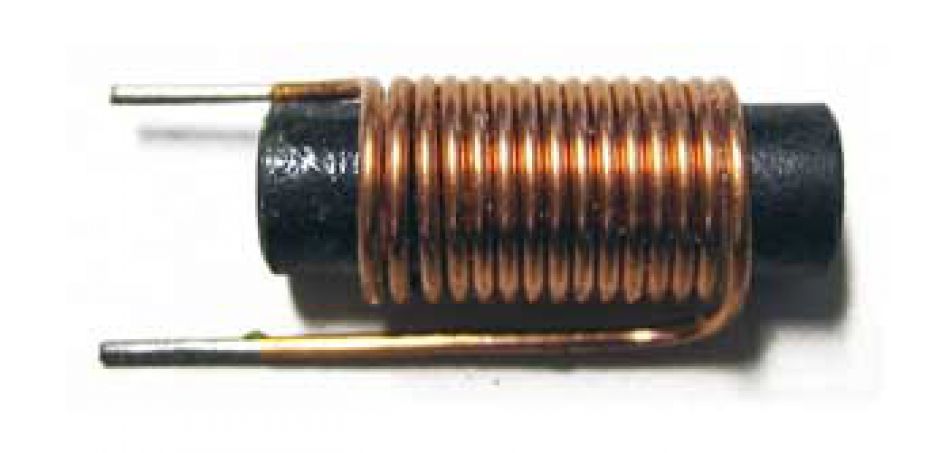

high current ferrite rod wound coil, 10 µH, 4 A |
Conditions: | N- (The product is brand new but it comes from an old production) |
Inductance: | 10 µH |
Current: | 4 A |
Resistance: | 0.05 Ω |
Min. frequency: | 3 MHz |
Max. frequency: | 400 MHz |
Pitch: | 19 mm |
Termination style: | radial |
Order code: | BFC-14U |
---|---|
|
Ferrite core wound axial coil, 14 µH, 0.7 A Siemens B82131A5701M000 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Inductance: | 14 µH |
Current: | 0.7 A |
Resistance: | 0.76 Ω |
Termination style: | axial |
Order code: | BRC-47U |
---|---|
|
High current toroid wound coil, 47 µH, 6.5 A |
Conditions: | N- (The product is brand new but it comes from an old production) |
Inductance: | 47 µH |
Current: | 6.5 A |
Resistance: | 0.03 Ω |
Min. frequency: | 1 MHz |
Max. frequency: | 80 MHz |
Pitch: | 9 mm |
Termination style: | radial |
Order code: | BRC-220U |
---|---|
|
High current toroid wound coil, 220 µH, 5 A |
Conditions: | N- (The product is brand new but it comes from an old production) |
Inductance: | 220 µH |
Current: | 5 A |
Resistance: | 0.03 Ω |
Min. frequency: | 300 kHz |
Max. frequency: | 200 MHz |
Pitch: | 6 mm |
Termination style: | radial |
