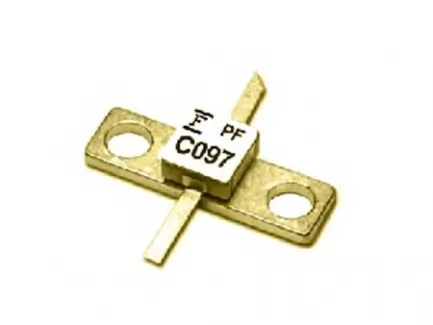

FSX52WF Fujitsu |
|
|---|---|
Medium-power GaAs-FET
FSX52WF
Order code: FSX52WF
Product conditions: N
|
|
-
GaAs-FET
-
12 V
-
-5 V
-
150 mA
-
10 dB
-
23 dBm
-
1.5 W
-
15 GHz
-
No
-
metal-ceramic hermetic
-
flange
| Title | Dimension | ||
|---|---|---|---|
| FSX52WF - Datasheet | 415.0 kB |
IDSS 150mA with VDS 3V, P1dB typical 23dBm at 8 GHz, hermetic ceramic package with flange
It can be a good alternative to the Mitsubishi MGF1801B for power of 200 mW at 10 GHz, it has a better dissipation due to its package with flange
- 23dBm 12dBG @ 8 GHz
- 22dBm 9dBG @ 10 GHz
- 21dBm 8dBG @ 12 GHz
- 20dBm 7dBG @ 15 GHz
-
JP
-
85412900
-
1.00 g
-
No
-
Not available
