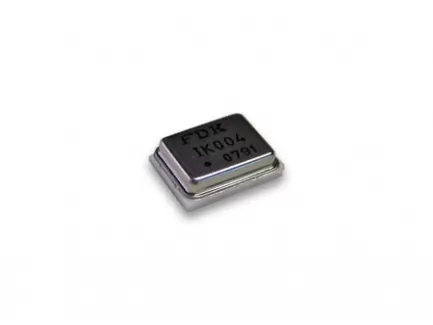

IK004
Brand: FDK
Manufacturer code: IK004
Order code: IK004

SMD VCO bandwidth from 990 to 1200 MHz

Product conditions: N-

SMD VCO bandwidth from 990 to 1200 MHz

TECHNICAL SPECIFICATIONS:

  • Frequency: from 990 to 1070 MHz with tuning voltage 0.5 - 6V
  • Frequency: from 990 to 1200 MHz with tuning voltage 0.5 - 15V
  • RF output level: 0.5 - 2mW
  • Tuning sensitivity: 15 MHz/V
  • Power supply: 4V @ 5mA, 8V @ 16mA
  • RF output impedance: 50Ω
  • Phase noise: -100 dBc/Hz @ 25 KHz
  • Outline dimensions: 8 x 10 mm, h 3 mm



  • 990 MHz
  • 1200 MHz
  • 0.2 V
  • 15 V
  • 8 V
  • 16 mA
  • 3 dBm
  • 15 MHz/V
  • PCB
  • SMD
  • pin
  Title Dimension
Datasheet 121.3 kB
  • 85416000
  • 2.00 g
  • No
  • Not available
Do login to add your comment
Availability
Stock
(immediate dispatch)
982 pcs
Cart
Minimum: 1 pc - Multiple: 1 pc
Unit Price:
$7.59
/ pc

Ext. price:
$7.59
(VAT tax not included)
Prices
Q.ty Unit Price Ext. price
1+ $7.59 $7.59
10+ $6.89 $68.93
25+ $6.27 $156.85
50+ $5.70 $284.94
100+ $5.18 $517.78
250+ $4.80 $1,199.48
500+ $4.44 $2,219.85
(VAT tax not included)
