Brand: Fair-Rite
Manufacturer code: 2644666611
Order code: VK200-F

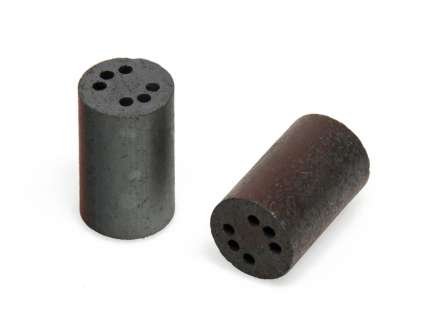

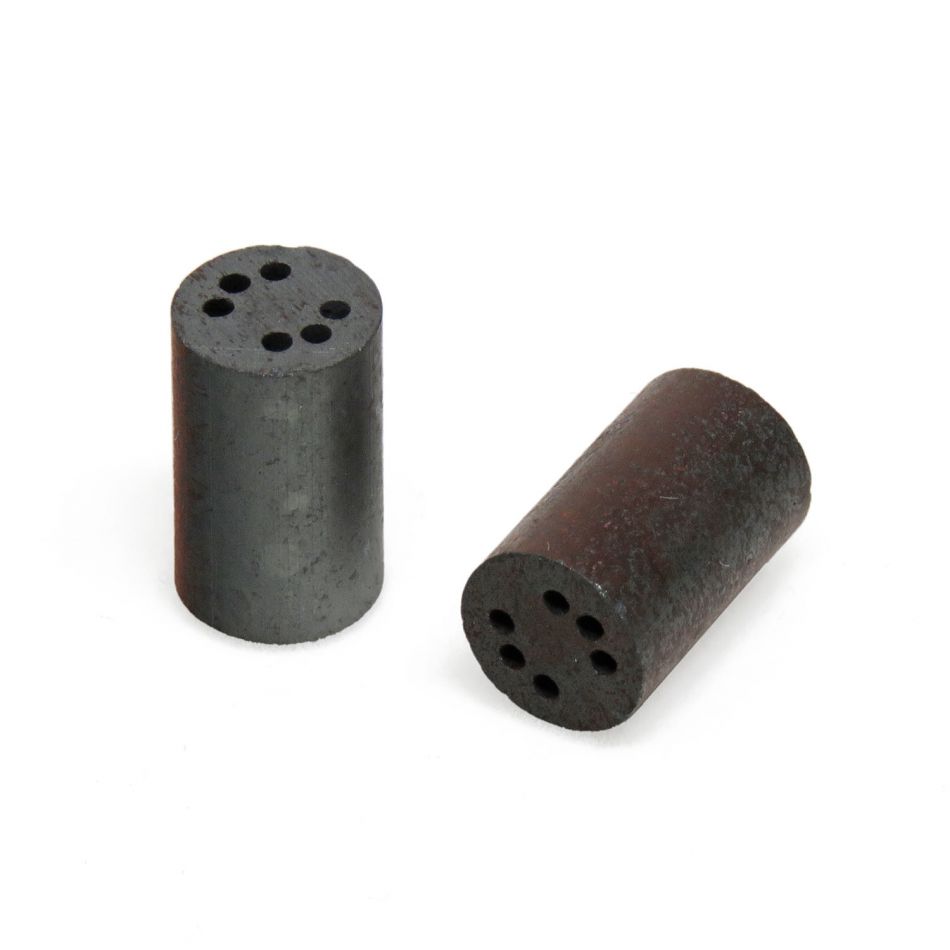

Six-hole ferrite core for construction of VK200 chokes, Ø6 x 10 mm

Product conditions: N
$0.30
/ pc
(VAT tax not included)
Minimum: 1 pc - Multiple: 1 pc
Availability
Stock
(immediate dispatch)
1896 pcs
Volume discounts
Q.ty Unit Price Ext. price
1+ $0.30 $0.30
10+ $0.26 $2.56
100+ $0.21 $21.34
250+ $0.17 $42.69
500+ $0.14 $69.37
1000+ $0.12 $117.39
(VAT tax not included)
Compliance
Country of origin CN
EU Tariff Code 85045000
Weight 1.10 g
RoHS Yes
REACH SVHC not present
  • 537 Ohm
  • 6 mm
  • 20 mm

Six-hole ferrite core for construction of VK200 chokes, Ø6 x 10 mm

SPECIFICATIONS
- Frequency range: 10 - 500 kHz
- Permeability µi: 1000
- Saturation flux density: 2700 Gsuss
- Residual flux density: 1000 Gauss
- Curie temperature: >130 °C
- Relative temperature coeff. (αµr): 4x10-6 °C (20 - 70 °C)
- Relative loss factor (tgδ/µi): 45x10-6 (0.5 MHz)
- Density: 4.8 g/cm3

VK200-F
/
  Title Dimension
Datasheet 588.4 kB
