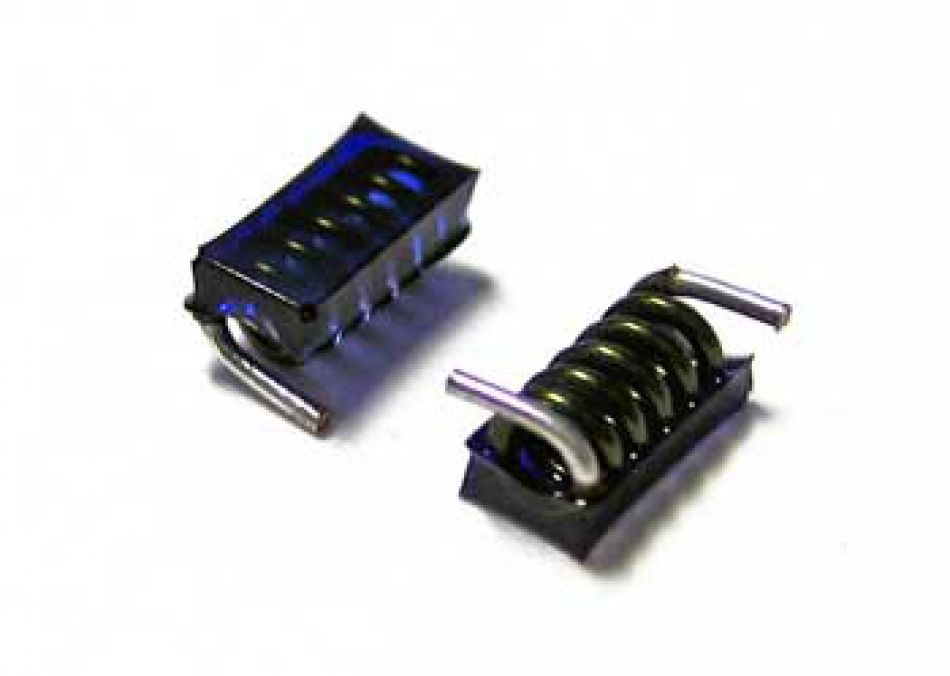

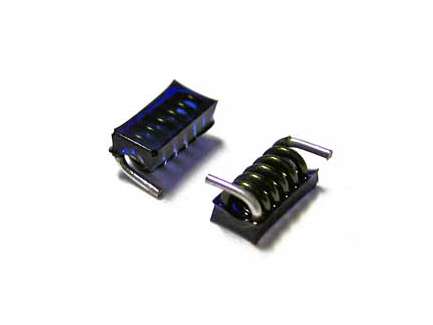

B06TJ - SMD inductor, 17.5nH, ±5.2%, 4A, 4.5mΩ, SRF 2.2GHz, 3.05x6.86mm

Name: SMD inductor, 17.5nH, ±5.2%, 4A, 4.5mΩ, SRF 2.2GHz, 3.05x6.86mm
Brand: Coilcraft
SKU: BCQ-17N5
Price: 0.73 EUR
Availability: InStock

Order code: BCQ-17N5Brand: CoilcraftManufacturer code: B06TJCategory: SMD inductors

Product conditions: N-

Available in stock

2669 Units ready for shipment

Quantity

Minimum: 1 pcs

Multiple: 1 pcs

$0.83 /pcs

$0.83

Prices

Q.ty Price each Extended price

1+ $0.83 $0.83

10+ $0.77 $7.65

50+ $0.71 $35.40

100+ $0.64 $63.94

250+ $0.59 $148.43

500+ $0.53 $262.61

1000+ $0.49 $490.97

Immediate availability

Dedicated technical support

Secure SSL payments

Specifications

Inductance value:
17.5 nH
Tolerance (±):
5.2
Current:
4 A
DC resistance:
4.5 mOhm
Q factor (min.):
100
Test frequency:
150 MHz
SRF (min.):
2.2 GHz
Package:
3.05 x 6.86 mm

Datasheet

PDF · 95.1 kB

View

Compliance

Country of origin:
US
EU Tariff Code:
85045000
Weight:
1.00 g
RoHS:
No
REACH:
Not available

Order code:	100B-18P-J500

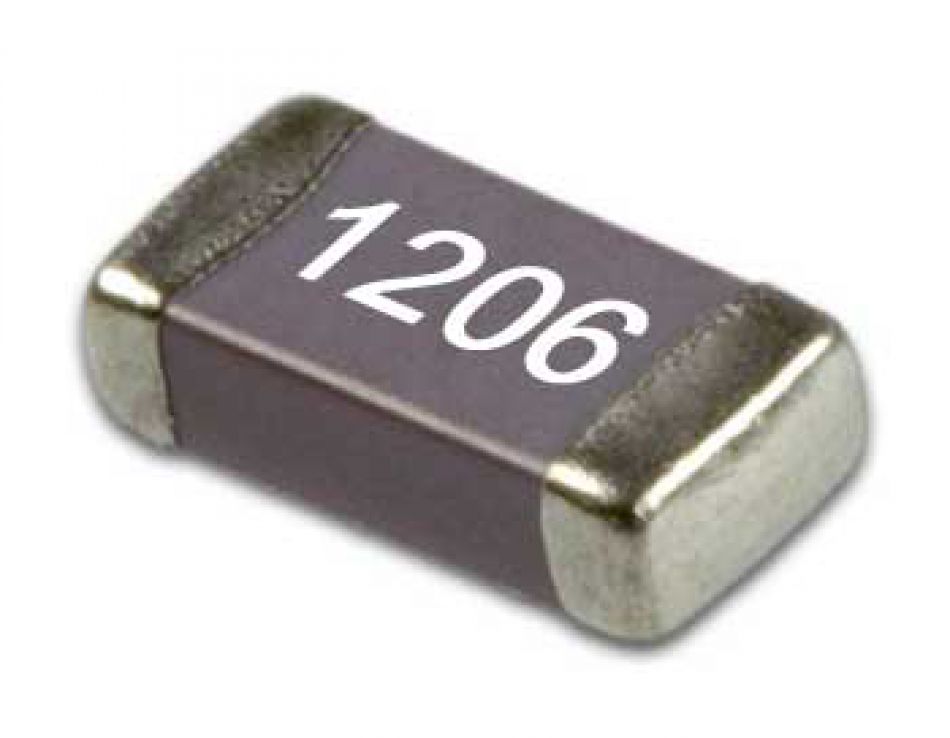

	HiQ SMD MLC capacitor, P90, 18pF, ±5%, 500V ATC / Kyocera AVX 100B180JT500XT
Conditions:	N (The product is brand new)
Series:	100B
Capacitance:	18 pF
Tolerance (code):	J
Tolerance (value) (±):	5%
Max. working voltage:	500 V
Tcc (ppm/ºC):	90 ±20 (P90)
Dielectric material:	porcelain
Package type:	B (1111)

Order code:	100B-18P-G500
	HiQ SMD MLC capacitor, P90, 18pF, ±2%, 500V ATC / Kyocera AVX 100B180GT500XT
Conditions:	N (The product is brand new)
Series:	100B
Capacitance:	18 pF
Tolerance (code):	G
Tolerance (value) (±):	2%
Max. working voltage:	500 V
Tcc (ppm/ºC):	90 ±20 (P90)
Dielectric material:	porcelain
Package type:	B (1111)
