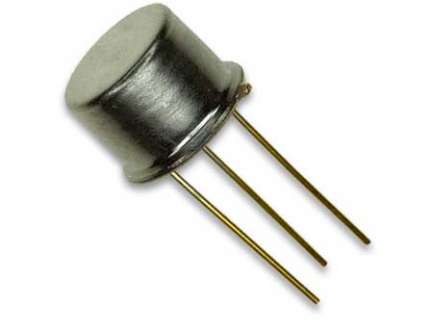

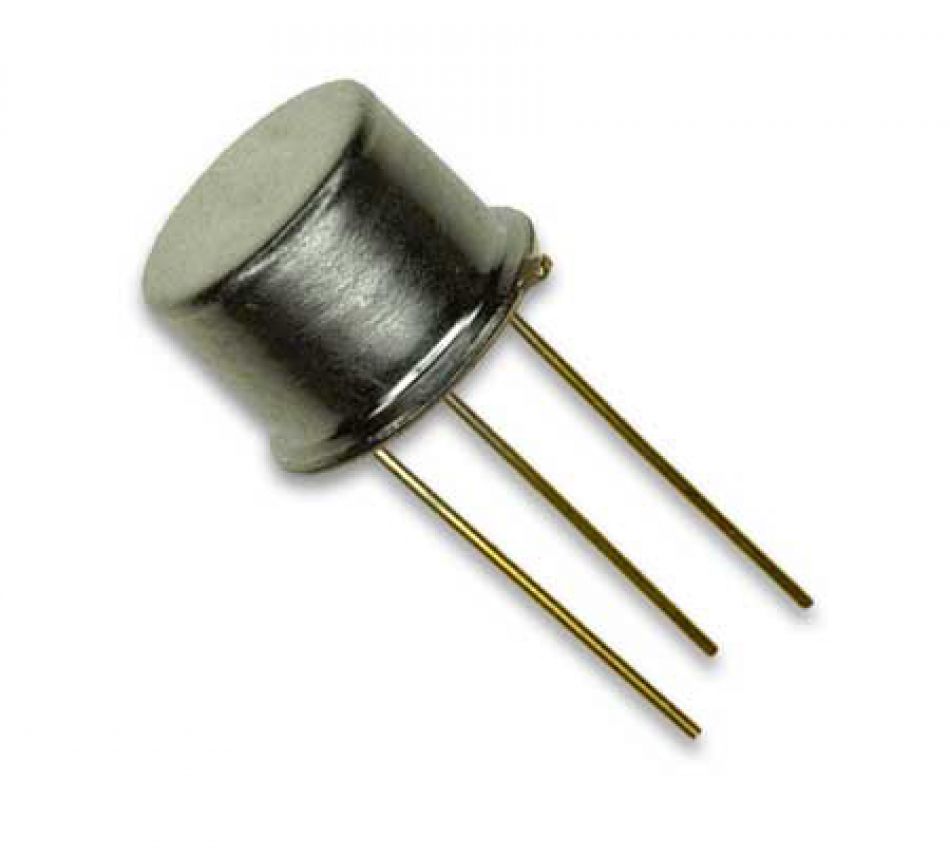

Central Semiconductor Corp. 2N5109 Silicon bipolar NPN RF transistor, TO-39

Central Semiconductor Corp. 2N5109 Silicon bipolar NPN RF transistor, TO-39

2N5109 Central Semiconductor Corp.
Silicon bipolar NPN RF transistor, TO-39 Brand: Central Semiconductor Corp. Manufacturer code: 2N5109 Order code: 2N5109 Category: Transistors - BJT Product conditions: N (0 comments)

Specifications

Polarity:
NPN
Collector-emitter voltage (Vce max):
20 V
Transition frequency (f_T):
1.2 GHz
Collector current (Ic max):
400 mA
Dissipated power (Ptot):
1 W
Mounting:
thru-hole
Package:
TO-39
Package type :
metallic

Documents (1)

	Title	Dimension
	2N5109 - Datasheet	488.8 kB

Additional info

High dynamic +32dBm IP3, up to +40dBm in quad configuration th low noise figure 3dB, mixer with IP3 up to +40dBm.

(Note: 2N5109 can replace BFR95 and BFW16A)

CLASS A:

Frequency Bands: I, II, III
Class A output level: 54dBmV, I_C 50mA
Cross Modulation: >50dB

Compliance

Country of origin:
MY
EU Tariff Code:
85412900
Weight:
0.40 g
RoHS:
Yes
REACH:
SVHC not present

Comments (0)

Do login to add your comment

Availability
Stock (immediate dispatch)	48 pcs

Cart
Minimum: 1 pc - Multiple: 1 pc Unit Price: $6.11 / pc Ext. price: $6.11 (VAT tax not included)

Prices
Q.ty	Unit Price	Ext. price
1+	$6.11	$6.11
10+	$5.74	$57.38
30+	$5.43	$162.94
100+	$5.11	$511.39
(VAT tax not included)
