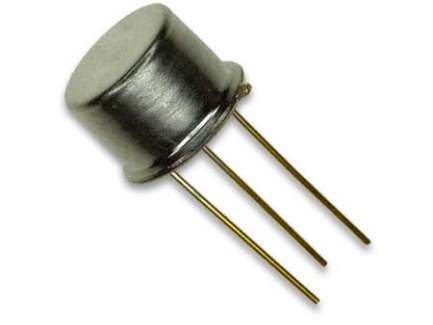

Silicon bipolar NPN RF transistor, TO-39

Name: Silicon bipolar NPN RF transistor, TO-39
Brand: Central Semiconductor Corp.
SKU: 2N4427
Price: 2.76 EUR
Availability: InStock
Rating: 5 (2 reviews)

Product conditions: N

$3.67

/ pc

(VAT tax not included)

Minimum: 1 pc - Multiple: 1 pc

Availability
Stock (immediate dispatch)	174 pcs

Volume discounts
Q.ty	Unit Price	Ext. price
1+	$3.67	$3.67
10+	$3.38	$33.79
50+	$3.15	$157.34
100+	$2.91	$291.46
(VAT tax not included)

Compliance
Country of origin	MY
EU Tariff Code	85412900
Weight	0.90 g
RoHS	Yes
REACH	SVHC not present

Polarity:
NPN
Collector-emitter voltage (Vce max):
20 V
Transition frequency (f_T):
500 MHz
Collector current (Ic max):
400 mA
Dissipated power (Ptot):
1 W
Mounting:
thru-hole
Package:
TO-39
Package type :
metallic

Silicon bipolar NPN RF transistor, TO-39

For applications in HF and VHF as small power amplifier, A class high dynamic or power oscillator, 1.3W 15dBG in HF and 60 MHz, 1W 12 dBG in VHF

Order code: 2N4427

Category: Transistors - BJT

	Title	Dimension
	Datasheet	458.7 kB

ven.gua

18/02/2016

Venditore affidabile, al top. Il componente è quello richiesto.

Luc Bormans

12/03/2015

Thank You.
