Brand: Analog Devices
Manufacturer code: ADF4360-3BCP
Order code: ADF4360-3BCP

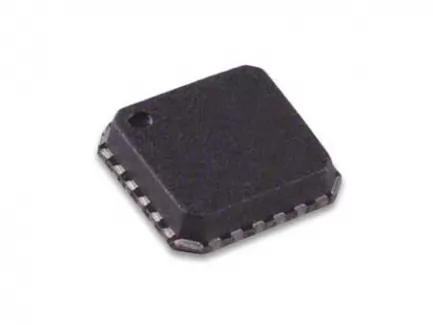

PLL synthesizer and VCO integrated circuit, SMD 24-Lead LFCSP/VQ

Product conditions: N
$4.69
/ pc
(VAT tax not included)
Minimum: 1 pc - Multiple: 1 pc
Stock
130 pcs ready to ship
Volume discounts
Quantity Unit Price You save
1+ $4.69 -
4+ $4.25 10%
10+ $3.86 18%
30+ $3.47 26%
100+ $3.19 32%
(VAT tax not included)
Compliance
EU Tariff Code 85423390
Weight 0.50 g
RoHS No
REACH Not available
  • PLL Synthesizer / VCO
  • 3 V
  • 3.6 V
  • 24-Lead LFCSP/VQ
  • SMD

PLL synthesizer and VCO integrated circuit, SMD 24-Lead LFCSP/VQ

Programmable dual-modulus prescaler 8/9, 16/17, 32/33, integrated VCO output 1600 - 1950 MHz VCO, in addition, there is a divide-by-2 option available to bring the RF output to 800 - 975 MHz, due to a narrow band all VCO components are already inside the IC, the VCO RF output is programmable by steps of 3dB, 3-wires serial interface, see also the VHF Communications magazine 4-2010 article about this component

ADF4360-3BCP
/
  Title Dimension
Datasheet 494.8 kB
