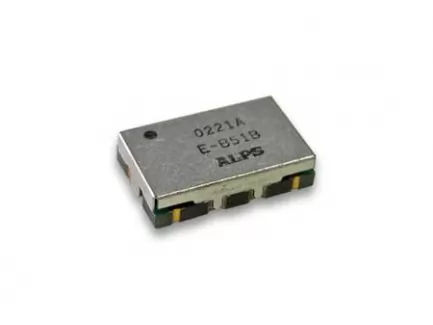

E-B51B
Brand: Alps
Manufacturer code: E-B51B
Order code: E-B51B

1000 - 1100 MHz VCO oscillator

Product conditions: N-

1000 - 1100 MHz VCO oscillator

TECHNICAL SPECIFICATIONS:

  • Frequency: from 1000 to 1060 MHz with tuning voltage 0 - 8V
  • Frequency: from 1000 to 1100 MHz with tuning voltage 0 - 12V
  • RF output level: 1mW
  • Tuning sensitivity: 10 - 15 MHz/V
  • Power supply: 7V @ 15mA, 9V @ 21mA
  • RF output impedance: 50Ω
  • Outline dimensions: 9.6 x 15.3 mm, h 3.7 mm



  • 1000 MHz
  • 1100 MHz
  • 0 V
  • 12 V
  • 9 V
  • 21 mA
  • 0 dBm
  • 12.5 MHz/V
  • PCB
  • SMD
  • pin
  Title Dimension
Datasheet 150.6 kB
  • 85416000
  • 2.00 g
  • No
  • Not available
Do login to add your comment
Availability
Stock
(immediate dispatch)
23 pcs
Cart
Minimum: 1 pc - Multiple: 1 pc
Unit Price:
$8.67
/ pc

Ext. price:
$8.67
(VAT tax not included)
Prices
Q.ty Unit Price Ext. price
1+ $8.67 $8.67
10+ $7.88 $78.81
(VAT tax not included)
