Brand: Agilent Technologies
Manufacturer code: HPMX-2006
Order code: HPMX-2006

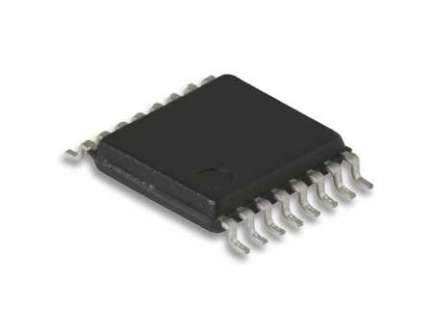

0.8 - 2.5 GHz upconverter/amplifier, SSOP-16 SMD package

Product conditions: N-
$3.44
/ pc
(VAT tax not included)
Minimum: 1 pc - Multiple: 1 pc
Availability
Stock
(immediate dispatch)
2550 pcs
Volume discounts
Quantity Unit Price You save
1+ $3.44 -
10+ $3.09 10%
50+ $2.93 15%
100+ $2.76 20%
250+ $2.59 25%
500+ $2.42 30%
(VAT tax not included)
Compliance
Country of origin MY
EU Tariff Code 85423990
Weight 0.60 g
RoHS No
REACH Not available

0.8 - 2.5 GHz upconverter/amplifier, SSOP-16 SMD package

IF input dc - 1 GHz, RF output 800 - 2500 MHz (max 3 GHz) it is an upconverter for example it can be used as 2 GHz transmitter with modulation on IF port or as spectrum analyzers with dc-1 GHz RF input and first IF > 1GHz, with internal power amplifier from +2 to +9dBm, for the LO signal (F out - F in) are enough -3dBm (0.5mW) because it has a LO internal amplifier.


2 GHz upconverter

HPMX-2006
/
Active mixers
  Title Dimension
Datasheet 67.6 kB
