Brand: Sagami
Manufacturer code: 970974544
Order code: BV-544

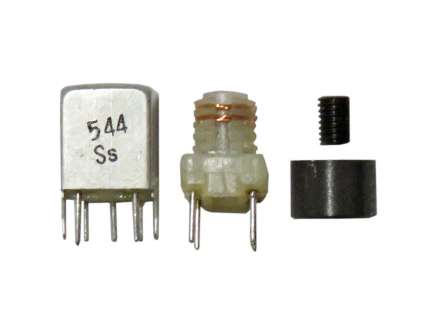

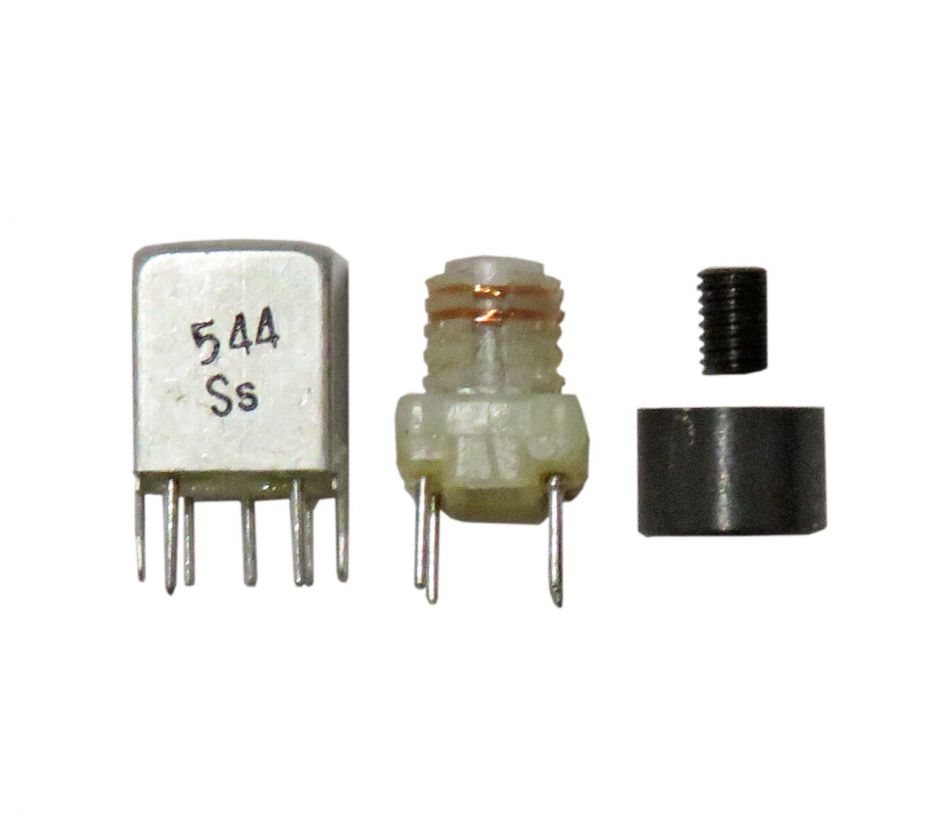

Tunable RF coil

Product conditions: N
$0.90
/ pc
(VAT tax not included)
Minimum: 1 pc - Multiple: 1 pc
Availability
Stock
(immediate dispatch)
24814 pcs
Volume discounts
Quantity Unit Price You save
1+ $0.90 -
4+ $0.84 6%
10+ $0.79 12%
30+ $0.74 18%
100+ $0.69 24%
250+ $0.63 29%
500+ $0.58 35%
1000+ $0.53 41%
2000+ $0.48 47%
4000+ $0.42 53%
8000+ $0.37 59%
15000+ $0.32 65%
(VAT tax not included)
Compliance
Country of origin CN
EU Tariff Code 85045000
Weight 2.00 g
RoHS Yes
REACH SVHC not present
  • 2.5 µH
  • 3.2 µH
  • 16 turns
  • 40
  • 10.7 MHz
  • inductor
  • thru-hole
  • 5 mm
  • 7 mm
  • Yes

Tunable RF coil

Q > 40 (2.9 µH at 10.7 MHz)

Equivalent circuit

If used at 10.7 MHz the resonance is obtained with a parallel capacitor of about 82 pF.

BV-544
/
Tunable RF coils
No document found
