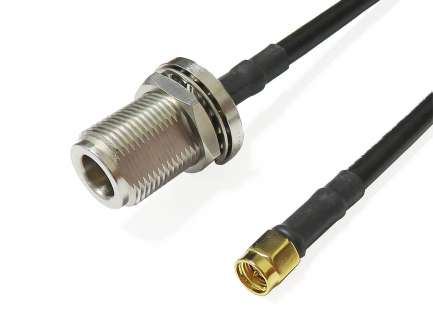

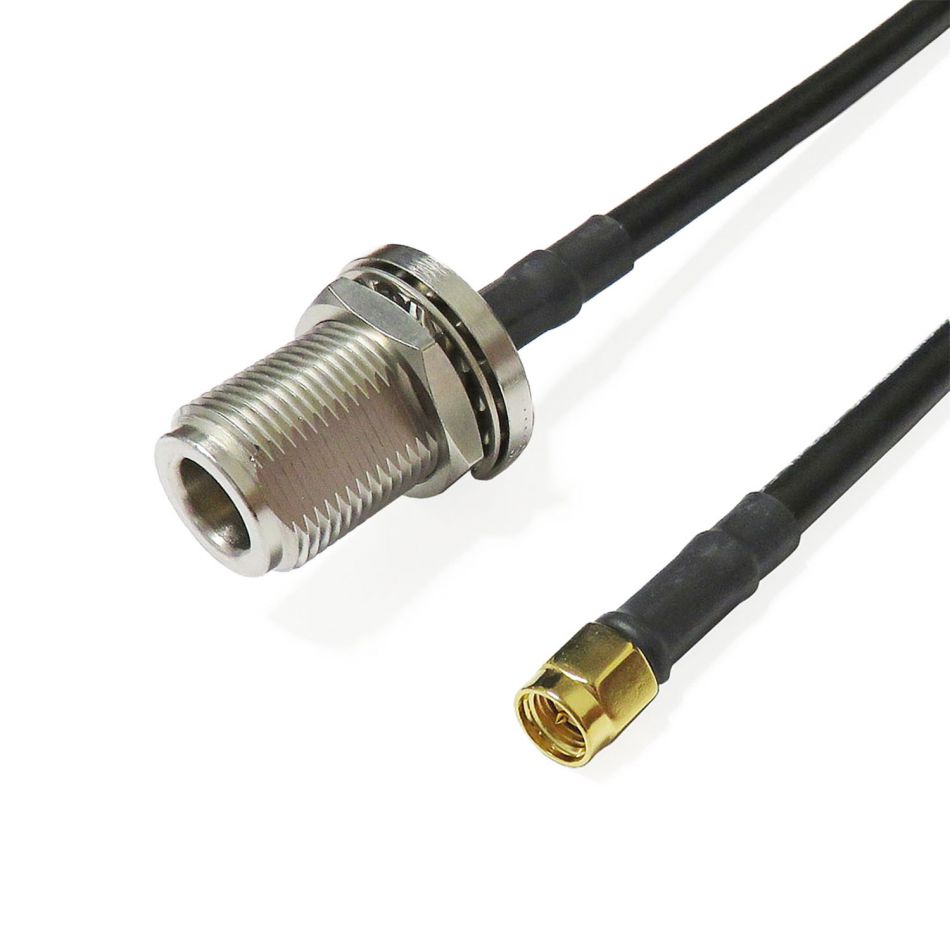

QAXIAL N15S02-12-01500 Coaxial cable assembly, N female/SMA male, RG223, 1.5 m

N15S02-12-01500 QAXIAL
Coaxial cable assembly, N female/SMA male, RG223, 1.5 m Brand: QAXIAL Manufacturer code: N15S02-12-01500 Order code: CIP-744 Category: Coaxial cable assemblies Product conditions: N (0 comments) Other available options Length CIP-740 - 25cm CIP-741 - 50cm CIP-742 - 75cm CIP-743 - 1m CIP-745 - 2m CIP-746 - 3m

Specifications

Maximum frequency:
6 GHz
Impedance :
50 Ohm
Cable type :
RG223
Dielectric:
PE
Connectors type:
N > SMA
Connectors gender:
female > male
Length:
1.5 m
Mounting:
bulkhead
Application:
general purpose
high shielding
Flexibility:
flexible

Documents (1)

	Title	Dimension
	N15S02-12-01500 - Datasheet	384.0 kB

Additional info

This product can be supplied with custom lenght >> contact us << for personalized pricing.

These cable assemblies are made with RG223/U flexible cable with outer diameter 5.4 mm, the main features are: a low insertion loss, the double shield that guarantees a good level of shielding even at high frequencies and a silver plated center conductor to reduce the attenuation. These cable assemblies are a better performing alternative to the cheaper RG58.
