SMA coaxial attenuator, 10 dB, 30 W, 12.4 GHz

Order code:	ATFS-12G-10C
	SMA coaxial attenuator, 10 dB, 30 W, 12.4 GHz QAXIAL ATS-1030-12
Conditions:	N (The product is brand new)
Connector type:	SMA
Gender:	male / female
Impedance:	50 Ohm
Attenuation:	10 dB
Maximum frequency:	12.4 GHz
Power :	30 W
Body material:	stainless steel / aluminium
Body finishing:	passivated / anodized

Go to product page ATFS-12G-10C

Microwave cable assembly, 40 GHz, 2x 2.92mm male, LLPSP141, 50 cm

Order code:	CIS-404
	Microwave cable assembly, 40 GHz, 2x 2.92mm male, LLPSP141, 50 cm QAXIAL K02K02-92-00500
Conditions:	N (The product is brand new)
Maximum frequency:	40 GHz
Impedance :	50 Ohm
Cable type :	LLPSP141
Dielectric:	Low density PTFE
Connectors type:	2.92mm > 2.92mm
Connectors gender:	male > male
Length:	50 cm
Application:	amplitude stability, high frequency, high shielding, high temperature, low loss, phase stability
Flexibility:	flexible

Go to product page CIS-404

Clamp HN male coaxial connector for RG213 / RG214 / RG393, high voltage

Order code:	HN-01
	Clamp HN male coaxial connector for RG213 / RG214 / RG393, high voltage QAXIAL HN02-07G-01
Conditions:	N (The product is brand new)
Connector series:	HN
Gender:	male
Impedance:	50 Ohm
Maximum frequency:	3 GHz
Geometry:	straight
Mounting:	free hanging
Termination style:	cable - clamp
Coupling:	threaded
Cable type:	RG8, RG213, RG214, RG393
Insulator:	PTFE
Body material:	brass
Body finishing:	nickel

Go to product page HN-01

Coaxial termination, N male, 50Ω, 25W, 6GHz

Order code:	TC-N-12
	Coaxial termination, N male, 50Ω, 25W, 6GHz QAXIAL DLN-5025-06
Conditions:	N (The product is brand new)
Impedance:	50 Ohm
Maximum frequency:	6 GHz
Connector:	N
Gender:	male
Power:	25 W
Body material:	brass
Body finishing:	ternary alloy
Insulator:	PTFE

Go to product page TC-N-12

PC 7 to 7/16 DIN female coaxial adapter

Order code:	ADA-81
	PC 7 to 7/16 DIN female coaxial adapter Huber+Suhner 33_PC7-716A-50-1/--_NE
Conditions:	N- (The product is brand new but it comes from an old production)
Adapter Series:	7/16 DIN > PC 7
Adapter Type:	female > sexless
Impedance :	50 Ohm
Maximum frequency:	7.5 GHz
Geometry:	straight
Mounting:	free hanging
Insulator:	Air Dielectric
Body material:	ottone
Body finishing:	SUCOPLATE®

Go to product page ADA-81

Power amplifier MMIC, ceramic hermetic package

Order code:	EMM5832VU
	Power amplifier MMIC, ceramic hermetic package Eudyna EMM5832VU
Conditions:	N (The product is brand new)
Min. frequency:	21.2 GHz
Max. frequency:	26.5 GHz
Operating voltage:	6 V
Operating current:	800 mA
Gain (max.):	23 dB
Output power (max.):	31 dBm
Package:	6.7x8.3 mm ceramic
Mounting:	SMD

Go to product page EMM5832VU

Sub-harmonic UP/DOWN mixer, +15 dBm, 17.6 - 24.4 GHz

Order code:	MIXER-23G-A
	Sub-harmonic UP/DOWN mixer, +15 dBm, 17.6 - 24.4 GHz Alcatel 487264419F
Conditions:	N- (The product is brand new but it comes from an old production)
RF frequency:	17.6 - 24.4 GHz
LO frequency :	8.8 - 12.6 GHz
IF frequency:	dc - 2.5 GHz
LO power level:	15 dBm
Max. conversion loss :	16 dB
Connectors:	SMA female / 2.92mm (K) female
Mixer type:	double-balanced

Go to product page MIXER-23G-A

RF mixer, 10 - 3000 MHz, 17 dBm, plug-in

Order code:	SRA-11H
	RF mixer, 10 - 3000 MHz, 17 dBm, plug-in Mini-Circuits SRA-11H
Conditions:	N- (The product is brand new but it comes from an old production)
RF frequency:	10 - 3000 MHz
LO frequency:	10 - 3000 MHz
IF frequency:	10 - 1000 MHz
LO power level:	17 dBm
Max. conversion loss:	12 dB
Operating temperature (°C):	-55 / +100
Mounting style:	plug-in
Mixer type:	triple-balanced

Go to product page SRA-11H

Jumper cable assembly, 2x 4.3-10 male, CELLFLEX® SCF12-50J, 2 m, IP68

Order code:	43M43MS12-0200FFP
	Jumper cable assembly, 2x 4.3-10 male, CELLFLEX® SCF12-50J, 2 m, IP68 RFS 43M43MS12-0200FFP
Conditions:	N (The product is brand new)
Maximum frequency:	6 GHz
Impedance :	50 Ohm
Cable type :	CELLFLEX® SCF-50J
Dielectric:	foam PE
Connectors type:	4.3-10 > 4.3-10
Connectors gender:	male > male
Length:	2 m
Application:	high power, high shielding, low loss, low PIM
Flexibility:	flexible

Go to product page 43M43MS12-0200FFP

Jumper cable assembly, 7/16 DIN male / female, CELLFLEX® SCF12-50J, 2 m, IP68

Order code:	7M7FS12-0200FFP
	Jumper cable assembly, 7/16 DIN male / female, CELLFLEX® SCF12-50J, 2 m, IP68 RFS 7M7FS12-0200FFP
Conditions:	N (The product is brand new)
Maximum frequency:	6 GHz
Impedance :	50 Ohm
Cable type :	CELLFLEX® SCF-50J
Dielectric:	foam PE
Connectors type:	7/16 DIN > 7/16 DIN
Connectors gender:	male > female
Length:	2 m
Application:	high power, high shielding, low loss, low PIM
Flexibility:	flexible

Go to product page 7M7FS12-0200FFP

N female to N female coaxial adapter, low PIM, IP68

Order code:	ADA-140
	N female to N female coaxial adapter, low PIM, IP68 RFS NF-NF
Conditions:	N (The product is brand new)
Adapter Series:	N > N
Adapter Type:	female > female
Impedance :	50 Ohm
Maximum frequency:	6 GHz
Geometry:	straight
Mounting:	free hanging
Insulator:	PTFE
Body material:	brass
Body finishing:	ternary alloy
IP rating:	IP68

Go to product page ADA-140

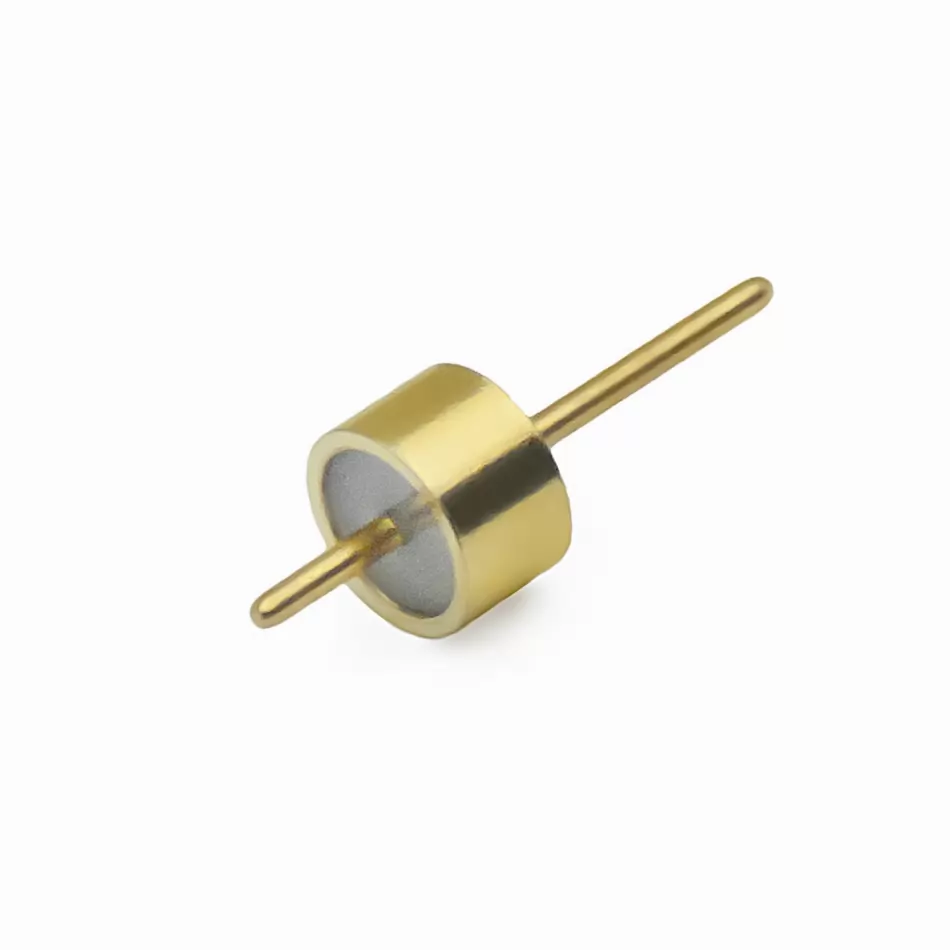

Hermetic glass seal, 40 GHz, 0.38 mm

Order code:	GS-01
	Hermetic glass seal, 40 GHz, 0.38 mm QAXIAL GS038-40G-01
Conditions:	N (The product is brand new)
Max. frequency:	40 GHz
Pin diameter:	0.38 mm
Body diameter:	2.5 mm

Go to product page GS-01
