AD8302ARU Analog Devices |
|
|---|---|

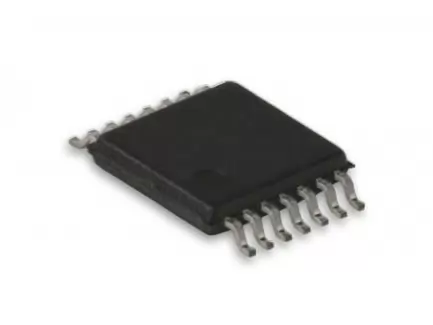

Logarithmic amplifier and phase detector integrated circuit, TSSOP-14 SMD package
AD8302ARU
Order code: AD8302ARU
Product conditions: N-
|
|
| Title | Dimension | ||
|---|---|---|---|
| AD8302ARU - Datasheet | 523.9 kB |
This IC is different from other logarithmic circuits, it is a double logarithmic detector capable to measure the relationship between two signals in amplitude and in phase up to 2.7 GHz with 60dB of dynamic range, amplitude 30mV/dB linearity < 0.5dB, phase 10mV/dB linearity < 1°, it is a small vector-network analyzer, many possible applications.
-
85423390
-
0.40 g
-
No
-
Not available
