Brand: Analog Devices
Manufacturer code: AD8302ARU
Order code: AD8302ARU

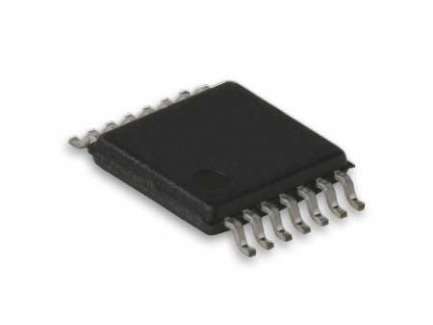

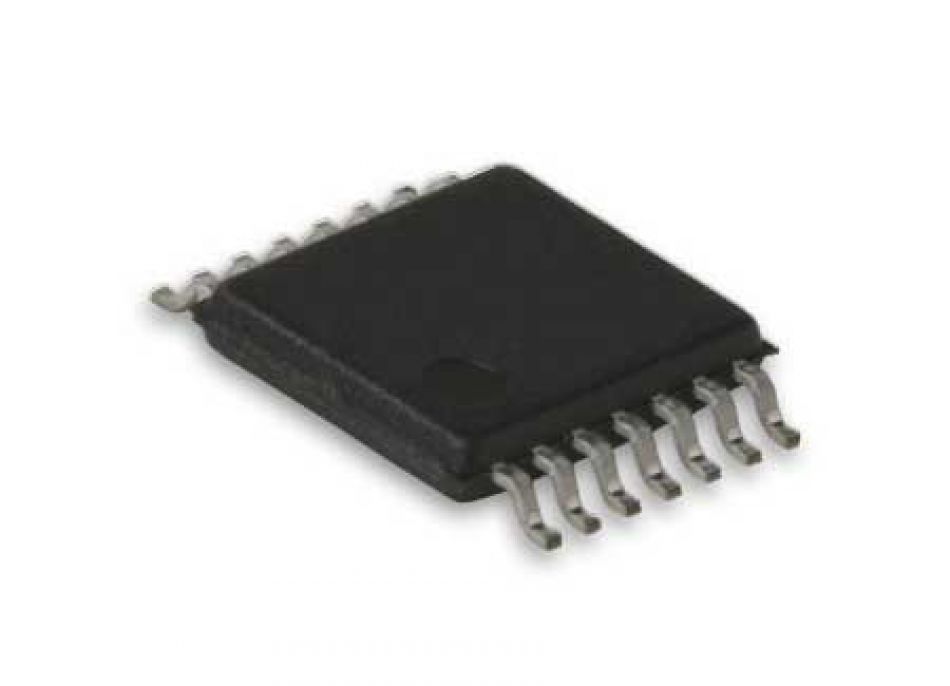

Logarithmic amplifier and phase detector integrated circuit, TSSOP-14 SMD package

Product conditions: N-
$20.16
/ pc
(VAT tax not included)
Minimum: 1 pc - Multiple: 1 pc
Availability
Stock
(immediate dispatch)
58 pcs
Volume discounts
Q.ty Unit Price Ext. price
1+ $20.16 $20.16
5+ $18.41 $92.03
10+ $17.53 $175.30
25+ $16.65 $416.33
50+ $15.78 $788.83
(VAT tax not included)
Compliance
EU Tariff Code 85423390
Weight 0.40 g
RoHS No
REACH Not available

Logarithmic amplifier and phase detector integrated circuit, TSSOP-14 SMD package

This IC is different from other logarithmic circuits, it is a double logarithmic detector capable to measure the relationship between two signals in amplitude and in phase up to 2.7 GHz with 60dB of dynamic range, amplitude 30mV/dB linearity < 0.5dB, phase 10mV/dB linearity < 1°, it is a small vector-network analyzer, many possible applications.

AD8302ARU
/
  Title Dimension
Datasheet 523.9 kB
