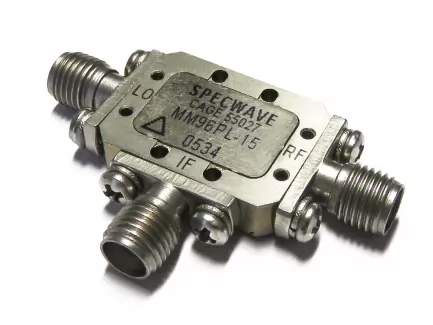

MM96PL-15 Spectrum Microwave |
|
|---|---|
RF coaxial mixer, SMA female connectors
MM96PL-15
Order code: MM96PL-15
Product conditions: N-
|
|
-
2 - 18 GHz
-
2 - 18 GHz
-
2 - 8 GHz
-
13 dBm
-
10.5 dB
-
-55 / +100
-
SMA female
-
triple-balanced
| Title | Dimension | ||
|---|---|---|---|
| MM96PL-15 - Datasheet | 508.5 kB |
Triple-balanced coaxial passive mixer, SMA female connectors
SPECIFICATIONS:
- LO/RF: 2-18 GHz
- IF: 2-8 GHz
- LO power level: +13dBm
- 1dB compression level: +8dBm
- Impedance: 50Ω
-
85437090
-
30.00 g
-
No
-
Not available
