FRT-05, PTFE insulated silver plated copper wire

+39 0362 284992

Contact us

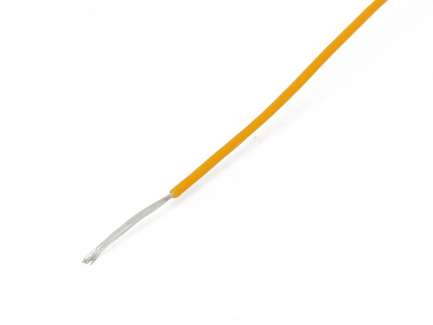

PTFE insulated silver plated copper wire

PTFE insulated silver plated copper wire

FRT-05
PTFE insulated silver plated copper wire Order code: FRT-05 Category: Wires for coil and ferrite windings Product conditions: N (0 comments)

Specifications

Conductor diameter:
0.4 mm
AWG:
27
Material & finishing:
silver plated copper (CuAg)
Conductor type:
stranded (9x0.12mm)
External jacket:
PTFE
External jacket diameter:
1.1 mm
Jacket max. operating temperature:
260 °C
Colour :
yellow

Documents (0)

No document found

Compliance

EU Tariff Code:
85441190
Weight:
4.20 g
RoHS:
No
REACH:
Not available

Comments (0)

Do login to add your comment

Availability
Stock (immediate dispatch)	123 mts

Cart
Minimum: 5 mts - Multiple: 1 mt Unit Price: €0,92 / mt Ext. price: €4,60 (VAT tax not included)

Prices
Q.ty	Unit Price	Ext. price
5+	€0,92	€4,60
10+	€0,88	€8,80
50+	€0,84	€42,00
100+	€0,79	€79,00
(VAT tax not included)
