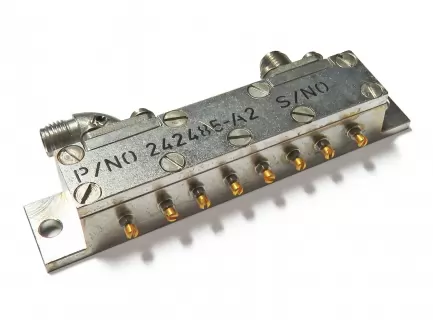

242485-A2 |
|
|---|---|
7.5 - 15 GHz wide bandwidth band-pass filter, SMA female
242485-A2
Order code: FBP-7.5-15G
Product conditions: N
|
|
-
11.25 GHz
-
7.5 GHz
-
1.5 dB
-
50 Ω
-
coaxial
-
SMA female
-
71 x 13 mm - h 13 mm
No document found
Band-pass filter, SMA female connectors, frequency band 7.5 - 15 GHz
This tunable filter is made of 13 resonators that give a good selectivity, it is suitable only for broadband applications such as instrumentation, radar, etc..
Typical insertion loss 1.5 dB, ripple ±1.5 dB
Size: 71 x 13 mm, h 13 mm
Example of internal construction
-
85322400
-
75.00 g
-
No
-
Not available
