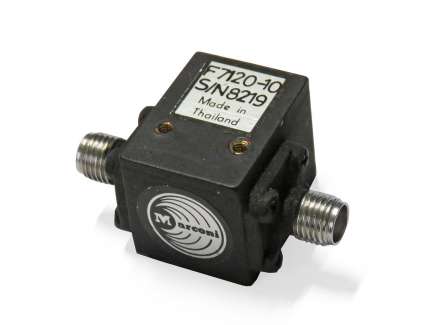

F7120-10 Marconi |
|
|---|---|
Coaxial isolator 8.5 - 12.5 GHz, 25 W
F7120-10
Order code: C2P-10500A
Product conditions: B
|
|
-
isolator (2 ports)
-
coaxial
-
8.5 GHz
-
12.5 GHz
-
4 GHz
-
0.5 dB
-
20 dB
-
20 dB
-
25 W
-
1 W
-
SMA female / SMA female
| Title | Dimension | ||
|---|---|---|---|
| F7120-10 - Datasheet | 540.8 kB |
Dimension (excluding connectors): 21 x 17mm, h 16 mm
Test report typical characterization of insertion loss, return loss and isolation
-
TH
-
85437090
-
29.00 g
-
No
-
Not available
