1.85mm male to 1.85mm male coaxial adapter, dc - 67 GHz precision series

Order code:	ADA-41
	1.85mm male to 1.85mm male coaxial adapter, dc - 67 GHz precision series QAXIAL 1.85M41-PS
Conditions:	N (The product is brand new)
Adapter Series:	1.85mm > 1.85mm
Adapter Type:	male > male
Impedance :	50 Ohm
Maximum frequency:	67 GHz
Geometry:	straight
Mounting:	free hanging
Insulator:	PEI
Body material:	stainless steel
Body finishing:	passivated

Go to product page ADA-41

Coaxial cable assembly, SMA male / SMA female, QF141, 1 m, 26.5 GHz

Order code:	CIS-643
	Coaxial cable assembly, SMA male / SMA female, QF141, 1 m, 26.5 GHz QAXIAL S22S32-76-01000
Conditions:	N (The product is brand new)
Maximum frequency:	26.5 GHz
Impedance :	50 Ohm
Cable type :	QF141
Dielectric:	PTFE
Connectors type:	SMA > SMA
Connectors gender:	male > female
Length:	1 m
Application:	high frequency, high shielding, high temperature
Flexibility:	flexible

Go to product page CIS-643

4-hole flange solder cup HN female coaxial connector, high voltage

Order code:	HN-02
	4-hole flange solder cup HN female coaxial connector, high voltage QAXIAL HN14-4H-01
Conditions:	N (The product is brand new)
Connector series:	HN
Gender:	female
Impedance:	50 Ohm
Maximum frequency:	4 GHz
Geometry:	straight
Mounting:	4-hole flange
Termination style:	solder cup
Coupling:	threaded
Insulator:	PTFE
Body material:	brass
Body finishing:	nickel

Go to product page HN-02

Clamp N male OMNI FIT™ coaxial connector for CELLFLEX® 7/8'' cables, IP68

Order code:	N-19
	Clamp N male OMNI FIT™ coaxial connector for CELLFLEX® 7/8'' cables, IP68 RFS NM-LCF78-C03
Conditions:	N (The product is brand new)
Connector series:	N
Gender:	male
Impedance:	50 Ohm
Maximum frequency:	6 GHz
Geometry:	straight
Mounting:	free hanging
Termination style:	cable - clamp
Coupling:	threaded
Cable type:	CELLFLEX® LCF78-50J, HELIAX® LDF5-50A, SUCOFEED_7/8
Insulator:	PTFE
IP rating:	IP68
Body finishing:	trimetal/silver

Go to product page N-19

HiQ SMD MLC capacitor, P90, 2.1pF, ±0.25pF, 150V, 0505

Order code:	100A-2P1-C150
	HiQ SMD MLC capacitor, P90, 2.1pF, ±0.25pF, 150V, 0505 American Technical Ceramics 100A2R1CW150XT
Conditions:	N- (The product is brand new but it comes from an old production)
Series:	100A
Capacitance:	2.1 pF
Tolerance (code):	C
Tolerance (value) (±):	0.25 pF
Max. working voltage:	150 V
Tcc (ppm/ºC):	90 ±20 (P90)
Dielectric material:	porcelain
Package type :	A (0505)

Go to product page 100A-2P1-C150

SMA male to SMA male coaxial adapter

Order code:	ADA-108
	SMA male to SMA male coaxial adapter Tyco Electronics 1053635-1
Conditions:	N- (The product is brand new but it comes from an old production)
Adapter Series:	SMA > SMA
Adapter Type:	male > male
Impedance :	50 Ohm
Maximum frequency:	18 GHz
Geometry:	straight
Mounting:	free hanging
Insulator:	PTFE
Body material:	stainless steel
Body finishing:	passivated

Go to product page ADA-108

PC 7 to 7/16 DIN female coaxial adapter

Order code:	ADA-81
	PC 7 to 7/16 DIN female coaxial adapter Huber+Suhner 33_PC7-716A-50-1/--_NE
Conditions:	N- (The product is brand new but it comes from an old production)
Adapter Series:	7/16 DIN > PC 7
Adapter Type:	female > sexless
Impedance :	50 Ohm
Maximum frequency:	7.5 GHz
Geometry:	straight
Mounting:	free hanging
Insulator:	Air Dielectric
Body material:	ottone
Body finishing:	SUCOPLATE®

Go to product page ADA-81

GaAs FET small-signal amplifier

Order code:	KGF1522
	GaAs FET small-signal amplifier OKI KGF1522
Conditions:	N- (The product is brand new but it comes from an old production)
Type:	GaAs-FET
Drain-source voltage (Vds):	4 V
Gate-source voltage (Vgs) :	-3 V
Drain current (Id):	50 mA
Power dissipation:	200 mW
Max. frequency:	2 GHz
Package:	4PSOP
Mounting:	SMD

Go to product page KGF1522

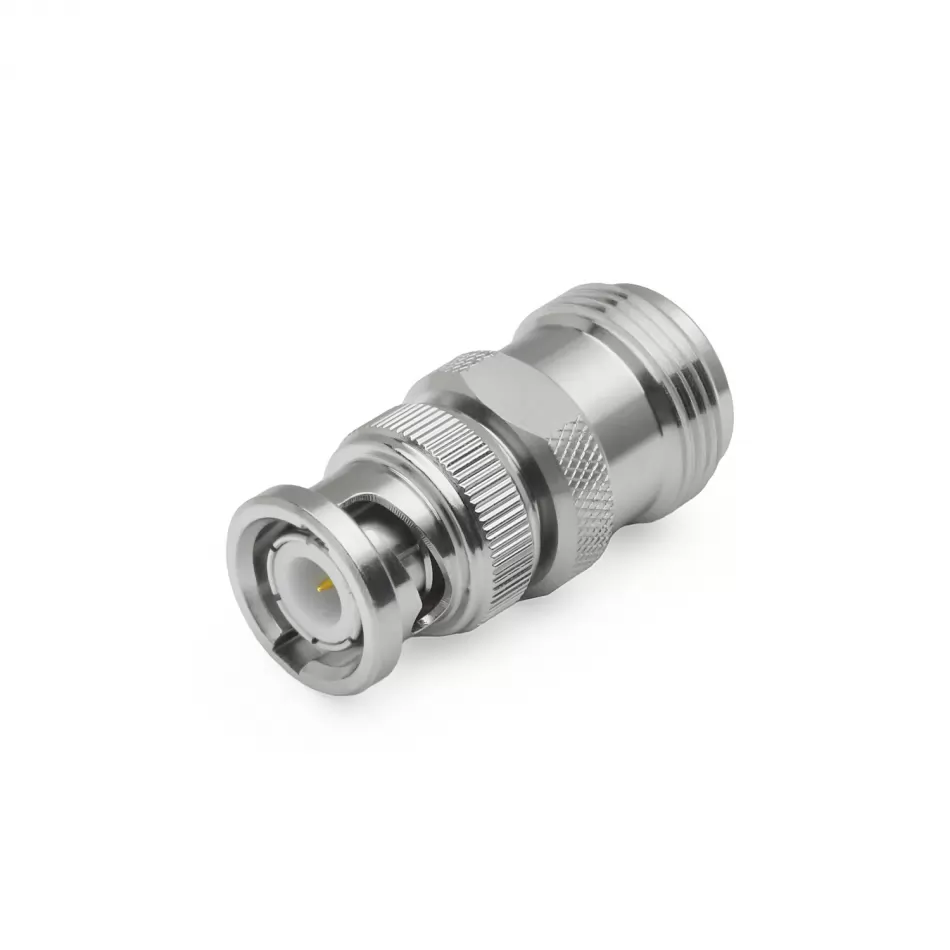

BNC male to N female coaxial adapter

Order code:	ADA-149
	BNC male to N female coaxial adapter QAXIAL BNC-N42-02
Conditions:	N (The product is brand new)
Adapter Series:	BNC > N
Adapter Type:	male > female
Impedance :	50 Ohm
Maximum frequency:	4 GHz
Geometry:	straight
Mounting:	free hanging
Insulator:	PTFE
Body material:	brass
Body finishing:	nickel

Go to product page ADA-149

Hermetic glass seal, 40 GHz, 0.38 mm

Order code:	GS-01
	Hermetic glass seal, 40 GHz, 0.38 mm QAXIAL GS038-40G-01
Conditions:	N (The product is brand new)
Max. frequency:	40 GHz
Pin diameter:	0.38 mm
Body diameter:	2.5 mm

Go to product page GS-01

Waveguide termination, WR75, UBR120 square flange, 9.84 - 15 GHz, 20W

Order code:	TGD-02
	Waveguide termination, WR75, UBR120 square flange, 9.84 - 15 GHz, 20W QAXIAL DL75-U120-20
Conditions:	N (The product is brand new)
Min. Frequency:	9.84 GHz
Max. frequency:	15 GHz
Waveguide:	WR75
Flange type:	UBR120
Power handling :	20 W

Go to product page TGD-02

Waveguide termination, WR22, UG383/U round flange, 32.9 - 50 GHz, 2W

Order code:	TGD-04
	Waveguide termination, WR22, UG383/U round flange, 32.9 - 50 GHz, 2W QAXIAL DL22-U383-02
Conditions:	N (The product is brand new)
Min. Frequency:	32.9 GHz
Max. frequency:	50 GHz
Waveguide:	WR22
Flange type:	UG383/U
Power handling :	2 W

Go to product page TGD-04
