1.85mm female to 2.92mm male coaxial adapter, dc - 40 GHz precision series

Order code:	ADA-15
	1.85mm female to 2.92mm male coaxial adapter, dc - 40 GHz precision series QAXIAL 1.85M-2.92M42-01PS
Conditions:	N (The product is brand new)
Adapter Series:	1.85mm > 2.92mm
Adapter Type:	female > male
Impedance :	50 Ohm
Maximum frequency:	40 GHz
Geometry:	straight
Mounting:	free hanging
Insulator:	PEI
Body material:	stainless steel
Body finishing:	passivated

Go to product page ADA-15

Clamp 7/16 DIN male coaxial connector for RG213 / RG214 / RG393 / RG225

Order code:	C716-03
	Clamp 7/16 DIN male coaxial connector for RG213 / RG214 / RG393 / RG225 QAXIAL 716D02-07G-01
Conditions:	N (The product is brand new)
Connector series:	7/16 DIN
Gender:	male
Impedance:	50 Ohm
Maximum frequency:	6 GHz
Geometry:	straight
Mounting:	free hanging
Termination style:	cable - clamp
Coupling:	threaded
Cable type:	ENVIROFLEX_393, RG8, RG213, RG214, RG225, RG393
Insulator:	PTFE
Body material:	brass
Body finishing:	ternary alloy

Go to product page C716-03

Microwave cable assembly, 40 GHz, 2x 2.92mm male, LLPSP141, 50 cm

Order code:	CIS-404
	Microwave cable assembly, 40 GHz, 2x 2.92mm male, LLPSP141, 50 cm QAXIAL K02K02-92-00500
Conditions:	N (The product is brand new)
Maximum frequency:	40 GHz
Impedance :	50 Ohm
Cable type :	LLPSP141
Dielectric:	Low density PTFE
Connectors type:	2.92mm > 2.92mm
Connectors gender:	male > male
Length:	50 cm
Application:	amplitude stability, high frequency, high shielding, high temperature, low loss, phase stability
Flexibility:	flexible

Go to product page CIS-404

2-way resistive power divider, SMA, dc - 6 GHz, 1W

Order code:	DCR-06-SMA
	2-way resistive power divider, SMA, dc - 6 GHz, 1W QAXIAL PWSR-2S11-602-01
Conditions:	N (The product is brand new)
Configuration:	coaxial
Connector type:	SMA jack
Minimum frequency:	0 Hz
Maximum frequency:	6 GHz
Number of ports:	2
Max. power handling:	1 W
Impedance:	50 Ohm
Type :	resistive

Go to product page DCR-06-SMA

HiQ SMD MLC capacitor, P90, 2.4pF, ±0.25pF, 150V, 0505

Order code:	100A-2P4-C150
	HiQ SMD MLC capacitor, P90, 2.4pF, ±0.25pF, 150V, 0505 American Technical Ceramics 100A2R4CT150XT
Conditions:	N- (The product is brand new but it comes from an old production)
Series:	100A
Capacitance:	2.4 pF
Tolerance (code):	C
Tolerance (value) (±):	0.25 pF
Max. working voltage:	150 V
Tcc (ppm/ºC):	90 ±20 (P90)
Dielectric material:	porcelain
Package type :	A (0505)

Go to product page 100A-2P4-C150

HiQ SMD MLC capacitor, P90, 3pF, ±0.25pF, 150V, 0505

Order code:	100A-3P0-C150
	HiQ SMD MLC capacitor, P90, 3pF, ±0.25pF, 150V, 0505 American Technical Ceramics 100A3R0CW150XT
Conditions:	N- (The product is brand new but it comes from an old production)
Series:	100A
Capacitance:	3 pF
Tolerance (code):	C
Tolerance (value) (±):	0.25 pF
Max. working voltage:	150 V
Tcc (ppm/ºC):	90 ±20 (P90)
Dielectric material:	porcelain
Package type :	A (0505)

Go to product page 100A-3P0-C150

PC 7 to 7/16 DIN female coaxial adapter

Order code:	ADA-81
	PC 7 to 7/16 DIN female coaxial adapter Huber+Suhner 33_PC7-716A-50-1/--_NE
Conditions:	N- (The product is brand new but it comes from an old production)
Adapter Series:	7/16 DIN > PC 7
Adapter Type:	female > sexless
Impedance :	50 Ohm
Maximum frequency:	7.5 GHz
Geometry:	straight
Mounting:	free hanging
Insulator:	Air Dielectric
Body material:	ottone
Body finishing:	SUCOPLATE®

Go to product page ADA-81

Bulkhead crimp N female coaxial connector for RG58 / RG141 / LMR195

Order code:	N-72
	Bulkhead crimp N female coaxial connector for RG58 / RG141 / LMR195 Huber+Suhner 24_N-50-3-11/133_NE
Conditions:	N- (The product is brand new but it comes from an old production)
Connector series:	N
Gender:	female
Impedance:	50 Ohm
Maximum frequency:	11 GHz
Geometry:	straight
Mounting:	bulkhead - rear
Termination style:	cable - crimp
Coupling:	threaded
Cable type:	LLF195, LMR195, RG58, RG141
Insulator:	PTFE
Body material:	brass
Body finishing:	SUCOPLATE®

Go to product page N-72

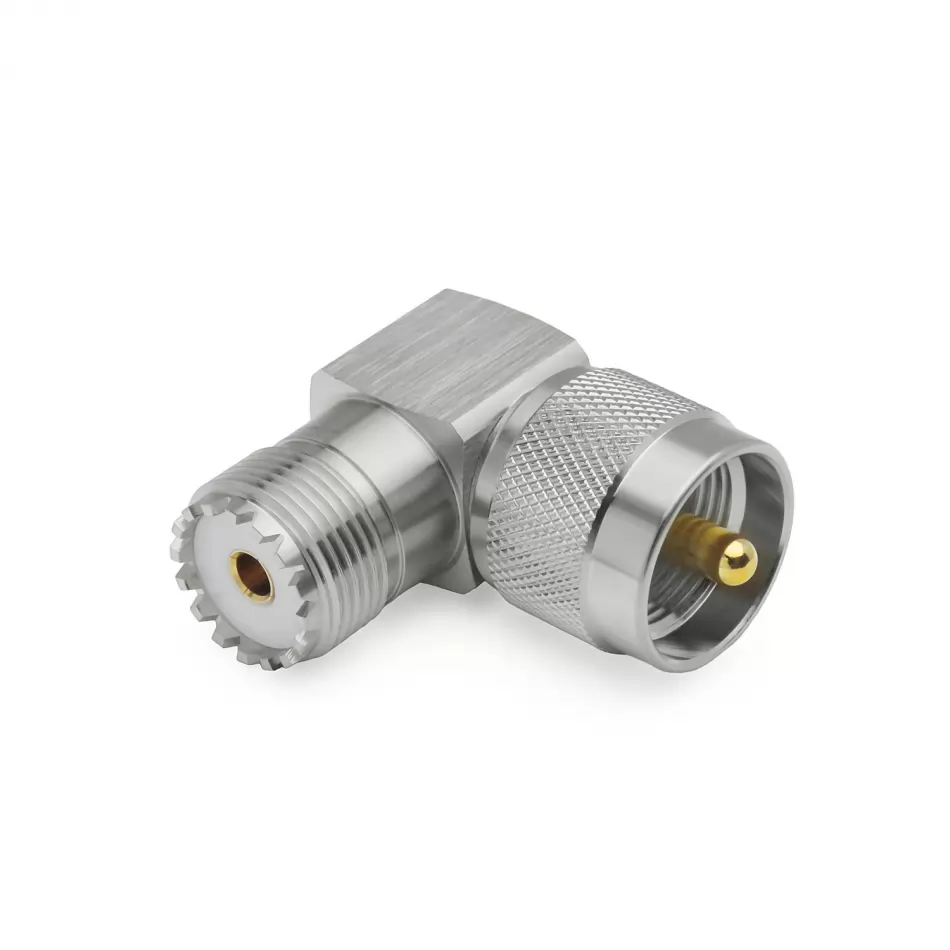

Right angle UHF male (PL259) to UHF female (SO239) coaxial adapter

Order code:	ADA-147
	Right angle UHF male (PL259) to UHF female (SO239) coaxial adapter QAXIAL UHF57-01
Conditions:	N (The product is brand new)
Adapter Series:	UHF (PL259) > UHF (SO239)
Adapter Type:	male > female
Impedance :	50 Ohm
Maximum frequency:	300 MHz
Geometry:	right angle
Mounting:	free hanging
Insulator:	PTFE
Body material:	brass
Body finishing:	nickel

Go to product page ADA-147

Hermetic glass seal, 40 GHz, 0.38 mm

Order code:	GS-01
	Hermetic glass seal, 40 GHz, 0.38 mm QAXIAL GS038-40G-01
Conditions:	N (The product is brand new)
Max. frequency:	40 GHz
Pin diameter:	0.38 mm
Body diameter:	2.5 mm

Go to product page GS-01

Crimp right angle QMA male coaxial connector for LMR-240 / LLF240 / SPUMA_240

Order code:	QMA-03
	Crimp right angle QMA male coaxial connector for LMR-240 / LLF240 / SPUMA_240 Huber+Suhner 16_QMA-W50-4-5/133_NH
Conditions:	N (The product is brand new)
Connector series:	QMA
Gender:	male
Impedance:	50 Ohm
Maximum frequency:	18 GHz
Geometry:	straight
Mounting:	free hanging
Termination style:	cable - crimp
Coupling:	threaded
Cable type:	LLF240, LMR240, SPUMA_240, S_04262_B-01, S_04272_B
Insulator:	PTFE
Body material:	brass
Body finishing:	SUCOPLATE®

Go to product page QMA-03

Waveguide termination, WR42, UBR220 square flange, 17.6 - 26.7 GHz, 15W

Order code:	TGD-03
	Waveguide termination, WR42, UBR220 square flange, 17.6 - 26.7 GHz, 15W QAXIAL DL42-U220-15
Conditions:	N (The product is brand new)
Min. Frequency:	17.6 GHz
Max. frequency:	26.7 GHz
Waveguide:	WR42
Flange type:	UBR220
Power handling :	15 W

Go to product page TGD-03
