TNC male to TNC male coaxial adapter

Order code:	ADA-133
	TNC male to TNC male coaxial adapter QAXIAL TNC41-01
Conditions:	N (The product is brand new)
Adapter Series:	TNC > TNC
Adapter Type:	male > male
Impedance :	50 Ohm
Maximum frequency:	11 GHz
Geometry:	straight
Mounting:	free hanging
Insulator:	PTFE
Body material:	brass
Body finishing:	nickel

Go to product page ADA-133

SMA female to UHF female (SO239) coaxial adapter

Order code:	ADA-136
	SMA female to UHF female (SO239) coaxial adapter QAXIAL SMA-UHF40-01
Conditions:	N (The product is brand new)
Adapter Series:	SMA > UHF (SO239)
Adapter Type:	female > female
Impedance :	50 Ohm
Maximum frequency:	500 MHz
Geometry:	straight
Mounting:	free hanging
Insulator:	PTFE
Body material:	brass
Body finishing:	nickel

Go to product page ADA-136

1.85mm female to 2.92mm male coaxial adapter, dc - 40 GHz precision series

Order code:	ADA-15
	1.85mm female to 2.92mm male coaxial adapter, dc - 40 GHz precision series QAXIAL 1.85M-2.92M42-01PS
Conditions:	N (The product is brand new)
Adapter Series:	1.85mm > 2.92mm
Adapter Type:	female > male
Impedance :	50 Ohm
Maximum frequency:	40 GHz
Geometry:	straight
Mounting:	free hanging
Insulator:	PEI
Body material:	stainless steel
Body finishing:	passivated

Go to product page ADA-15

Directional coupler, 1 - 40GHz, 20dB, 20W, 2.92mm female

Order code:	DCK-003
	Directional coupler, 1 - 40GHz, 20dB, 20W, 2.92mm female QAXIAL DC-20-0140-292
Conditions:	N (The product is brand new)
Frequency range:	1 - 40GHz
Type:	coaxial
Coupling:	20 dB
Impedance:	50 Ohm
Input power (max.):	20 W
Connectors:	2.92mm female

Go to product page DCK-003

HiQ SMD MLC capacitor, P90, 2.4pF, ±0.25pF, 150V, 0505

Order code:	100A-2P4-C150
	HiQ SMD MLC capacitor, P90, 2.4pF, ±0.25pF, 150V, 0505 American Technical Ceramics 100A2R4CT150XT
Conditions:	N- (The product is brand new but it comes from an old production)
Series:	100A
Capacitance:	2.4 pF
Tolerance (code):	C
Tolerance (value) (±):	0.25 pF
Max. working voltage:	150 V
Tcc (ppm/ºC):	90 ±20 (P90)
Dielectric material:	porcelain
Package type :	A (0505)

Go to product page 100A-2P4-C150

HiQ SMD MLC capacitor, NP0, 3.3pF, ±0.25pF, 150V, 0505

Order code:	700A-3P3-C150
	HiQ SMD MLC capacitor, NP0, 3.3pF, ±0.25pF, 150V, 0505 American Technical Ceramics 700A3R3CW150XT
Conditions:	N- (The product is brand new but it comes from an old production)
Series:	700A
Capacitance:	3.3 pF
Tolerance (code):	C
Tolerance (value) (±):	0.25 pF
Max. working voltage:	150 V
Tcc (ppm/ºC):	0 ±30 (NP0)
Dielectric material:	porcelain
Package type :	A (0505)

Go to product page 700A-3P3-C150

Varicap diode, 30V, 0.9pF max

Order code:	DVH3653
	Varicap diode, 30V, 0.9pF max Alpha DVH3653-93
Conditions:	N- (The product is brand new but it comes from an old production)
Reverse voltage (VR):	30 V
Max. capacitance:	0.9 pF
Q factor:	4000
Package:	ceramic
Mounting:	SMD
Configuration:	single

Go to product page DVH3653

RF mixer, 5 - 1200 MHz, 17 dBm, plug-in

Order code:	SRA-173H
	RF mixer, 5 - 1200 MHz, 17 dBm, plug-in Mini-Circuits SRA-173H
Conditions:	N- (The product is brand new but it comes from an old production)
RF frequency:	5 - 1200 MHz
LO frequency:	5 - 1200 MHz
IF frequency:	dc - 1200 MHz
LO power level:	17 dBm
Max. conversion loss:	8.5 dB
Operating temperature (°C):	-55 / +100
Mounting style:	plug-in
Mixer type:	triple-balanced

Go to product page SRA-173H

4-hole flange field replaceable 2.92mm male coaxial connector, for 0.38mm pin

Order code:	2.92MM-04
	4-hole flange field replaceable 2.92mm male coaxial connector, for 0.38mm pin QAXIAL 2.92M14-4H-01
Conditions:	N (The product is brand new)
Connector series:	2.92mm (K)
Gender:	male
Impedance:	50 Ohm
Maximum frequency:	40 GHz
Geometry:	straight
Mounting:	4-hole flange
Termination style:	female contact
Coupling:	threaded
Insulator:	PEI
Body material:	stainless steel
Body finishing:	passivated

Go to product page 2.92MM-04

Standard gain horn antenna, WR-75, 9.84 - 15 GHz, 20 dBi, UBR-220 square cover flange

Order code:	ANT-009
	Standard gain horn antenna, WR-75, 9.84 - 15 GHz, 20 dBi, UBR-220 square cover flange QAXIAL HAR75-20
Conditions:	N (The product is brand new)
Frequency min.:	9.84 GHz
Frequency max.:	15 GHz
Gain:	20 dBi
Connector:	WR42
Antenna type:	indoor
Impedance:	50 Ohm

Go to product page ANT-009

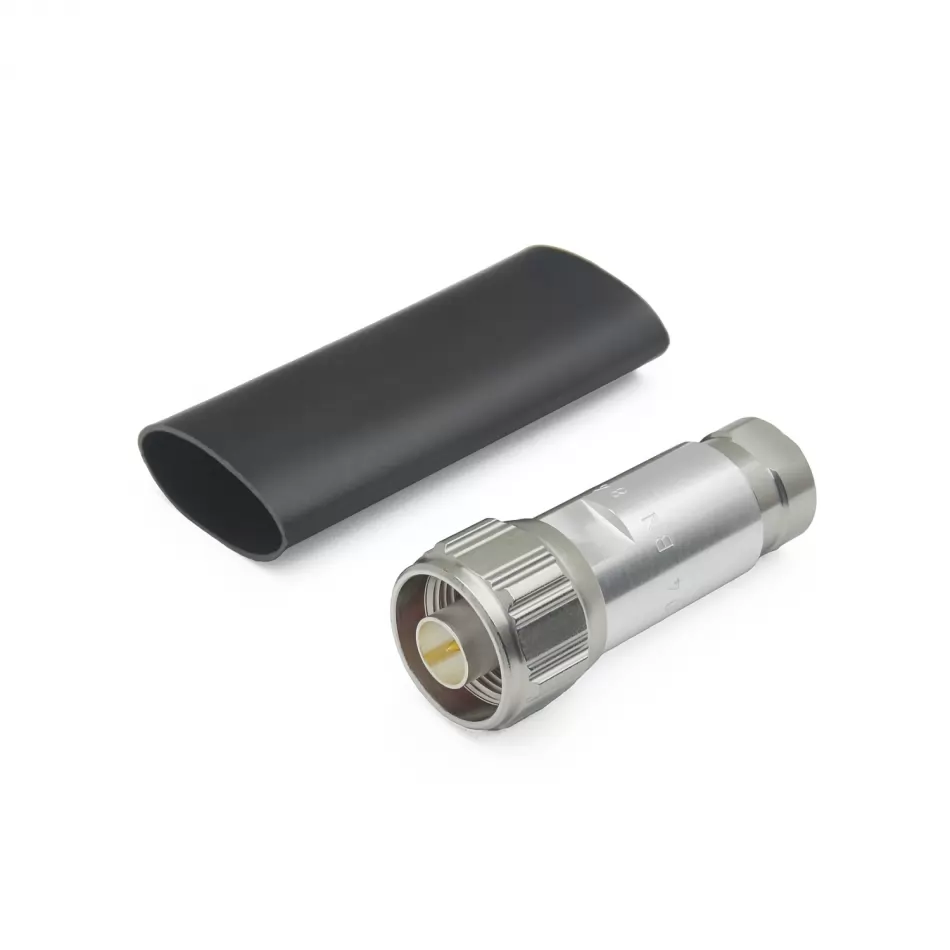

Clamp N male coaxial connector for 1/4'' corrugated cables, IP68

Order code:	N-81
	Clamp N male coaxial connector for 1/4'' corrugated cables, IP68 Spinner BN 844755
Conditions:	N (The product is brand new)
Connector series:	N
Gender:	male
Impedance:	50 Ohm
Maximum frequency:	6 GHz
Geometry:	straight
Mounting:	free hanging
Termination style:	cable - clamp
Coupling:	threaded
Cable type:	1/4 in (10mm), CELLFLEX® LCF14-50J, HELIAX® LDF1-50, LF 1/4-50
Insulator:	PTFE
IP rating:	IP68
Body material:	copper alloy
Body finishing:	silver/nickel

Go to product page N-81

Iron powder toroid core T20-10

Order code:	T20-10
	Iron powder toroid core T20-10 Micrometals T20-10
Conditions:	N (The product is brand new)
Color code:	black/clear
Material:	10
Permeability (µi):	6
AL 100 turns:	16 µH
Frequency range:	15 - 100 MHz
Outer diameter (metric):	5.08 mm
Inner diameter (metric):	2.24 mm
Height (metric) :	1.78 mm
Outer diameter (imperial):	0.2 in
Inner diameter (imperial):	0.088 in
Height (imperial) :	0.07 in

Go to product page T20-10
