TNC male to TNC male coaxial adapter

Order code:	ADA-133
	TNC male to TNC male coaxial adapter QAXIAL TNC41-01
Conditions:	N (The product is brand new)
Adapter Series:	TNC > TNC
Adapter Type:	male > male
Impedance :	50 Ohm
Maximum frequency:	11 GHz
Geometry:	straight
Mounting:	free hanging
Insulator:	PTFE
Body material:	brass
Body finishing:	nickel

Go to product page ADA-133

Waveguide to coaxial adapter, WR12 to 1.0mm female, 60.5 - 91.9 GHz, UG387/U round cover flange

Order code:	ADA-WR12-01
	Waveguide to coaxial adapter, WR12 to 1.0mm female, 60.5 - 91.9 GHz, UG387/U round cover flange QAXIAL W12ZF-U387R
Conditions:	N (The product is brand new)
Waveguide (EIA) :	WR12
Waveguide (IEC):	R740
Flange type (EIA or JAN):	UG387/U
Coaxial connector:	1.0mm female
Frequency (min.):	60.5 GHz
Frequency (max.):	91.9 GHz

Go to product page ADA-WR12-01

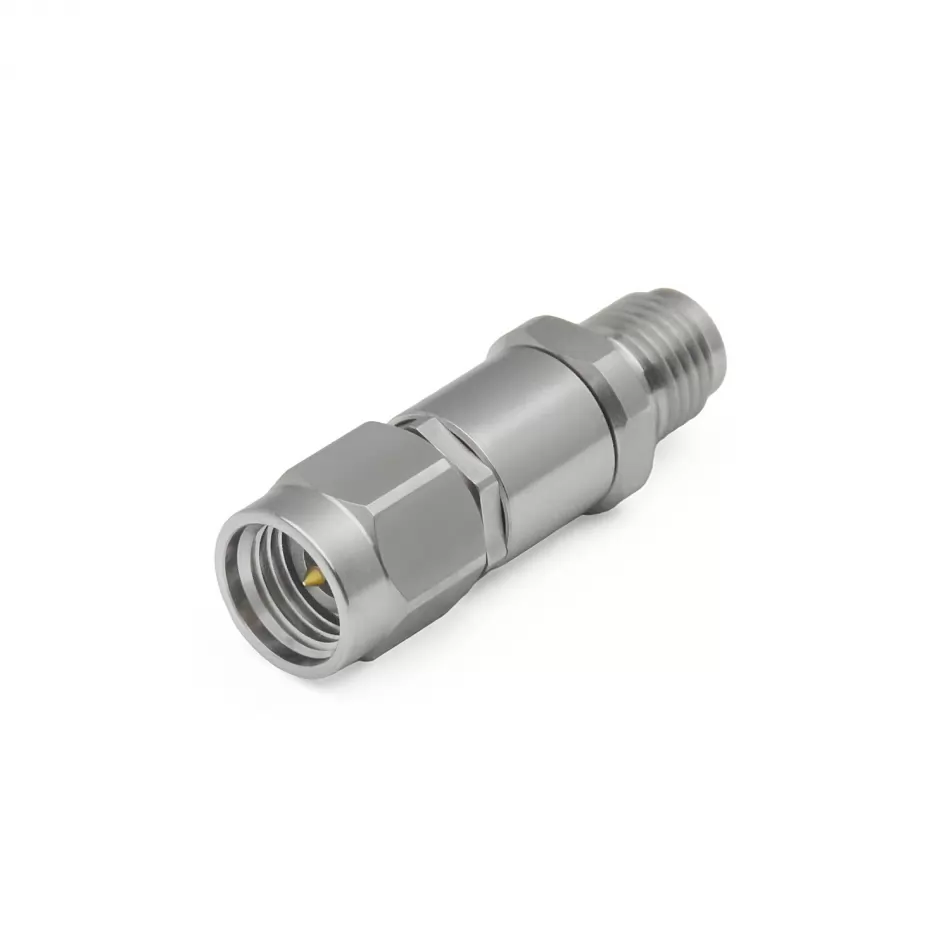

SMA coaxial attenuator, 10 dB, 2 W, 18 GHz

Order code:	ATFS-18G-10Q
	SMA coaxial attenuator, 10 dB, 2 W, 18 GHz QAXIAL ATS-1002-18
Conditions:	N (The product is brand new)
Connector type:	SMA
Gender:	male / female
Impedance:	50 Ohm
Attenuation:	10 dB
Maximum frequency:	18 GHz
Power :	2 W
Body material:	stainless steel
Body finishing:	passivated

Go to product page ATFS-18G-10Q

Directional coupler, 2 - 18GHz, 20dB, 20W, SMA female

Order code:	DCS-002
	Directional coupler, 2 - 18GHz, 20dB, 20W, SMA female QAXIAL DC-20-0218-SMA
Conditions:	N (The product is brand new)
Frequency range:	2 - 18GHz
Type:	coaxial
Coupling:	20 dB
Impedance:	50 Ohm
Input power (max.):	20 W
Connectors:	SMA female

Go to product page DCS-002

HiQ SMD MLC capacitor, NP0, 2200pF, ±20%, 50V, 1111

Order code:	700B-2N2-M50
	HiQ SMD MLC capacitor, NP0, 2200pF, ±20%, 50V, 1111 American Technical Ceramics 700B222MT50XT
Conditions:	N- (The product is brand new but it comes from an old production)
Series:	700B
Capacitance:	2.2 nF
Tolerance (code):	M
Tolerance (value) (±):	20%
Max. working voltage:	50 V
Tcc (ppm/ºC):	0 ±30 (NP0)
Dielectric material:	ceramic
Package type :	B (1111)

Go to product page 700B-2N2-M50

SMA male to SMA male coaxial adapter

Order code:	ADA-108
	SMA male to SMA male coaxial adapter Tyco Electronics 1053635-1
Conditions:	N- (The product is brand new but it comes from an old production)
Adapter Series:	SMA > SMA
Adapter Type:	male > male
Impedance :	50 Ohm
Maximum frequency:	18 GHz
Geometry:	straight
Mounting:	free hanging
Insulator:	PTFE
Body material:	stainless steel
Body finishing:	passivated

Go to product page ADA-108

4 holes flange BNC female to BNC male quick push-on coaxial adapter

Order code:	ADA-66
	4 holes flange BNC female to BNC male quick push-on coaxial adapter Sofim 320E1012
Conditions:	N- (The product is brand new but it comes from an old production)
Adapter Series:	BNC > BNC
Adapter Type:	male > female
Impedance :	50 Ohm
Maximum frequency:	4 GHz
Geometry:	straight
Mounting:	4 holes flange
Insulator:	PTFE
Body material:	brass
Body finishing:	nickel

Go to product page ADA-66

RF mixer, 0.003 - 100 MHz, 7 dBm, plug-in

Order code:	SRA-6
	RF mixer, 0.003 - 100 MHz, 7 dBm, plug-in Mini-Circuits SRA-6
Conditions:	N- (The product is brand new but it comes from an old production)
RF frequency:	0.003 - 100 MHz
LO frequency:	0.003 - 100 MHz
IF frequency:	dc - 100 MHz
LO power level:	7 dBm
Max. conversion loss:	8.5 dB
Operating temperature (°C):	-55 / +100
Mounting style:	plug-in
Mixer type:	double-balanced

Go to product page SRA-6

Jumper cable assembly, 7/16 DIN male / female, CELLFLEX® SCF12-50J, 5 m, IP68

Order code:	7M7FS12-0500FFP
	Jumper cable assembly, 7/16 DIN male / female, CELLFLEX® SCF12-50J, 5 m, IP68 RFS 7M7FS12-0500FFP
Conditions:	N (The product is brand new)
Maximum frequency:	6 GHz
Impedance :	50 Ohm
Cable type :	CELLFLEX® SCF-50J
Dielectric:	foam PE
Connectors type:	7/16 DIN > 7/16 DIN
Connectors gender:	male > female
Length:	5 m
Application:	high power, high shielding, low loss, low PIM
Flexibility:	flexible

Go to product page 7M7FS12-0500FFP

Jumper cable assembly, 7/16 DIN male - right angle N male, CELLFLEX® SCF12-50J, 2 m, IP68

Order code:	7MNMRS12-0200FFP
	Jumper cable assembly, 7/16 DIN male - right angle N male, CELLFLEX® SCF12-50J, 2 m, IP68 RFS 7MNMRS12-0200FFP
Conditions:	N (The product is brand new)
Maximum frequency:	6 GHz
Impedance :	50 Ohm
Cable type :	CELLFLEX® SCF-50J
Dielectric:	foam PE
Connectors type:	7/16 DIN > N
Connectors gender:	male > right angle male
Length:	2 m
Application:	high power, high shielding, low loss, low PIM
Flexibility:	flexible

Go to product page 7MNMRS12-0200FFP

2.92mm male to 2.92mm female coaxial adapter, dc - 40 GHz precision series

Order code:	ADA-145
	2.92mm male to 2.92mm female coaxial adapter, dc - 40 GHz precision series QAXIAL 2.92M42-PS
Conditions:	N (The product is brand new)
Adapter Series:	2.92mm (K) > 2.92mm (K)
Adapter Type:	male > female
Impedance :	50 Ohm
Maximum frequency:	40 GHz
Geometry:	straight
Mounting:	free hanging
Insulator:	PEI
Body material:	stainless steel
Body finishing:	passivated

Go to product page ADA-145

Tin plated sheet metal box for electronic, 111 x 55 mm, H 40 mm

Order code:	SL-46
	Tin plated sheet metal box for electronic, 111 x 55 mm, H 40 mm Welco Plus TSMB40-55111
Width:	55 mm
Length:	111 mm
Height:	40 mm
Material:	tinned sheet metal

Go to product page SL-46
