Circulators and isolators

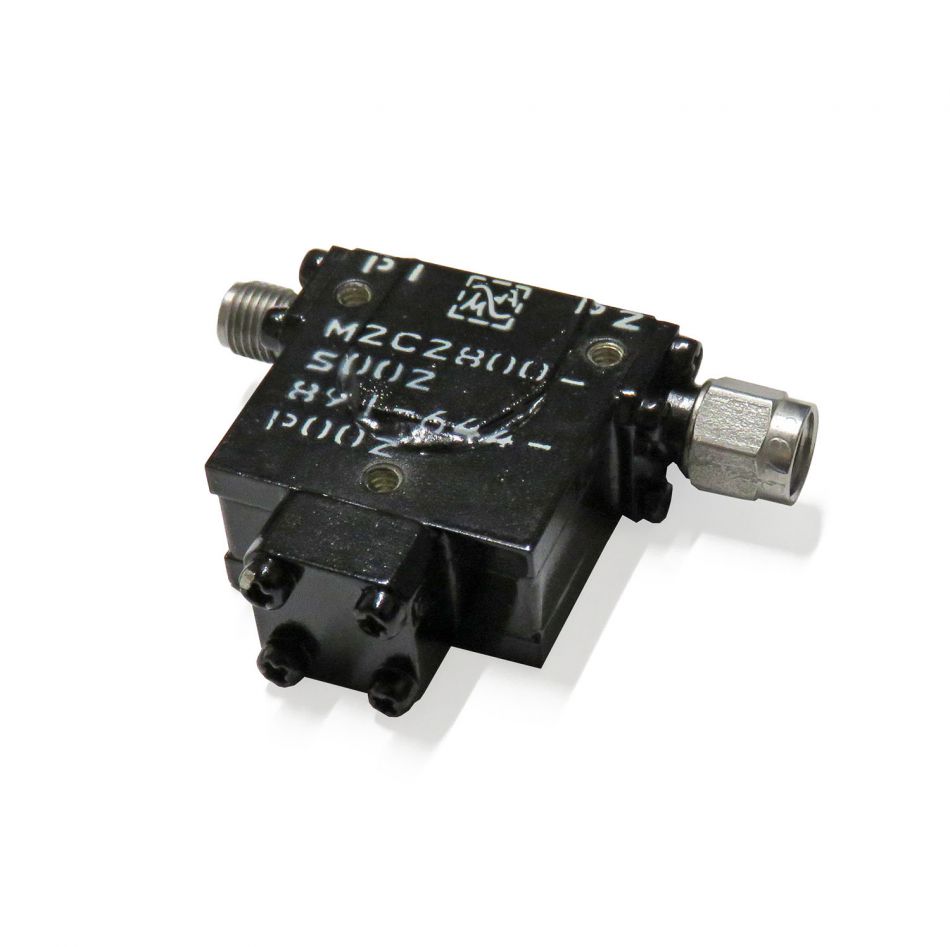

Coaxial isolator 2600 - 2920 MHz, 20 W

Order code:	C2P-2750A
	Coaxial isolator 2600 - 2920 MHz, 20 W Microwave Associates M2C-2800-S005
Conditions:	N- (The product is brand new but it comes from an old production)
Configuration:	isolator (2 ports)
Type:	coaxial
Frequency min.:	2600 MHz
Frequency max.:	2920 MHz
Total bandwidth:	320 MHz
Insertion loss (typ.):	0.5 dB
Return loss (typ.):	20 dB
Isolation (typ.):	20 dB
Max. input power:	20 W
Termination power:	1 W
Connectors (input/output/termination):	SMA female / SMA male

Go to product page C2P-2750A

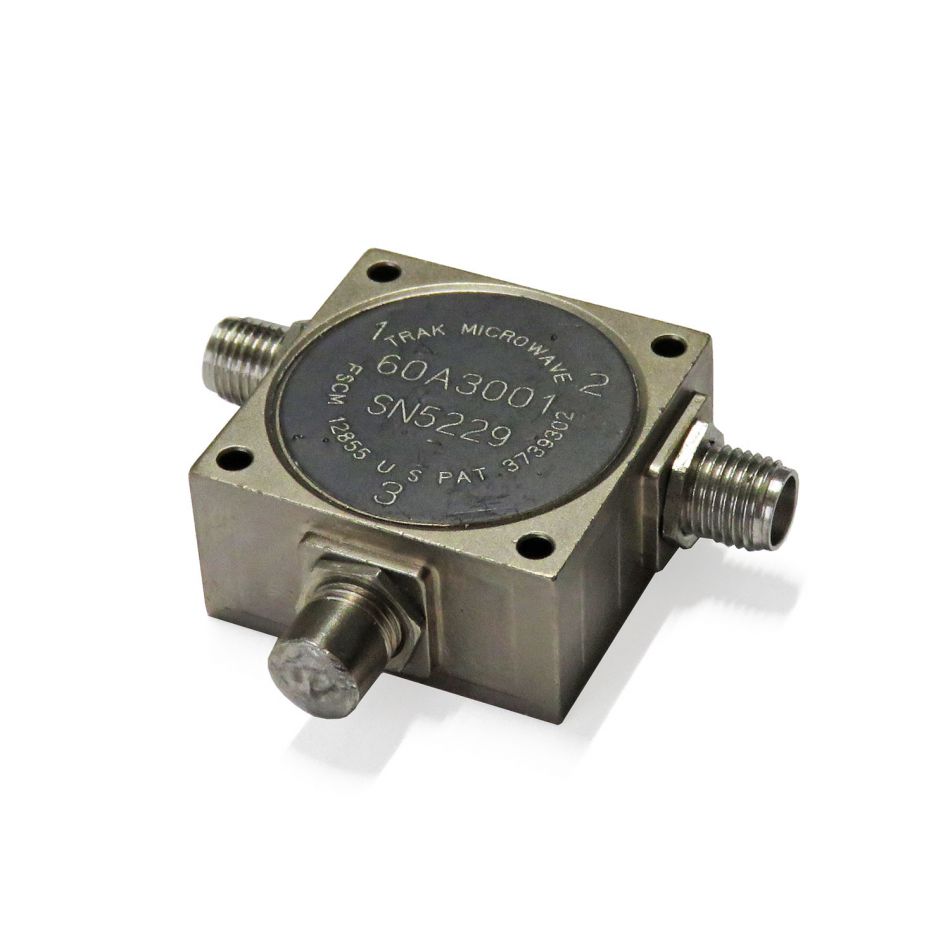

Coaxial isolator 2000 - 3900 MHz, 3 W

Order code:	C2P-3000A
	Coaxial isolator 2000 - 3900 MHz, 3 W TRAK Microwave 60A3001
Conditions:	A+ (The product is used/refurbished but like new)
Configuration:	isolator (2 ports)
Type:	coaxial
Frequency min.:	2000 MHz
Frequency max.:	3900 MHz
Total bandwidth:	1900 MHz
Insertion loss (typ.):	0.5 dB
Return loss (typ.):	20 dB
Isolation (typ.):	20 dB
Max. input power:	3 W
Termination power:	1 W
Connectors (input/output/termination):	SMA female / SMA female

Go to product page C2P-3000A

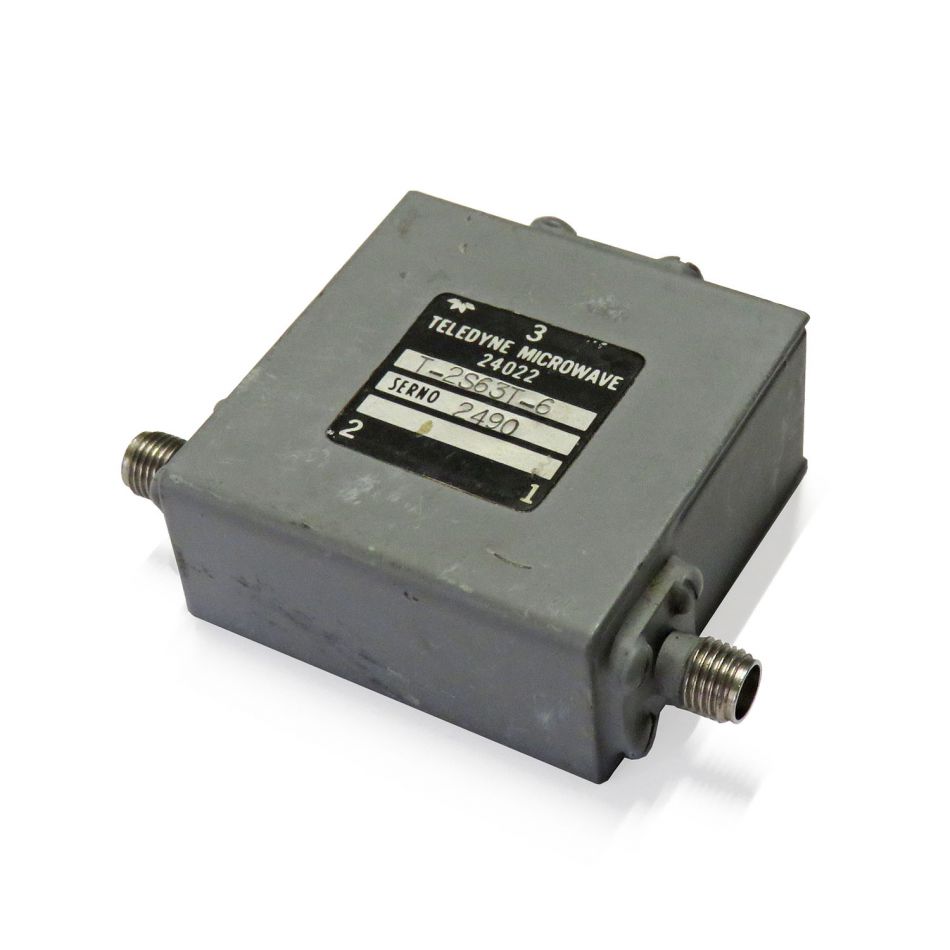

Coaxial isolator 2000 - 4000 MHz, 20 W

Order code:	C2P-3000C
	Coaxial isolator 2000 - 4000 MHz, 20 W Teledyne T-2S63T-6
Conditions:	B (The product is used/refurbished with some signs of wear but still in good conditions)
Configuration:	isolator (2 ports)
Type:	coaxial
Frequency min.:	2000 MHz
Frequency max.:	4000 MHz
Total bandwidth:	2000 MHz
Insertion loss (typ.):	0.5 dB
Return loss (typ.):	20 dB
Isolation (typ.):	19 dB
Max. input power:	20 W
Termination power:	1 W
Connectors (input/output/termination):	SMA female / SMA female

Go to product page C2P-3000C

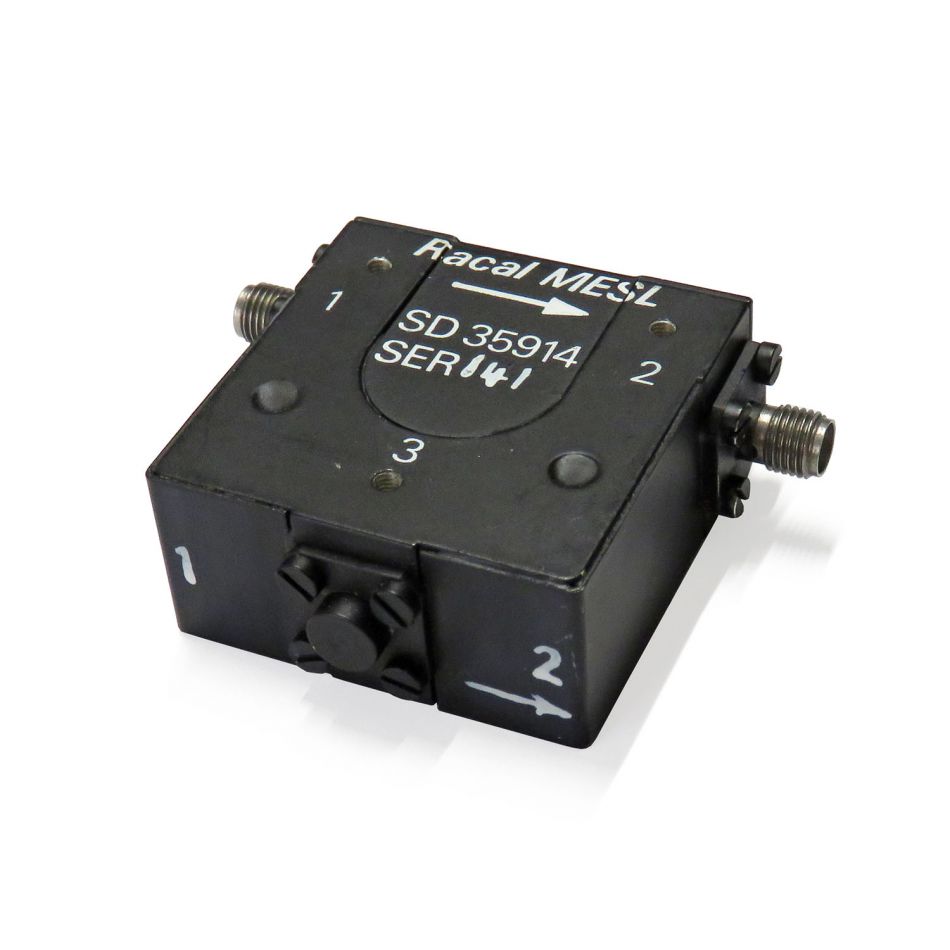

Coaxial isolator 2000 - 4000 MHz, 20 W

Order code:	C2P-3000D
	Coaxial isolator 2000 - 4000 MHz, 20 W Racal-MESL SD 35914
Conditions:	A (The product is used/refurbished but in very good conditions)
Configuration:	isolator (2 ports)
Type:	coaxial
Frequency min.:	2000 MHz
Frequency max.:	4000 MHz
Total bandwidth:	2000 MHz
Insertion loss (typ.):	0.5 dB
Return loss (typ.):	20 dB
Isolation (typ.):	19 dB
Max. input power:	20 W
Termination power:	1 W
Connectors (input/output/termination):	SMA female / SMA female

Go to product page C2P-3000D

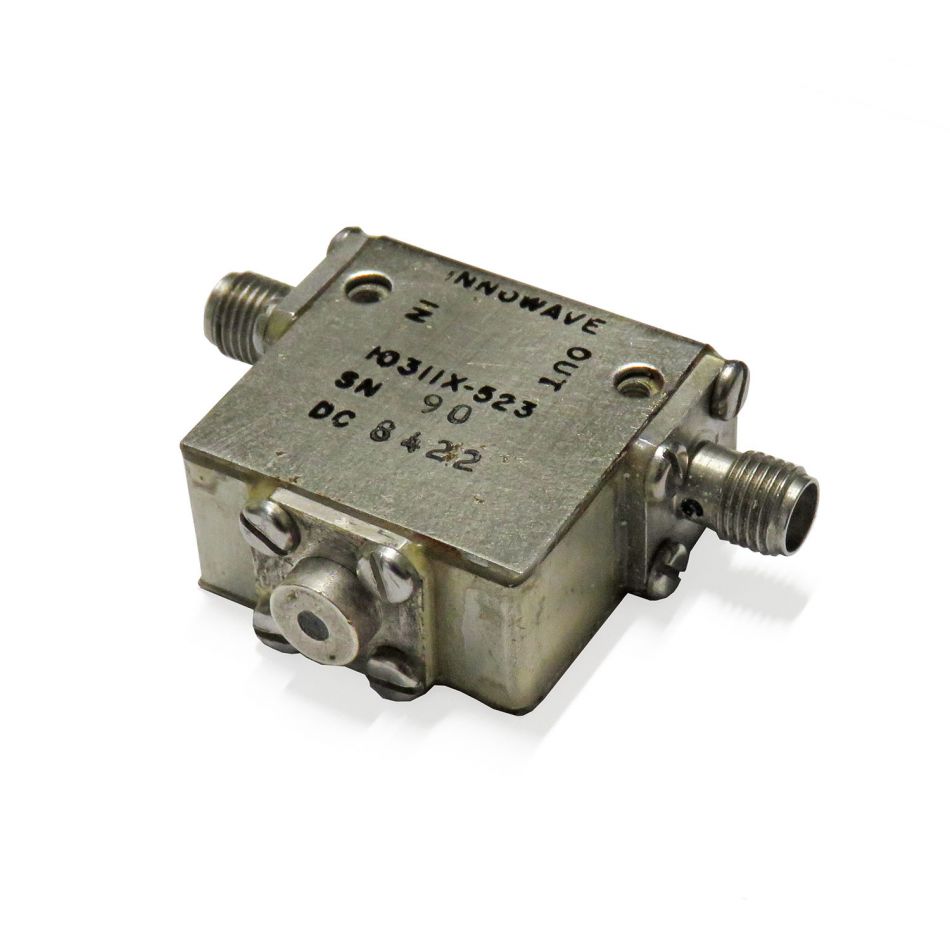

Coaxial isolator 2700 - 3300 MHz, 10 W

Order code:	C2P-3000G
	Coaxial isolator 2700 - 3300 MHz, 10 W Innowave 10311X-523
Conditions:	B (The product is used/refurbished with some signs of wear but still in good conditions)
Configuration:	isolator (2 ports)
Type:	coaxial
Frequency min.:	2700 MHz
Frequency max.:	3300 MHz
Total bandwidth:	600 MHz
Insertion loss (typ.):	0.5 dB
Return loss (typ.):	19 dB
Isolation (typ.):	19 dB
Max. input power:	10 W
Termination power:	1 W
Connectors (input/output/termination):	SMA female / SMA female

Go to product page C2P-3000G

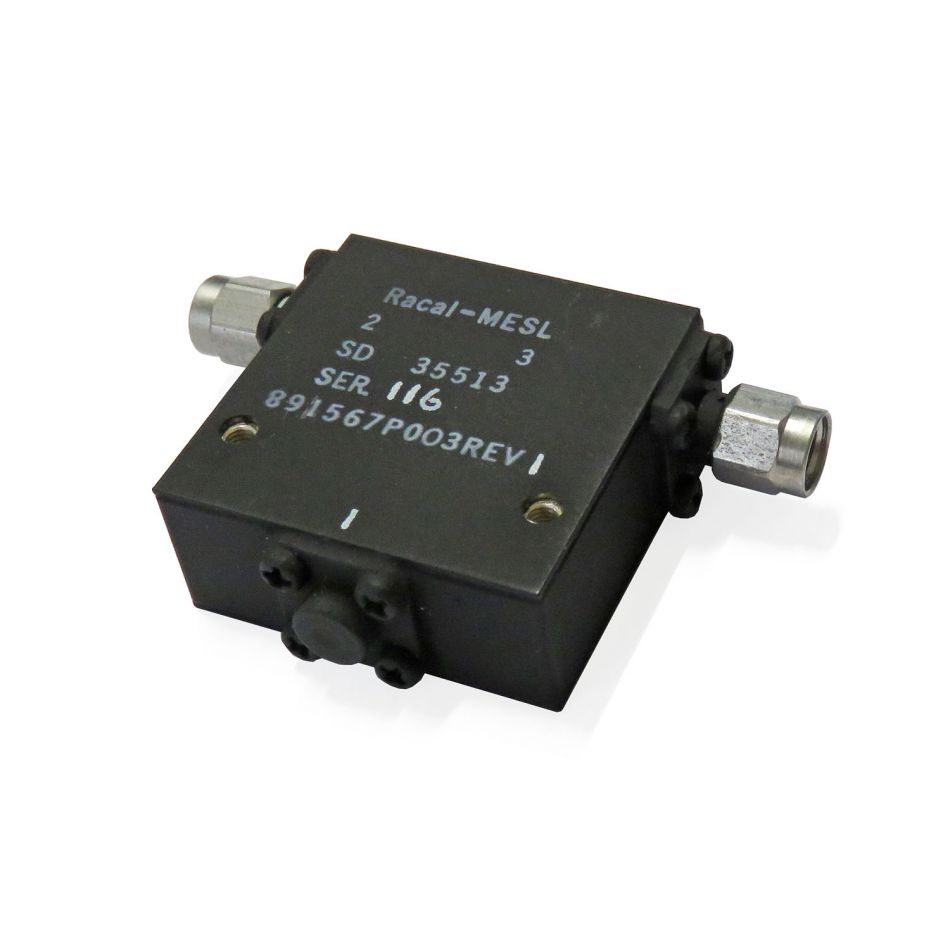

Coaxial isolator 2900 - 3600 MHz, 10 W

Order code:	C2P-3300A
	Coaxial isolator 2900 - 3600 MHz, 10 W Racal-MESL SD 35513
Conditions:	N- (The product is brand new but it comes from an old production)
Configuration:	isolator (2 ports)
Type:	coaxial
Frequency min.:	2900 MHz
Frequency max.:	3600 MHz
Total bandwidth:	700 MHz
Insertion loss (typ.):	0.4 dB
Return loss (typ.):	20 dB
Isolation (typ.):	20 dB
Max. input power:	10 W
Termination power:	1 W
Connectors (input/output/termination):	SMA male / SMA male

Go to product page C2P-3300A

Coaxial isolator 3300 - 4200 MHz, 5 W

Order code:	C2P-3500A
	Coaxial isolator 3300 - 4200 MHz, 5 W Marconi F1094-40
Conditions:	D (The product is used/refurbished and in bad aesthetic conditions)
Configuration:	isolator (2 ports)
Type:	coaxial
Frequency min.:	3300 MHz
Frequency max.:	4200 MHz
Total bandwidth:	900 MHz
Insertion loss (typ.):	0.4 dB
Return loss (typ.):	20 dB
Isolation (typ.):	20 dB
Max. input power:	5 W
Termination power:	1 W
Connectors (input/output/termination):	SMA female / SMA female

Go to product page C2P-3500A

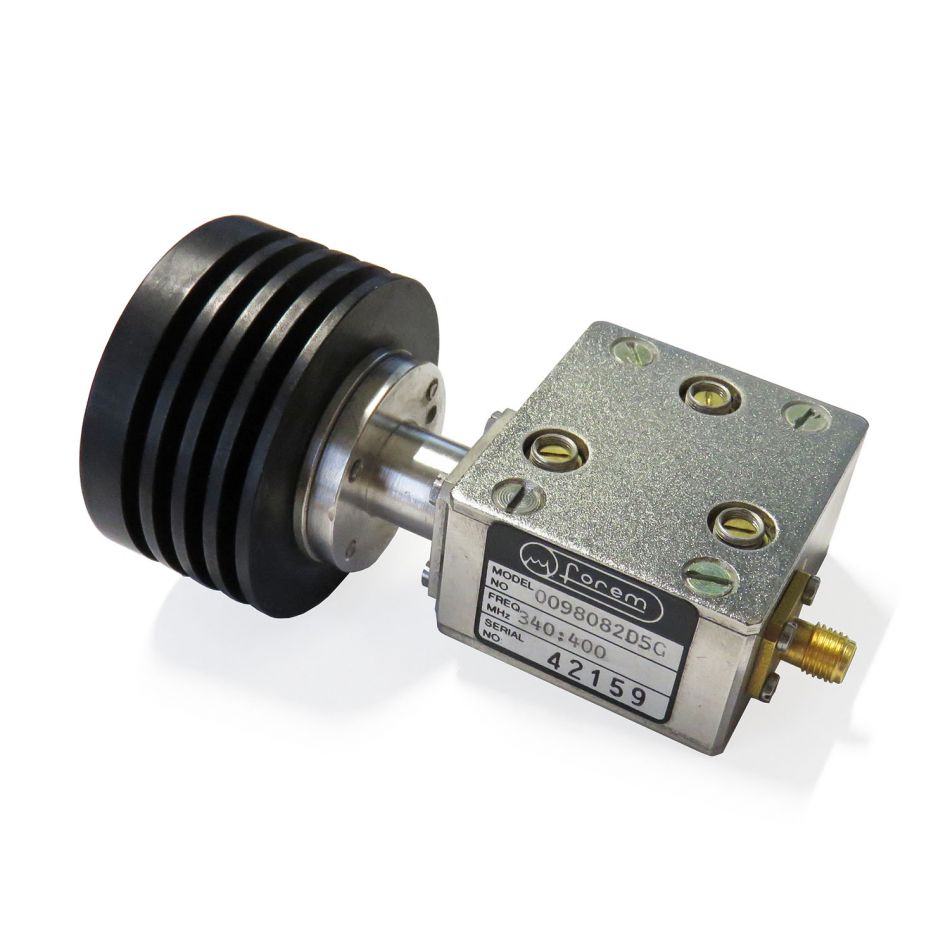

Coaxial isolator 340 - 400 MHz, 100 W

Order code:	C2P-370A
	Coaxial isolator 340 - 400 MHz, 100 W Forem 009808205G
Conditions:	N- (The product is brand new but it comes from an old production)
Configuration:	isolator (2 ports)
Type:	coaxial
Frequency min.:	340 MHz
Frequency max.:	400 MHz
Total bandwidth:	60 MHz
Tunable bandwidth:	20 MHz
Insertion loss (typ.):	0.5 dB
Return loss (typ.):	20 dB
Isolation (typ.):	20 dB
Max. input power:	100 W
Termination power:	50 W
Connectors (input/output/termination):	SMA female / SMA female

Go to product page C2P-370A

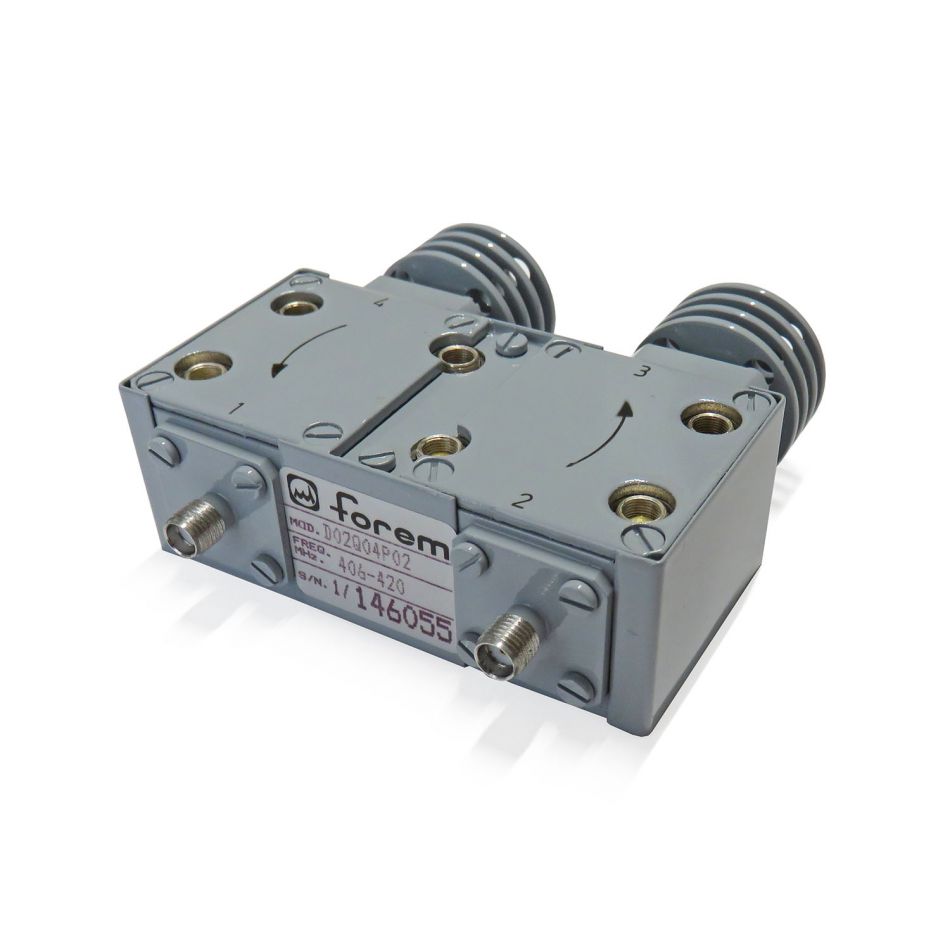

Double coaxial isolator 325 - 415 MHz, 50 W

Order code:	C2P-370B
	Double coaxial isolator 325 - 415 MHz, 50 W Forem D02Q04P02
Conditions:	N- (The product is brand new but it comes from an old production)
Configuration:	isolator (2 ports)
Type:	coaxial
Frequency min.:	325 MHz
Frequency max.:	415 MHz
Total bandwidth:	90 MHz
Tunable bandwidth:	15 MHz
Insertion loss (typ.):	0.8 dB
Return loss (typ.):	20 dB
Isolation (typ.):	40 dB
Max. input power:	50 W
Termination power:	20 W
Connectors (input/output/termination):	SMA female / SMA female

Go to product page C2P-370B

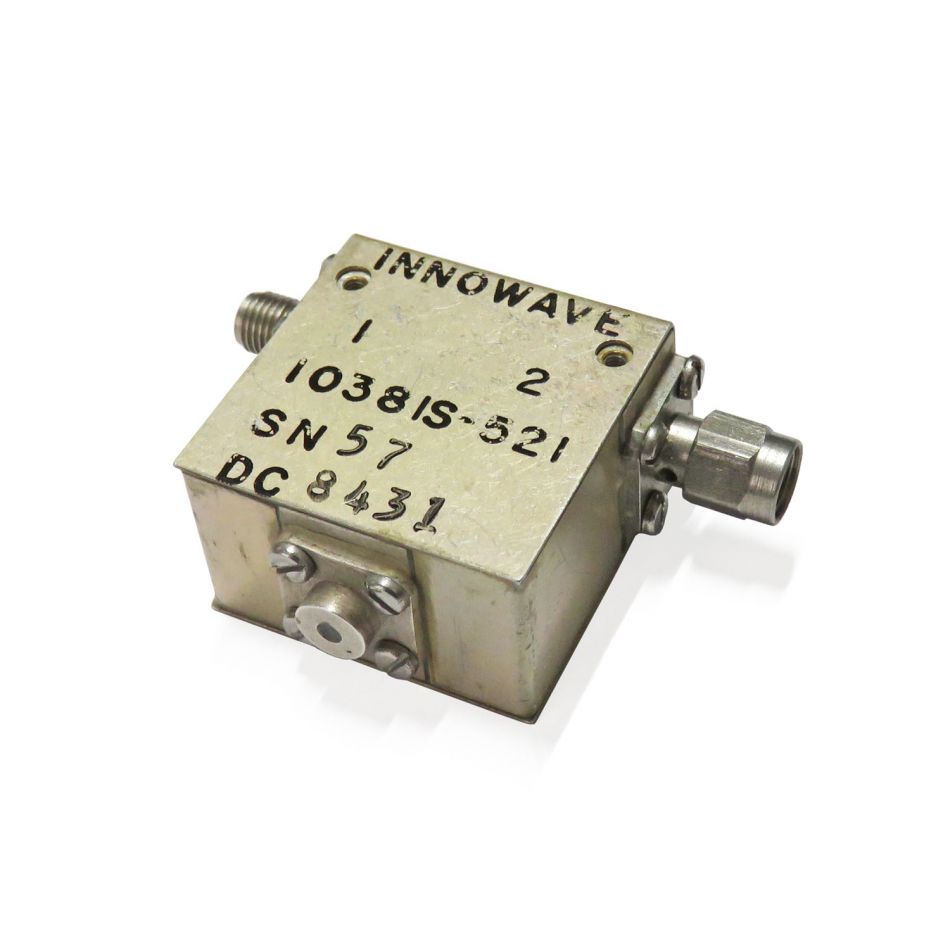

Coaxial isolator 3200 - 4600 MHz, 5 W

Order code:	C2P-3900A
	Coaxial isolator 3200 - 4600 MHz, 5 W Innowave 10381S-521
Conditions:	C (The product is used/refurbished with evident signs of wear)
Configuration:	isolator (2 ports)
Type:	coaxial
Frequency min.:	3200 MHz
Frequency max.:	4600 MHz
Total bandwidth:	1400 MHz
Insertion loss (typ.):	0.5 dB
Return loss (typ.):	20 dB
Isolation (typ.):	20 dB
Max. input power:	5 W
Termination power:	1 W
Connectors (input/output/termination):	SMA female / SMA male

Go to product page C2P-3900A

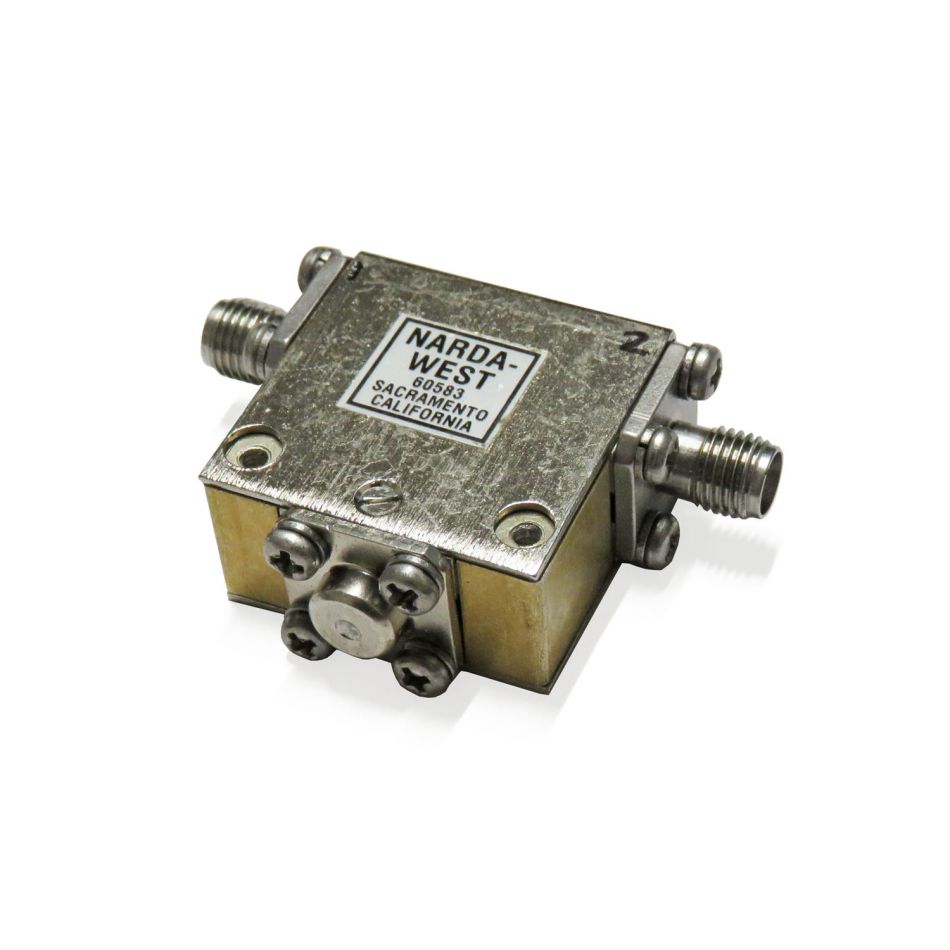

Coaxial isolator 3300 - 4700 MHz, 3 W

Order code:	C2P-4000A
	Coaxial isolator 3300 - 4700 MHz, 3 W Narda-West INA3442
Conditions:	N- (The product is brand new but it comes from an old production)
Configuration:	isolator (2 ports)
Type:	coaxial
Frequency min.:	3300 MHz
Frequency max.:	4700 MHz
Total bandwidth:	1400 MHz
Insertion loss (typ.):	0.4 dB
Return loss (typ.):	20 dB
Isolation (typ.):	20 dB
Max. input power:	3 W
Termination power:	1 W
Connectors (input/output/termination):	SMA female / SMA female

Go to product page C2P-4000A

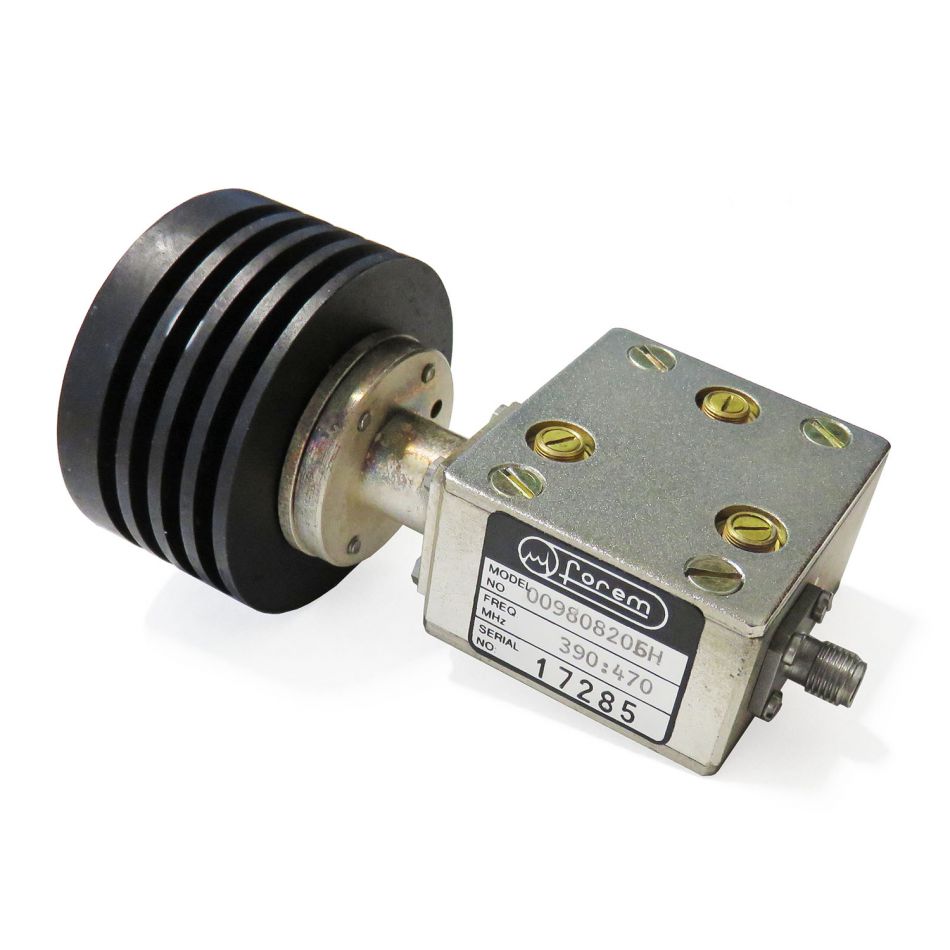

Coaxial isolator 390 - 470 MHz, 100 W

Order code:	C2P-420A
	Coaxial isolator 390 - 470 MHz, 100 W Forem 009808206H
Conditions:	N- (The product is brand new but it comes from an old production)
Configuration:	isolator (2 ports)
Type:	coaxial
Frequency min.:	390 MHz
Frequency max.:	470 MHz
Total bandwidth:	80 MHz
Tunable bandwidth:	20 MHz
Insertion loss (typ.):	0.5 dB
Return loss (typ.):	20 dB
Isolation (typ.):	20 dB
Max. input power:	100 W
Termination power:	50 W
Connectors (input/output/termination):	SMA female / SMA female

Go to product page C2P-420A

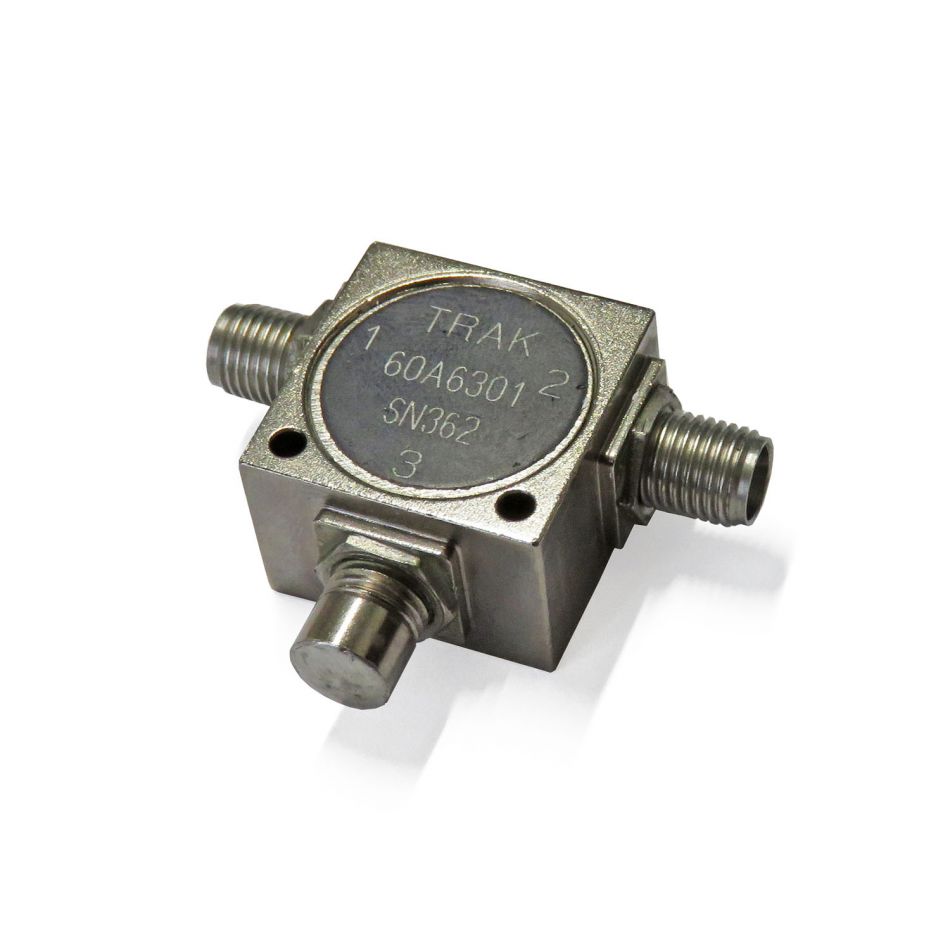

Coaxial isolator 3000 - 6000 MHz, 3 W

Order code:	C2P-4500A
	Coaxial isolator 3000 - 6000 MHz, 3 W TRAK Microwave 60A6301
Conditions:	A (The product is used/refurbished but in very good conditions)
Configuration:	isolator (2 ports)
Type:	coaxial
Frequency min.:	3000 MHz
Frequency max.:	6000 MHz
Total bandwidth:	3000 MHz
Insertion loss (typ.):	0.7 dB
Return loss (typ.):	18 dB
Isolation (typ.):	18 dB
Max. input power:	3 W
Termination power:	1 W
Connectors (input/output/termination):	SMA female / SMA female

Go to product page C2P-4500A

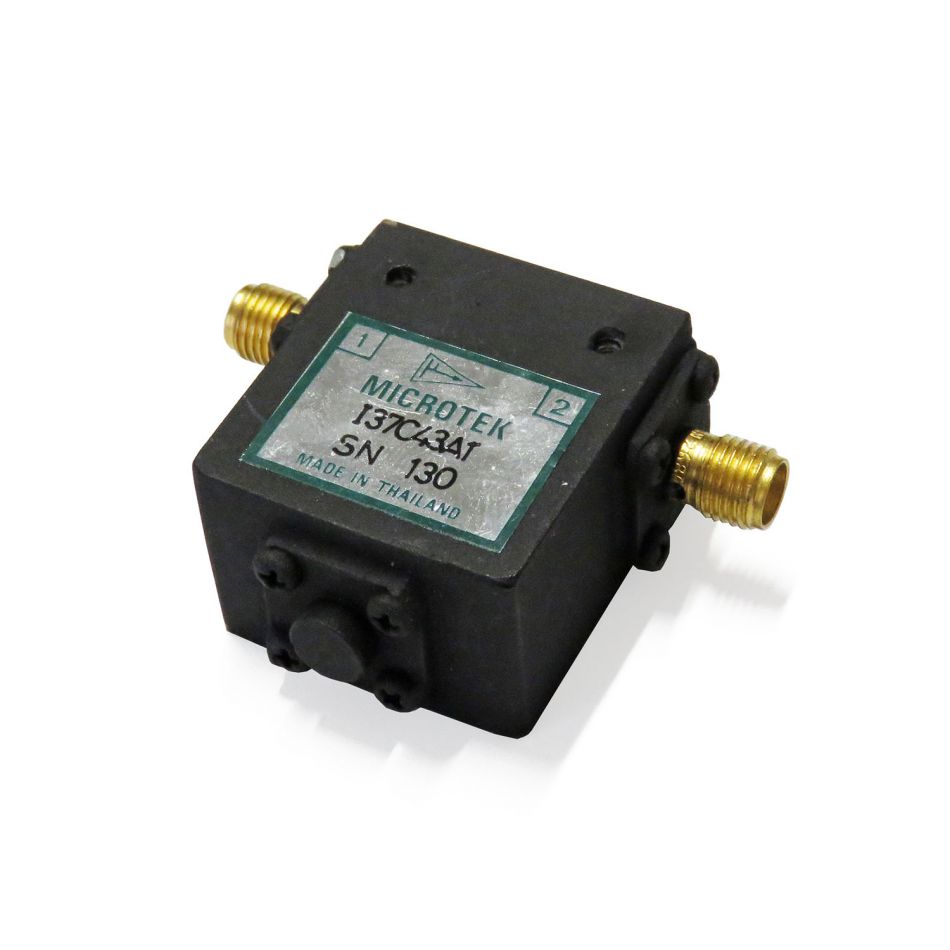

Coaxial isolator 3700 - 5200 MHz, 20 W

Order code:	C2P-4500B
	Coaxial isolator 3700 - 5200 MHz, 20 W Microtek 137C43A1
Conditions:	A (The product is used/refurbished but in very good conditions)
Configuration:	isolator (2 ports)
Type:	coaxial
Frequency min.:	3700 MHz
Frequency max.:	5200 MHz
Total bandwidth:	1500 MHz
Insertion loss (typ.):	0.5 dB
Return loss (typ.):	20 dB
Isolation (typ.):	20 dB
Max. input power:	20 W
Termination power:	1 W
Connectors (input/output/termination):	SMA female / SMA female

Go to product page C2P-4500B

Coaxial isolator 4200 - 5000 MHz, 5 W

Order code:	C2P-4600A
	Coaxial isolator 4200 - 5000 MHz, 5 W Alcatel 487217728D
Conditions:	C (The product is used/refurbished with evident signs of wear)
Configuration:	isolator (2 ports)
Type:	coaxial
Frequency min.:	4200 MHz
Frequency max.:	5000 MHz
Total bandwidth:	800 MHz
Insertion loss (typ.):	0.5 dB
Return loss (typ.):	20 dB
Isolation (typ.):	18 dB
Max. input power:	5 W
Termination power:	1 W
Connectors (input/output/termination):	SMA male / SMA female

Go to product page C2P-4600A
