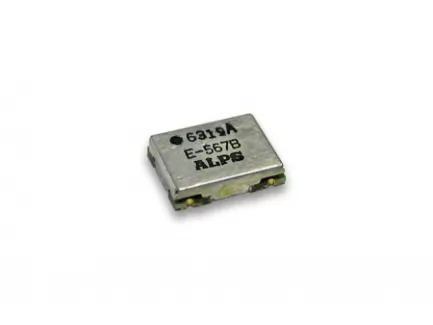

E-567B Alps |
|
|---|---|
900 - 1020 MHz VCO oscillator
E-567B
Order code: E-567B
Product conditions: N-
|
|
-
900 MHz
-
1020 MHz
-
0.5 V
-
5 V
-
5 V
-
18 mA
-
0 dBm
-
20 MHz/V
-
PCB
-
SMD
-
pin
| Title | Dimension | ||
|---|---|---|---|
| E-567B - Datasheet | 138.0 kB |
TECHNICAL SPECIFICATIONS:
- Frequency: from 900 to 1020 MHz with tuning voltage 0.5 - 5V
- RF output level: 0.2 - 1mW
- Tuning sensitivity: 20 MHz/V
- Power supply: 3V @ 8mA, 5V @ 18mA
- RF output impedance: 50Ω
- Phase noise: -105 dBc/Hz @ 25 KHz
- Outline dimensions: 8 x 10 mm, h 3 mm
-
85416000
-
2.00 g
-
No
-
Not available
