Brand: Tusonix
Manufacturer code: 4400-089
Order code: EMI-A04

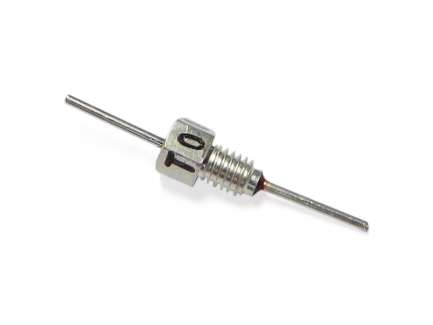

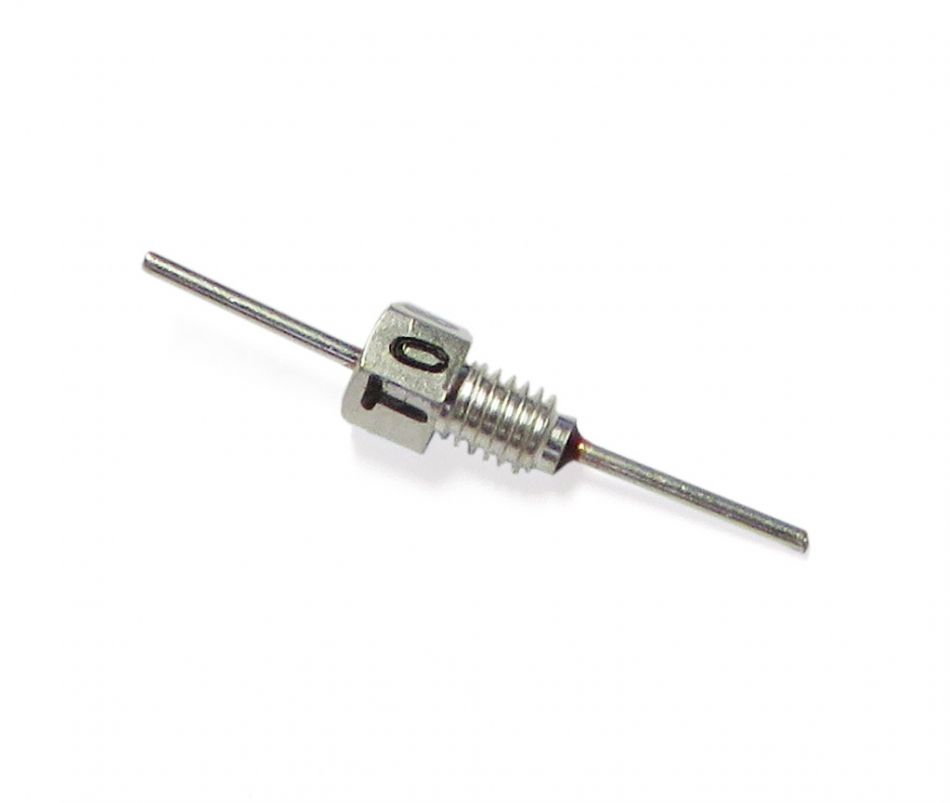

Miniature feed-through EMI filter

Product conditions: N
$4.10
/ pc
(VAT tax not included)
Minimum: 1 pc - Multiple: 1 pc
Stock
6823 pcs ready to ship
Volume discounts
Quantity Unit Price You save
1+ $4.10 -
10+ $3.77 8%
50+ $3.49 15%
100+ $3.27 20%
250+ $3.05 26%
500+ $2.88 30%
(VAT tax not included)
Compliance
Weight 0.50 g
RoHS No
REACH Not available
  • 10 nF
  • 70 V
  • 10 A
  • screw
  • feed-through
  • C
  • 3 mm
  • lead
  • lead

Miniature feed-through EMI filter

Panel cutout Ø 3 mm metric pitch M3x0.5 to screw directly on the panel, 10 nF 70V 10A, silver plated steel body, supplied without nut.

RF high attenuation type, 21dB @ 10 MHz, 50dB @ 1 GHz, see datasheet for more details.

EMI-A04
/
  Title Dimension
Datasheet 30.7 kB
