Transistors - power FET and MOSFET

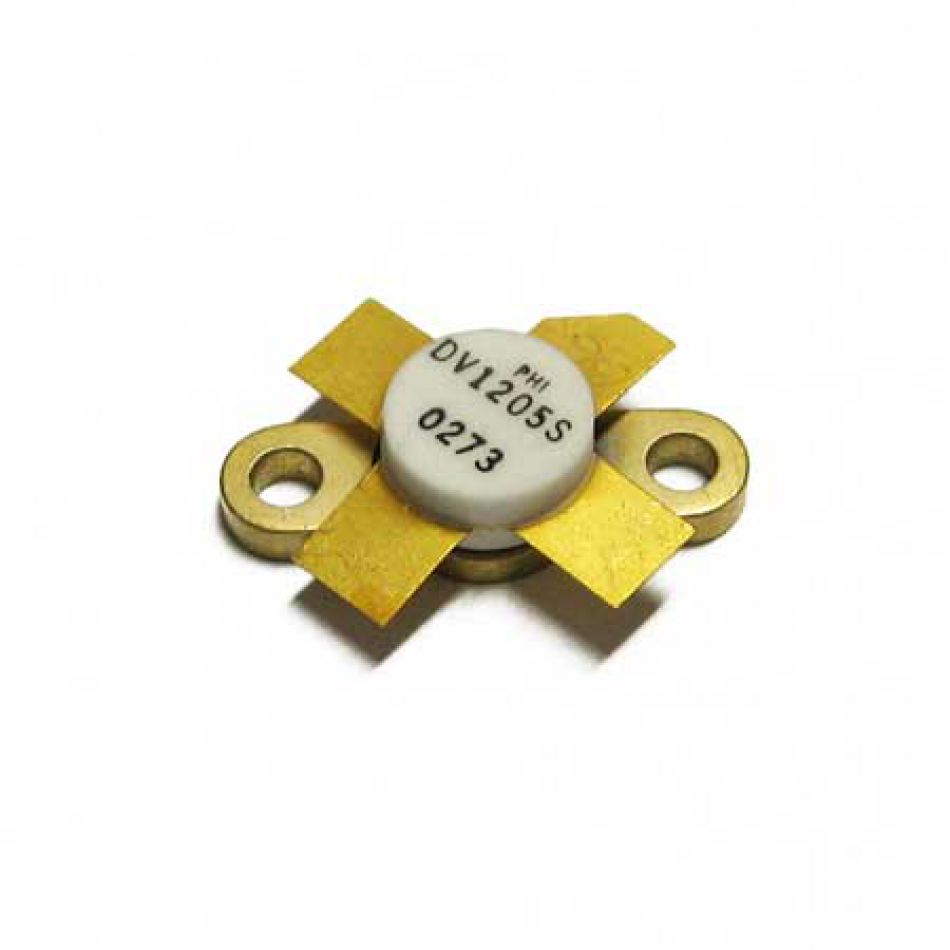

N-channel enhancement-mode RF power FET, HF/VHF amplifier, 6...

Order code:	DV1205S
	N-channel enhancement-mode RF power FET, HF/VHF amplifier, 6-24V, 5W, 1A MA-COM PHI Inc. DV1205S
Conditions:	N (The product is brand new)
Polarity:	N-channel
Output power:	5 W
Dissipated power (Ptot):	20 W
Drain current (Id max):	1 A
Drain-source voltage (Vds max):	45 V
Supply voltage:	12.5 V
Mounting or package:	flange
Mode of operation:	class-A
Frequency bands:	HF, VHF

Go to product page DV1205S

N-channel enhancement-mode RF power FET, HF/VHF amplifier, 10...

Order code:	DV1210S
	N-channel enhancement-mode RF power FET, HF/VHF amplifier, 10-20V, 10W, 2A MA-COM PHI Inc. DV1210S
Conditions:	N (The product is brand new)
Polarity:	N-channel
Output power:	10 W
Dissipated power (Ptot):	40 W
Drain current (Id max):	2 A
Drain-source voltage (Vds max):	20 V
Supply voltage:	45 V
Mounting or package:	flange
Mode of operation:	class-A
Frequency bands:	VHF

Go to product page DV1210S

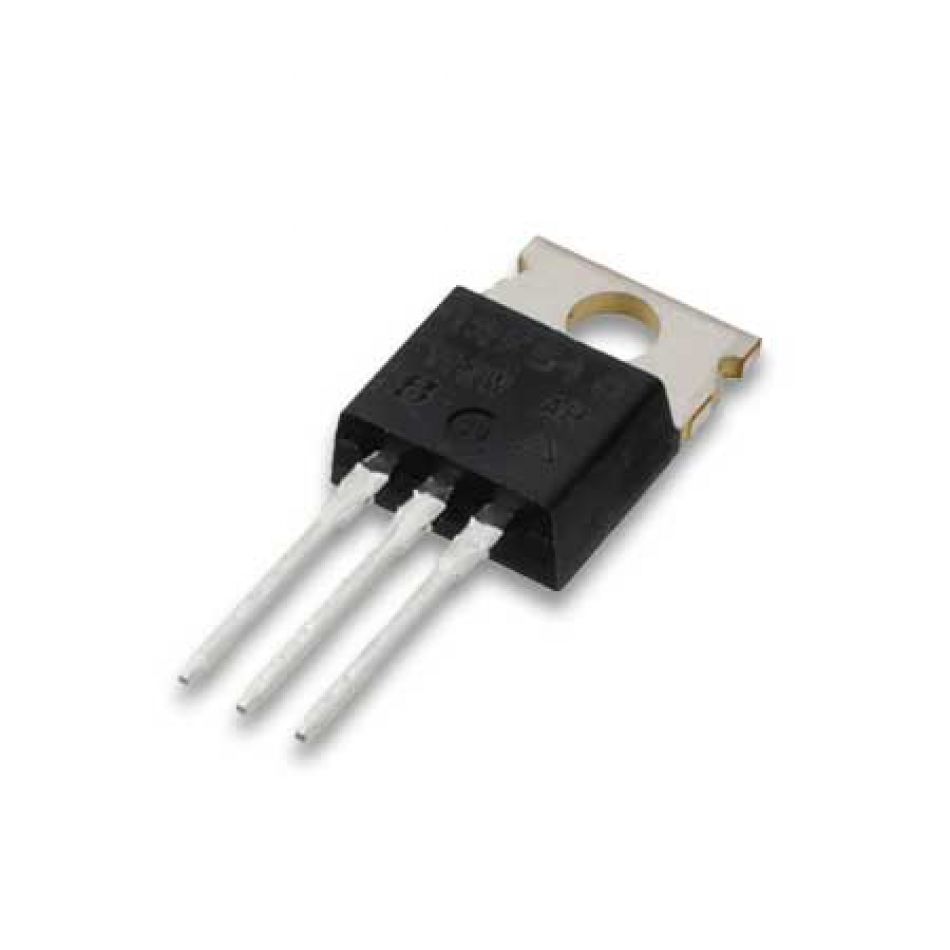

Fast switching power MOSFET, 20-28V, 5.6A, TO-220

Order code:	IRF510
	Fast switching power MOSFET, 20-28V, 5.6A, TO-220 Vishay IRF510PBF
Conditions:	N (The product is brand new)
Polarity:	N-channel
Dissipated power (Ptot):	43 W
Drain current (Id max):	5.6 A
Drain-source voltage (Vds max):	100 V
Supply voltage:	28 V
Mounting or package:	TO-220

Go to product page IRF510

N-channel enhancement-mode RF power MOSFET, 28V, 15W, 2.5A

Order code:	MRF136
	N-channel enhancement-mode RF power MOSFET, 28V, 15W, 2.5A Motorola MRF136
Conditions:	N (The product is brand new)
Polarity:	N-channel
Output power:	15 W
Dissipated power (Ptot):	65 W
Drain current (Id max):	2.5 A
Drain-source voltage (Vds max):	55 V
Supply voltage:	28 V
Mounting or package:	flange
Mode of operation:	class-A
Frequency bands:	UHF, VHF

Go to product page MRF136

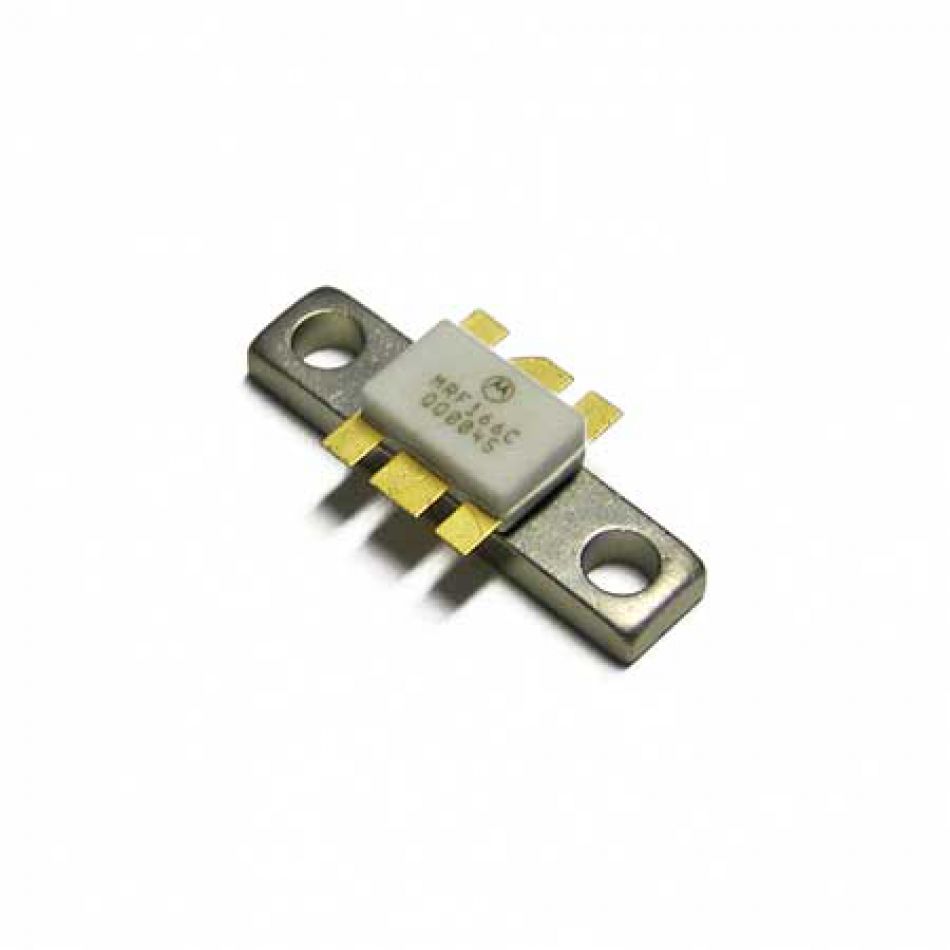

N-channel enhancement-mode RF power FET, 28V, 20W, 4A

Order code:	MRF166C
	N-channel enhancement-mode RF power FET, 28V, 20W, 4A Motorola MRF166C
Conditions:	N (The product is brand new)
Polarity:	N-channel
Output power:	20 W
Dissipated power (Ptot):	70 W
Drain current (Id max):	4 A
Drain-source voltage (Vds max):	65 V
Supply voltage:	28 V
Mounting or package:	flange
Frequency bands:	UHF, VHF

Go to product page MRF166C

N-channel enhancement-mode RF power MOSFET, 28V, 45W, 4.5A

Order code:	MRF171
	N-channel enhancement-mode RF power MOSFET, 28V, 45W, 4.5A Motorola MRF171
Conditions:	N (The product is brand new)
Polarity:	N-channel
Output power:	45 W
Dissipated power (Ptot):	115 W
Drain current (Id max):	4.5 A
Drain-source voltage (Vds max):	65 V
Supply voltage:	28 V
Mounting or package:	flange
Mode of operation:	class-A
Frequency bands:	VHF

Go to product page MRF171

N-channel enhancement-mode RF push-pull power FET, 28V, 150W, 26...

Order code:	MRF275G
	N-channel enhancement-mode RF push-pull power FET, 28V, 150W, 26A Motorola MRF275G
Conditions:	N (The product is brand new)
Polarity:	N-channel
Output power:	150 W
Dissipated power (Ptot):	400 W
Drain current (Id max):	26 A
Drain-source voltage (Vds max):	65 V
Supply voltage:	28 V
Mounting or package:	flange
Frequency bands:	UHF, VHF

Go to product page MRF275G

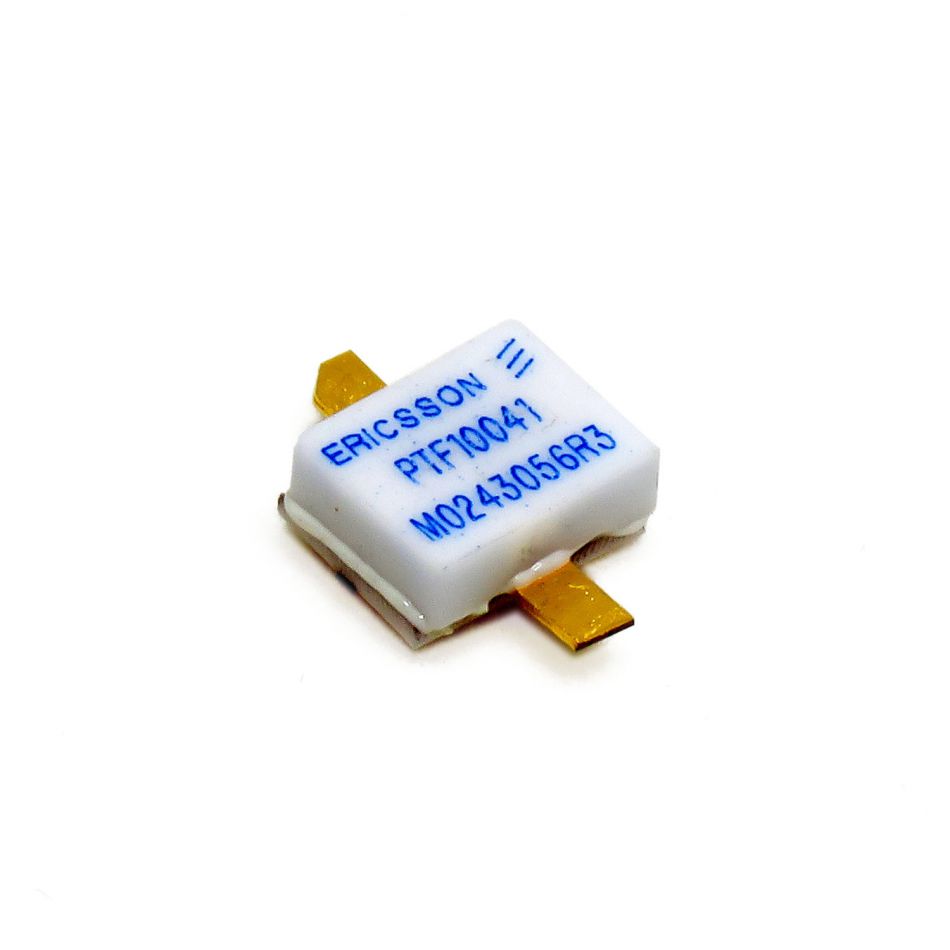

RF power LD MOSFET, 26V, 12W

Order code:	PTF10041
	RF power LD MOSFET, 26V, 12W ERICSSON PTF10041
Conditions:	N (The product is brand new)
Output power:	12 W
Dissipated power (Ptot):	58 W
Drain-source voltage (Vds max):	64 V
Supply voltage:	26 V
Mounting or package:	SMD
Frequency bands:	UHF

Go to product page PTF10041

RF silicon MOSFET power transistor, 12.5V, 75W, 20A

Order code:	RD70HVF1
	RF silicon MOSFET power transistor, 12.5V, 75W, 20A MITSUBISHI RD70HVF1
Conditions:	N (The product is brand new)
Output power:	75 W
Dissipated power (Ptot):	150 W
Drain current (Id max):	20 A
Drain-source voltage (Vds max):	30 V
Supply voltage:	12.5 V
Mounting or package:	flange
Frequency bands:	UHF, VHF

Go to product page RD70HVF1
