Brand: TIL
Manufacturer code: LPF 18s
Order code: FLP-18G
SMA plug / SMA jack connectorized 18 GHz low-pass filter
Product conditions: N
$52.35
/ pc
(VAT tax not included)
| Availability | |
|---|---|
| Stock (immediate dispatch) |
13 pcs |
| Volume discounts | ||
|---|---|---|
| Q.ty | Unit Price | Ext. price |
| 1+ | $52.35 | $52.35 |
| 3+ | $49.65 | $148.96 |
| 6+ | $46.95 | $281.72 |
| 10+ | $44.80 | $447.95 |
| 20+ | $42.64 | $852.73 |
| 40+ | $40.48 | $1,619.10 |
(VAT tax not included) |
||
| Compliance | |
|---|---|
| Country of origin | HU |
| EU Tariff Code | 85423990 |
| Weight | 8.00 g |
| RoHS | Yes |
| REACH | Not available |
-
18 GHz
-
50 Ω
-
10 W
-
coaxial
-
SMA plug / SMA jack
-
40 mm

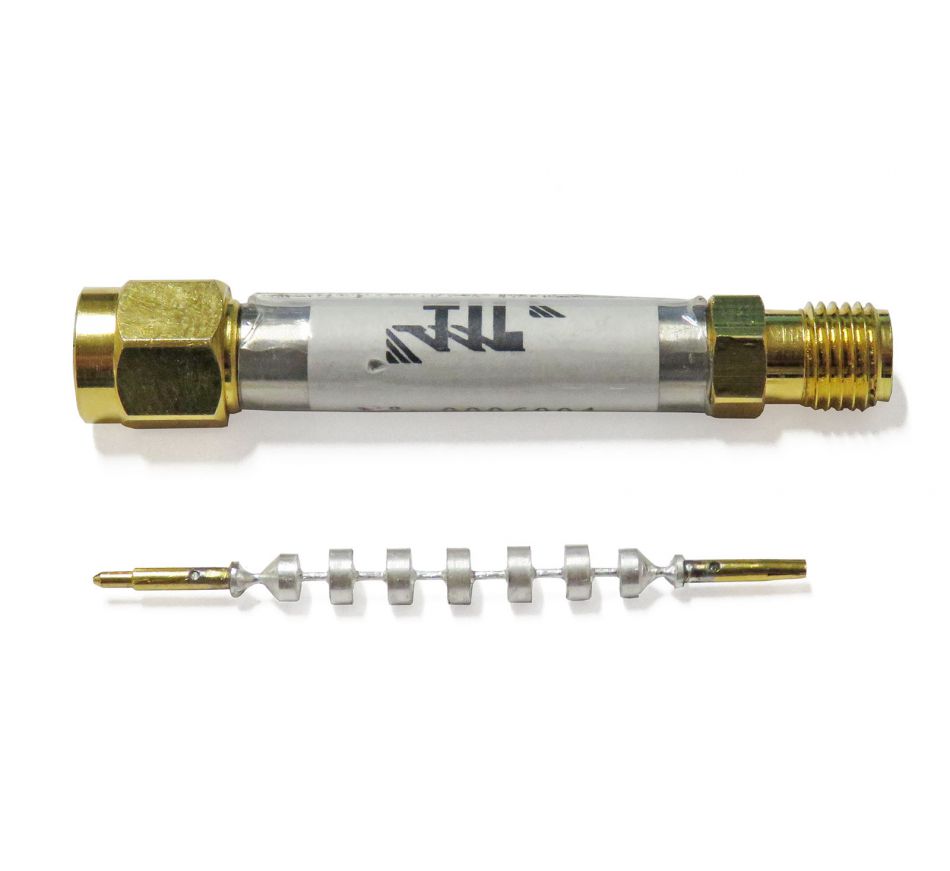

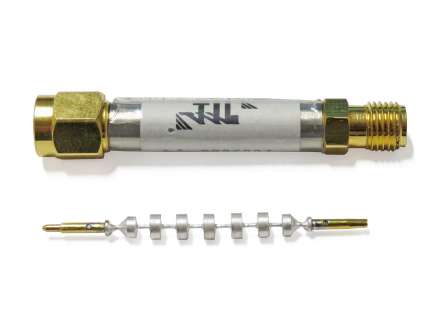

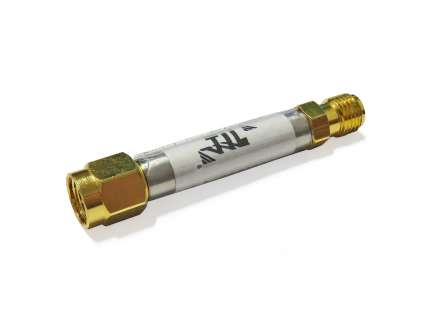

SMA plug / SMA jack connectorized 18 GHz low-pass filter
SMA plug / SMA jack connectorized low-pass filter
SPECIFICATIONS:
- Frequency: 18 GHz (±200 MHz)
- Band: dc - 19 GHz @ -3 dB

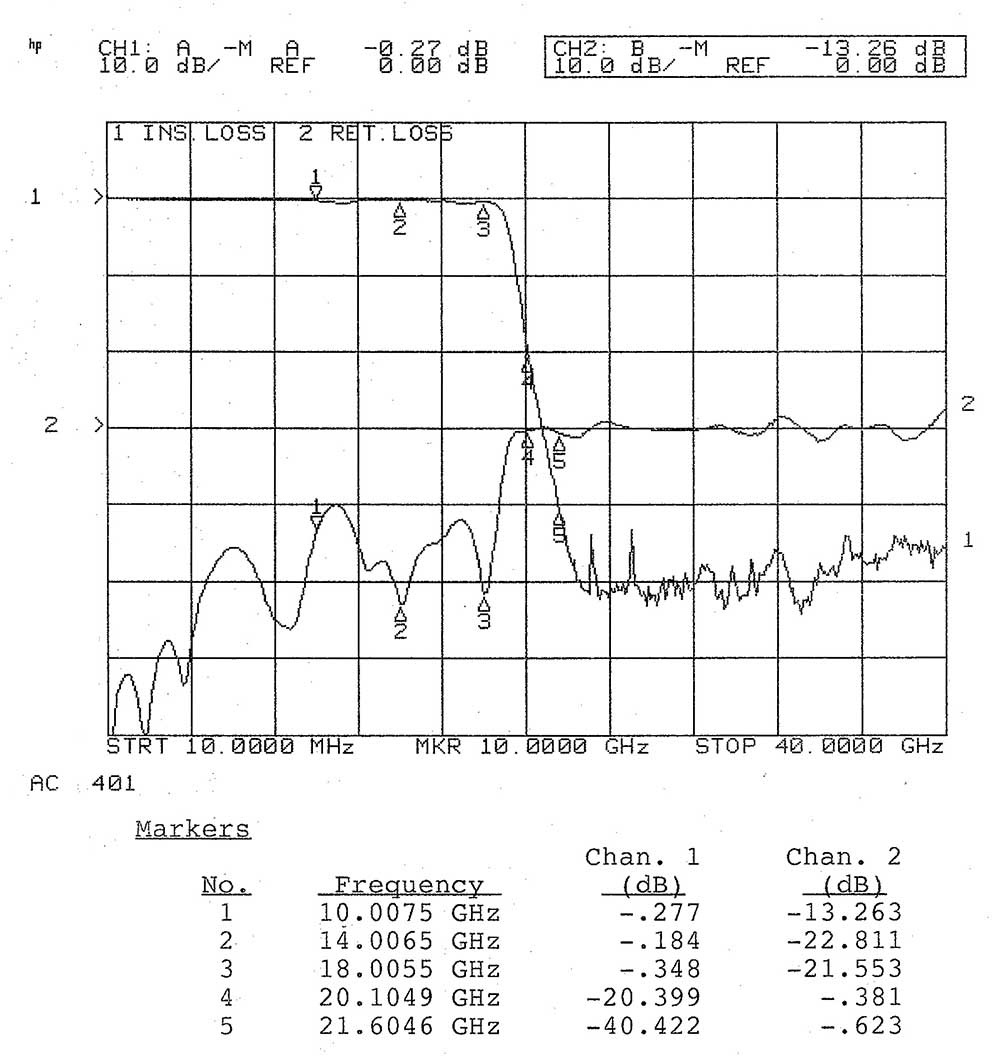

- Insertion loss:
0.5 dB in band (typical)
20 dB @ 20.3 GHz (typical)
40 dB @ 21.8 GHz (typical)
- Return loss: 11 dB (typical)
- Maximum power: 10 W
- Dimension: 40 mm (length)
