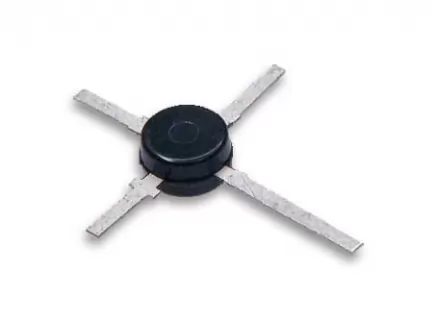

Telefunken TDA1061 PIN diodes attenuator integrated circuit

TDA1061 Telefunken
PIN diodes attenuator integrated circuit Brand: Telefunken Manufacturer code: TDA1061 Order code: TDA1061 Category: PIN diodes Product conditions: N (0 comments)

Specifications

Application:
AGC
RF attenuator
Reverse voltage (V_R):
30 V
Forward current (I_F) :
50 mA
Series resistance (R_s @ I_F) :
5 Ohm @ 10 mA
Package:
TO-50
Mounting:
SMD
Configuration:
Pi trio
Junction temp. (T_j) (°C):
125

Documents (1)

	Title	Dimension
	TDA1061 - Datasheet	36.5 kB

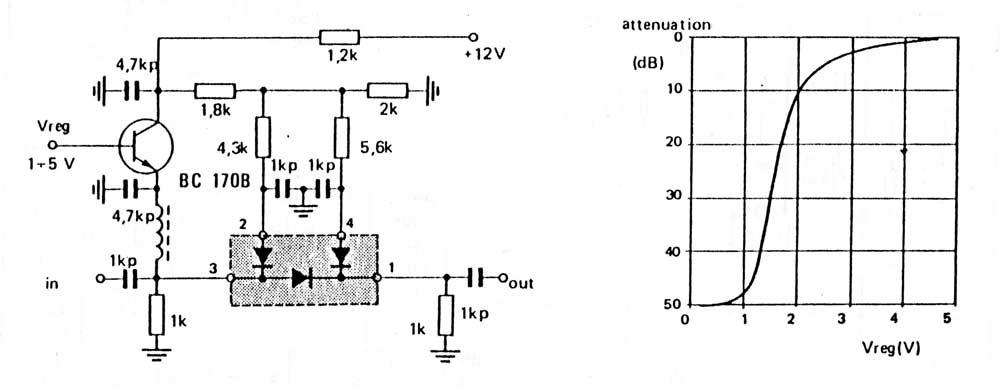

This is a monolithic integrated circuit that contains three PIN diodes connected to form a pi-greek circuit. It is used as variable attenuator in HF - VHF - UHF up to 1.5 GHz bands, the attenuation range is from 1.5 to about 45 dB (depending on the frequency). It is driven by a common transistor like BC107 or BC258 or other similar, it can be used as RF attenuator or fast AGC circuit in receivers IF, etc... it is pin-compatible and similar to TDA 1053.
