Brand: Tangshan
Manufacturer code: TP0855
Order code: Q-9M00

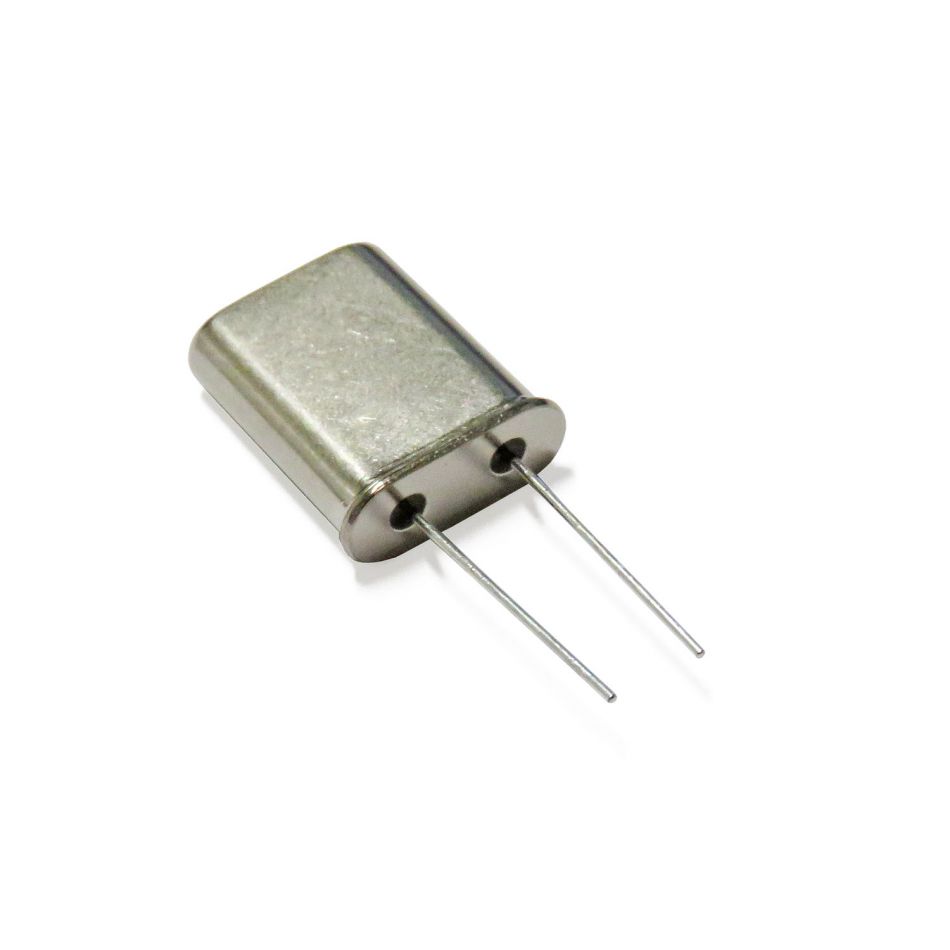

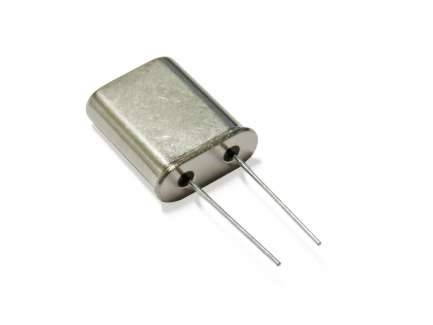

Crystal unit, 9 MHz, HC-49/U

Product conditions: N
$1.12
/ pc
(VAT tax not included)
Minimum: 1 pc - Multiple: 1 pc
Stock
217 pcs ready to ship
Volume discounts
Quantity Unit Price You save
1+ $1.12 -
4+ $0.95 15%
10+ $0.81 27%
50+ $0.72 35%
100+ $0.67 40%
250+ $0.63 43%
(VAT tax not included)
Compliance
EU Tariff Code 85416000
Weight 1.00 g
RoHS Yes
REACH Not available
  • 9 MHz
  • 30 pF
  • fundamental
  • 40 ppm
  • HC-49/U
  • thru-hole
  • 11 mm
  • 14 mm

Crystal unit, 9 MHz, HC-49/U

Suitable for filters and LSB

TECHNICAL PARAMETERS:
- CL: 30 pF
- C0: <7 pF
- RR: <35 Ω
- CAL.TOL.:  ±25 ppm @ 25 °C
- IR: ≥500 MΩ
- TEM.TOL.: ±40 ppm @ -20 / +70 °C

Q-9M00
/
Crystals
  Title Dimension
Datasheet 215.8 kB
