Brand: Siemens
Manufacturer code: BF987
Order code: BF987

N-Channel MOSFET amplifier

Product conditions: N
$0.66
/ pc
(VAT tax not included)
Minimum: 1 pc - Multiple: 1 pc
Stock
4866 pcs ready to ship
Volume discounts
Quantity Unit Price You save
1+ $0.66 -
5+ $0.61 8%
10+ $0.55 17%
30+ $0.50 25%
100+ $0.44 33%
250+ $0.39 42%
500+ $0.33 50%
1000+ $0.29 57%
(VAT tax not included)
Compliance
EU Tariff Code 85412900
Weight 1.00 g
RoHS No
REACH Not available
  • MOSFET
  • N-channel
  • single-gate
  • 20 V
  • 30 mA
  • 300 mW
  • TO-92
  • thru-hole

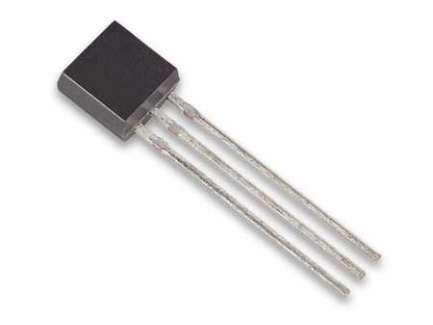

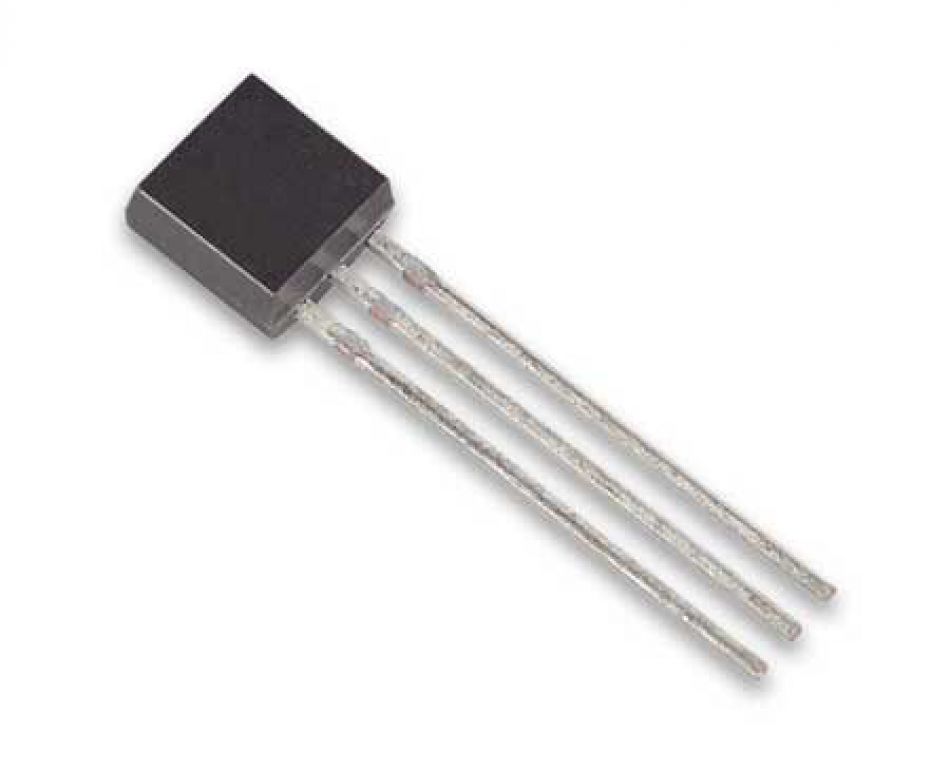

N-Channel MOSFET amplifier

This MOSFET is little known but it has very good performances: low noise 1dBNF at 200 MHz with 25dBG 10 mA, it is a very good HF stage up to 30dBG and it is rated for medium level signals, for HF, VHF and UHF general purpose amplifier, mixer and oscillator

- Forward trasconduttance; 16 mS
- Gate input capacitance: 2.7 pF
- Reverse transfer capacitance: 0.035 pF
- Output capacitance: 1 pF

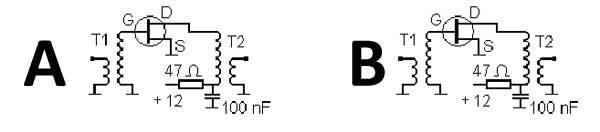

Simple application diagram, this MOSFET is suggested for all IF and HF applications, for VHF it is better to use a tuned circuit

A
T1 + T2: TR-607007 tranformer

flat band from 80 KHz to 80 MHz, P1dB +14dBm @ 14 GHz

B
T1 + T2: 2 + 8 coils winding on FT-50-43 toroid

3 dBNF 20 dBG @ 10 - 50 MHz

BF987
/
  Title Dimension
Datasheet 79.9 kB
