new
Brand: Rogers Corp
Manufacturer code: RO4350B-0040-1ED/1ED
Order code: RO4350B-0040-10S0

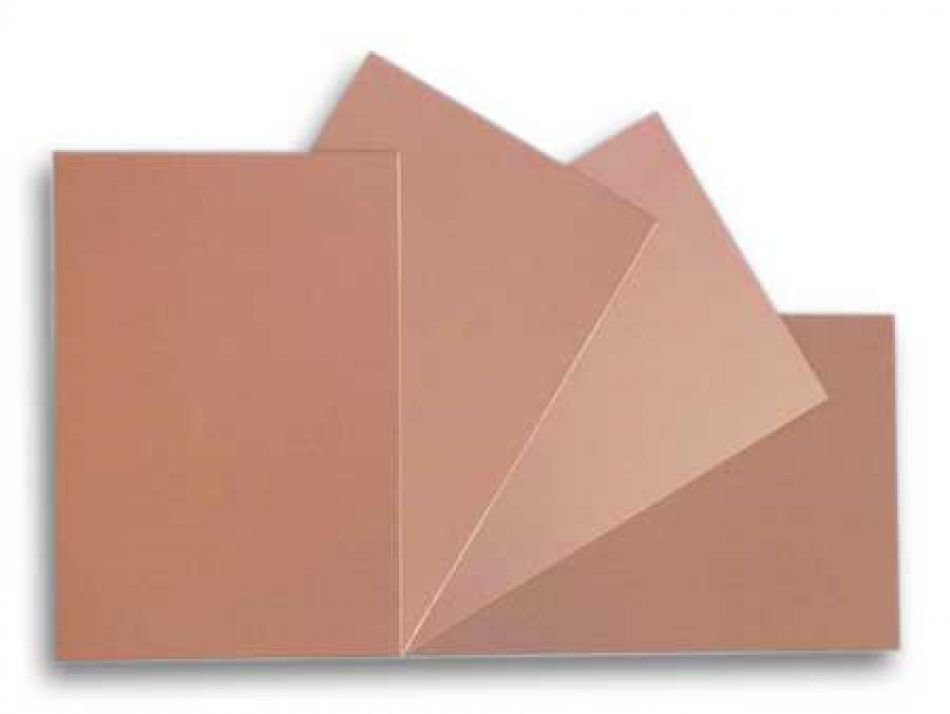

High frequency laminate RO4350B, εr=3.48, 4mils, 1OZ, 457x610mm
Product conditions: N
on request
| Availability | |
|---|---|
| Stock (immediate dispatch) |
0 pcs |
| Lead time (factory standard) |
5 wks. |
| Prezzo |
|---|
| Request offer |
| Compliance | |
|---|---|
| EU Tariff Code | 74102100 |
| Weight | 185.00 g |
| RoHS | Yes |
| REACH | SVHC not present |
-
RO4350B
-
woven glass reinforced hydrocarbon/ceramics
-
3.48
-
0.101 mm (0.004 in)
-
1 OZ
-
double sided
-
0.0037 @ 10 GHz
-
457 x 610 mm
-
18 x 24 in
High frequency laminate RO4350B, εr=3.48, 4mils, 1OZ, 457x610mm
RO4350B™ Laminates
Rogers RO4350B materials are proprietary woven glass reinforced hydrocarbon/ceramics with electrical performance close to PTFE/woven glass and the manufacturability of epoxy/glass.
RO4350B laminates provide tight control on dielectric constant (Dk) and maintain low loss while utilizing the same processing method as standard epoxy/glass. Available at a fraction of the cost of conventional microwave laminates, RO4350B laminates do not require the special through-hole treatments or handling procedures as PTFE based materials. These materials are UL 94 V-0 rated for active devices and high power RF designs.
Features
- Dk of 3.48 +/- 0.05
- Dissipation factor of 0.0037 @ 10 GHz
- Low Z-axis coefficient of thermal expansion @ 32 ppm/°C
Benefits
- Processes like FR-4 at lower fabrication cost
- Competitively priced
- Excellent dimensional stability
