Brand: Rogers Corp
Manufacturer code: RO4003C-0120 .5ED/.5ED
Order code: RO4003C-0120-05S1

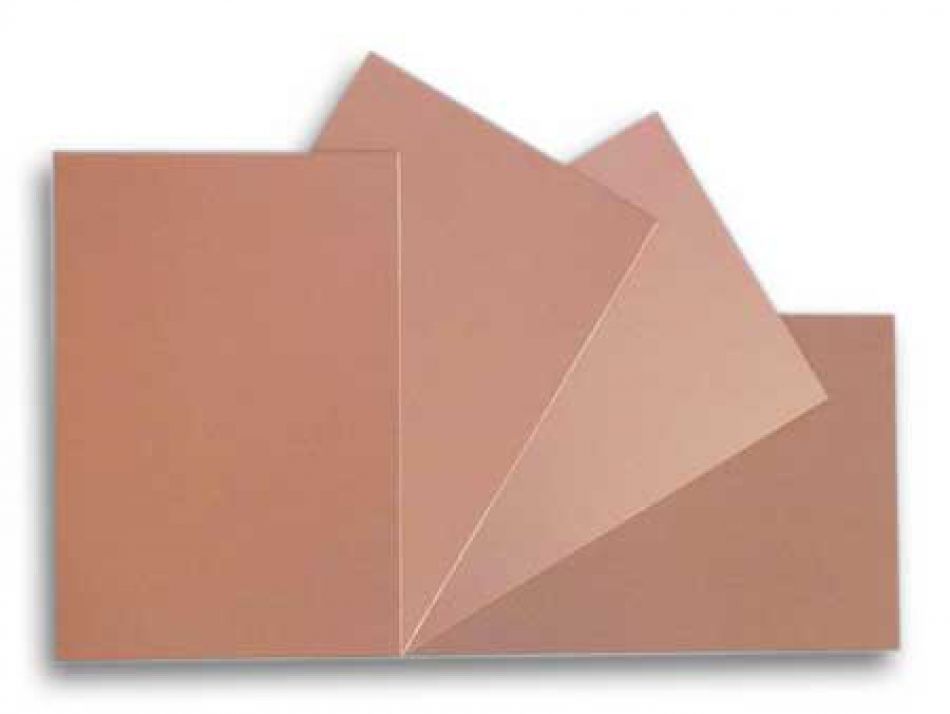

Double side laminate with polyester/ceramic dielectric
Product conditions: N
$82.04
/ pc
(VAT tax not included)
Other available options
RO4003C-0120-05S4 -
114 x 152 mm
RO4003C-0120-05S3 -
152 x 228 mm
RO4003C-0120-05S2 -
228 x 305 mm | Availability | |
|---|---|
| Stock (immediate dispatch) |
50 pcs |
| Volume discounts | ||
|---|---|---|
| Q.ty | Unit Price | Ext. price |
| 1+ | $82.04 | $82.04 |
| 5+ | $74.59 | $372.95 |
| 10+ | $67.80 | $678.01 |
| 20+ | $62.78 | $1,255.56 |
| 30+ | $59.79 | $1,793.62 |
(VAT tax not included) |
||
| Compliance | |
|---|---|
| Country of origin | BE |
| EU Tariff Code | 74102100 |
| Weight | 140.00 g |
| RoHS | Yes |
| REACH | SVHC not present |
-
RO4003C
-
polyester/ceramic
-
3.38
-
0.305 mm (0.012 in)
-
0.5 OZ
-
double sided
-
0.0027 @ 10 GHz
-
9.8 pF
-
305 x 457 mm
-
12 x 18 in
Double side laminate with polyester/ceramic dielectric
| Calculation of the track width (in mm) for an impedance of: | ||||||
| 12.5Ω | 25Ω | 35.3Ω | 50Ω | 70.7Ω | 75Ω | 100Ω |
| 4.2 | 1.85 | 1.2 | 0.7 | 0.39 | 0.34 | 0.18 |
RO4003 and RO4350 ceramic loaded thermoset plastic resin laminates were developed as an alternative to PTFE laminates for microwave frequency applications, they have better performaces than traditional FR4 even keeping the same processing and assembling cost.
RO4350 is flame retardant version of RO4003, both laminates have a better rigidity compared with PTFE types and same as FR4.
These laminates are manufactured with tight tolerances of εr and thickness in order to reach a very good repeatability.
