RF band-pass filters

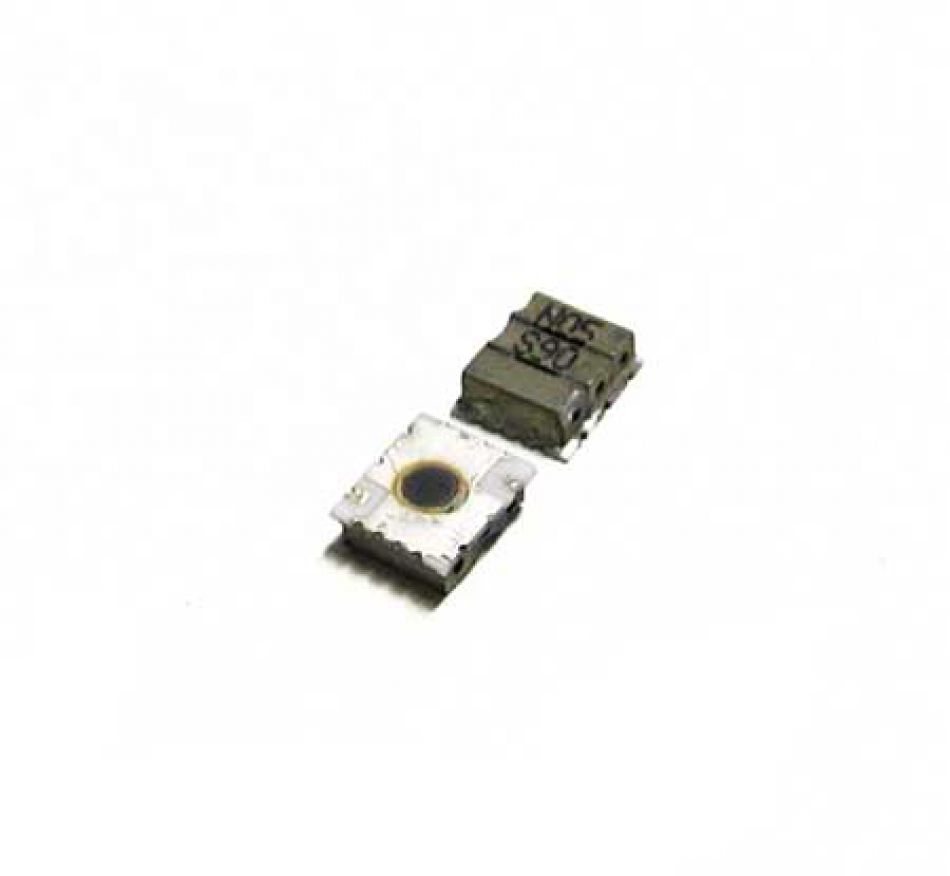

947.5 MHz ceramic band-pass filter GIGAFIL®, 3 poles

Order code:	FG-947
	947.5 MHz ceramic band-pass filter GIGAFIL®, 3 poles muRata DFC3R947P025HHB-TA2110
Conditions:	N- (The product is brand new but it comes from an old production)
Center freq. min. (or fixed):	947.5 MHz
Bandwidth:	25 MHz
Insertion loss (max.):	3 dB
Input/output impedance :	50 Ω
Product type:	PCB mount
Mounting:	SMD
Package:	8.5 x 8.5 mm

Go to product page FG-947

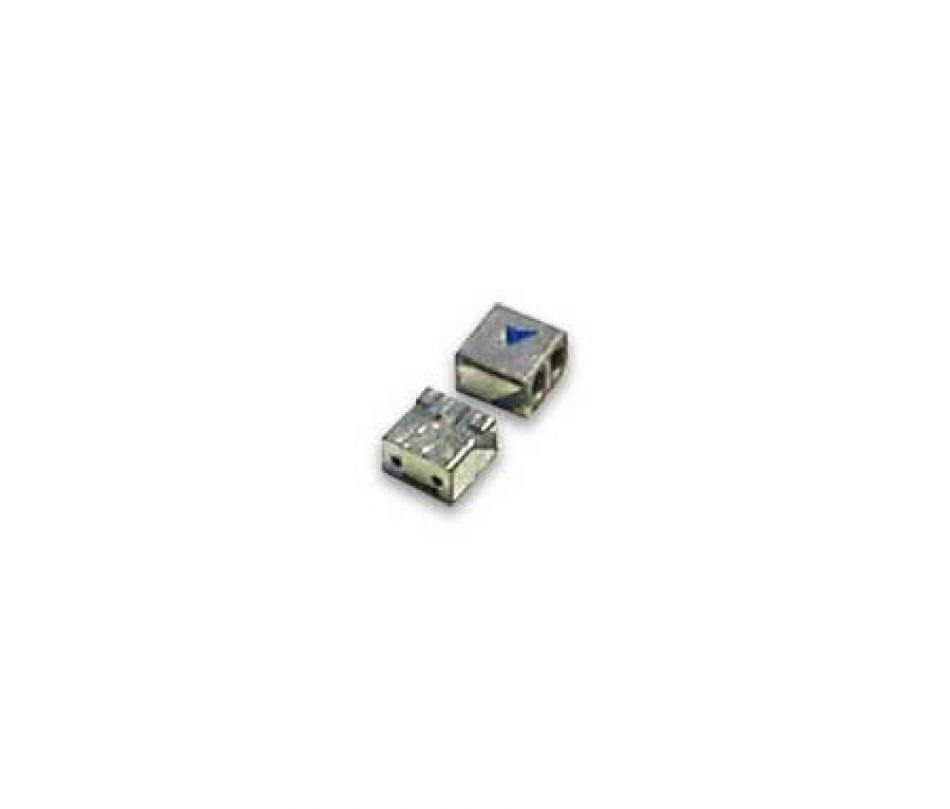

948 MHz ceramic band-pass filter, 4 poles

Order code:	FG-948
	948 MHz ceramic band-pass filter, 4 poles Racal-MESL
Conditions:	N- (The product is brand new but it comes from an old production)
Center freq. min. (or fixed):	948 MHz
Bandwidth:	12 MHz
Input/output impedance :	50 Ω
Product type:	PCB mount
Mounting:	thru-hole
Package:	29 x 7 mm

Go to product page FG-948

959 MHz ceramic band-pass filter GIGAFIL®, 3 poles

Order code:	FG-959-A
	959 MHz ceramic band-pass filter GIGAFIL®, 3 poles muRata
Conditions:	N- (The product is brand new but it comes from an old production)
Center freq. min. (or fixed):	959 MHz
Bandwidth:	10 MHz
Input/output impedance :	50 Ω
Product type:	PCB mount
Mounting:	SMD
Package:	15 x 10 mm

Go to product page FG-959-A

959 MHz ceramic band-pass filter, 2 poles

Order code:	FG-959-B
	959 MHz ceramic band-pass filter, 2 poles SGC Technologies SC2R959
Conditions:	N- (The product is brand new but it comes from an old production)
Center freq. min. (or fixed):	959 MHz
Bandwidth:	15 MHz
Input/output impedance :	50 Ω
Product type:	PCB mount
Mounting:	SMD
Package:	19 x 9 mm

Go to product page FG-959-B

98 MHz ceramic band-pass filter, 2 poles

Order code:	FG-98
	98 MHz ceramic band-pass filter, 2 poles muRata LK-BP88001A01
Conditions:	N- (The product is brand new but it comes from an old production)
Center freq. min. (or fixed):	98 MHz
Bandwidth:	20 MHz
Input/output impedance :	50 Ω
Product type:	PCB mount
Mounting:	thru-hole
Package:	15 x 6 mm - h 11

Go to product page FG-98

1747.5 MHz band-pass dielectric filter, 3 poles

Order code:	FG-1747-B
	1747.5 MHz band-pass dielectric filter, 3 poles SANYO TDF17323
Conditions:	N- (The product is brand new but it comes from an old production)
Center freq. min. (or fixed):	1747.5 MHz
Bandwidth:	75 MHz
Insertion loss (max.):	3.7 dB
Input/output impedance :	50 Ω
Product type:	PCB mount
Mounting:	SMD
Package:	6.2 x 5.3 mm - h 2.3 mm

Go to product page FG-1747-B

2-poles ceramic band-pass filter 2450 MHz

Order code:	FG-2450
	2-poles ceramic band-pass filter 2450 MHz Epcos B69812-N2457-A201
Conditions:	N- (The product is brand new but it comes from an old production)
Center freq. min. (or fixed):	2450 MHz
Bandwidth:	100 MHz
Insertion loss (max.):	1 dB
Input/output impedance :	50 Ω
Product type:	PCB mount
Mounting:	SMD
Package:	2.55 x 2.5 mm

Go to product page FG-2450
