RF band-pass filters

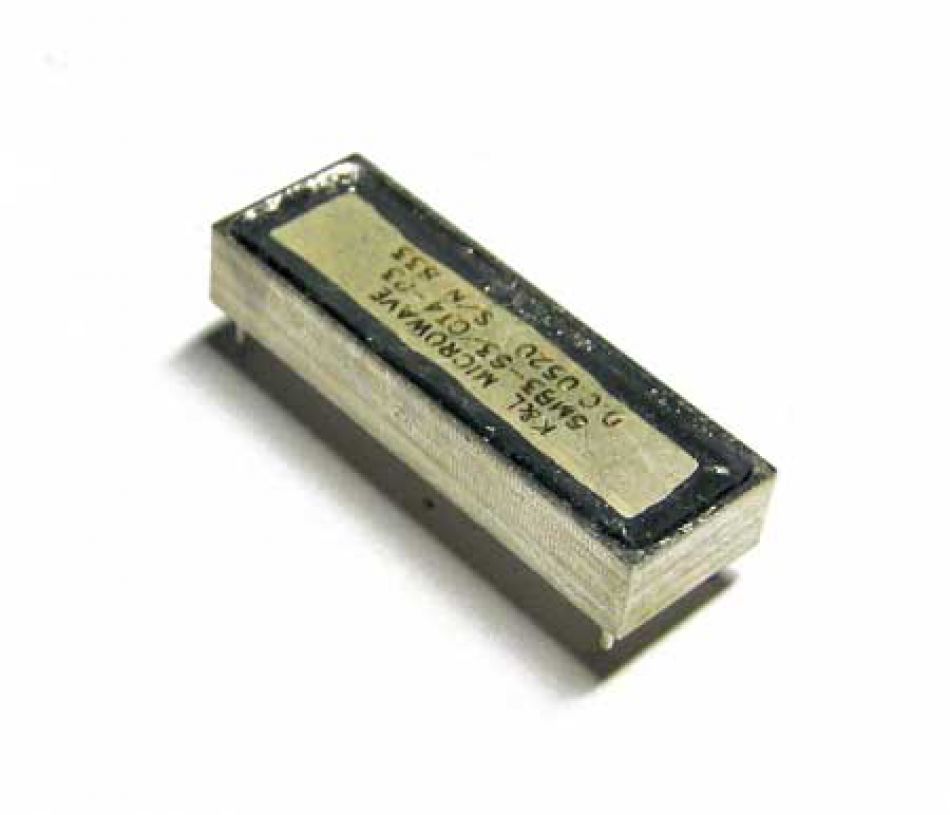

63 MHz band-pass filter, 6 poles

Order code:	F-63M-V2
	63 MHz band-pass filter, 6 poles K&L Microwave 6MB3-63-GT4/P3
Conditions:	N- (The product is brand new but it comes from an old production)
Center freq. min. (or fixed):	63 MHz
Bandwidth:	4 MHz
Selectivity (min.) :	40 dB
Input/output impedance :	50 Ω
Product type:	PCB mount
Mounting:	thru-hole
Package:	38 x 12.8 mm - h 6.5 mm

Go to product page F-63M-V2

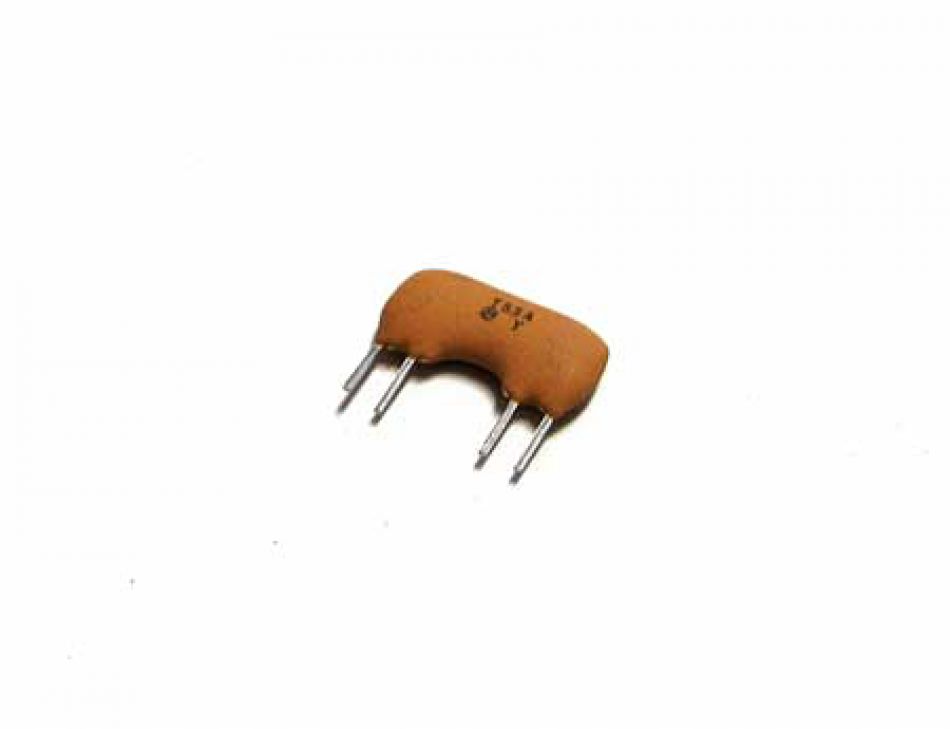

6 MHz ceramic band-pass filter

Order code:	F-6M-F9
	6 MHz ceramic band-pass filter muRata SFE6.0MB
Conditions:	N- (The product is brand new but it comes from an old production)
Center freq. min. (or fixed):	6 MHz
Bandwidth:	180 kHz
Selectivity (min.) :	40 dB
Input/output impedance :	470 Ω
Product type:	PCB mount
Mounting:	thru-hole
Package:	10 x 3 mm - h 7 mm

Go to product page F-6M-F9

6.5 MHz ceramic band-pass filter

Order code:	F-6M5-W3
	6.5 MHz ceramic band-pass filter muRata SFT6.5MA
Conditions:	N- (The product is brand new but it comes from an old production)
Center freq. min. (or fixed):	6.5 MHz
Bandwidth:	100 kHz
Insertion loss (max.):	9 dB
Selectivity (min.) :	50 dB
Input/output impedance :	470 Ω
Product type:	PCB mount
Mounting:	thru-hole
Package:	15 x 3 mm - h 7.5 mm

Go to product page F-6M5-W3

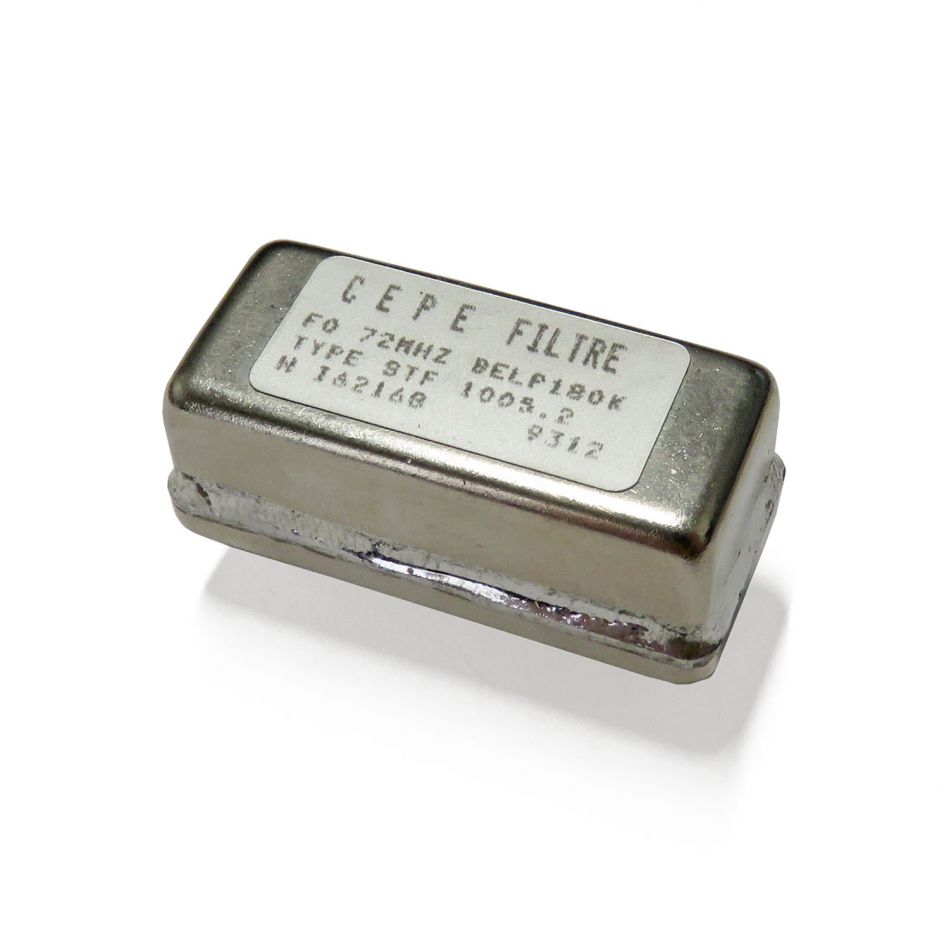

72 MHz band-pass filter

Order code:	F-72M-K9
	72 MHz band-pass filter CEPE Filtre STF 1005.2
Conditions:	N- (The product is brand new but it comes from an old production)
Center freq. min. (or fixed):	72 MHz
Bandwidth:	180 kHz
Selectivity (min.) :	70 dB
Input/output impedance :	50 Ω
Product type:	PCB mount
Mounting:	thru-hole
Package:	30 x 18 mm - h 14 mm

Go to product page F-72M-K9

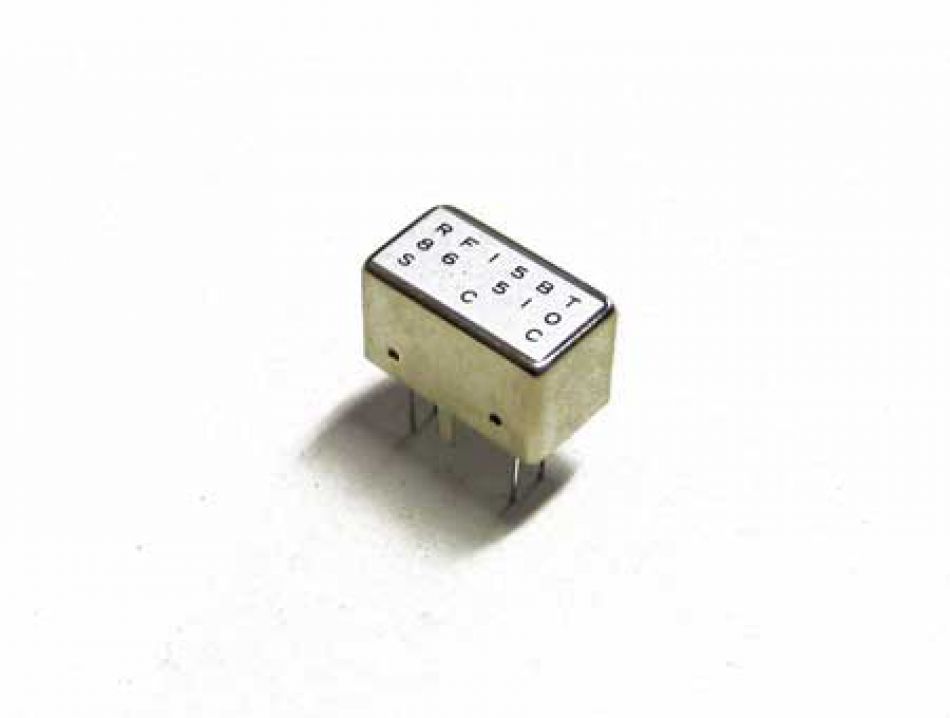

86.51 MHz crystal band-pass filter, 4 poles

Order code:	F-86M51-A4
	86.51 MHz crystal band-pass filter, 4 poles
Conditions:	N- (The product is brand new but it comes from an old production)
Center freq. min. (or fixed):	86.51 MHz
Bandwidth:	16 kHz
Selectivity (min.) :	70 dB
Product type:	PCB mount
Mounting:	thru-hole
Package:	18 x 10 mm - h 10.5 mm

Go to product page F-86M51-A4

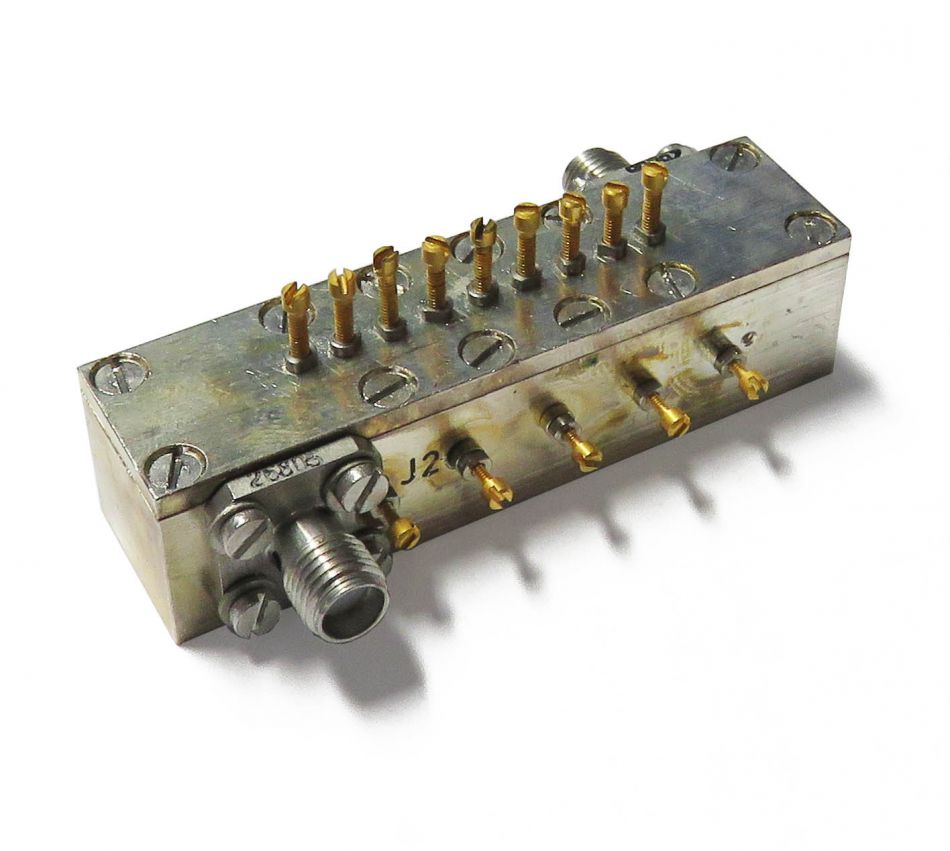

Tunable band-pass filter 10.4 - 10.87 GHz, SMA female

Order code:	FBP-10.4-10.9G
	Tunable band-pass filter 10.4 - 10.87 GHz, SMA female TLV100073C
Conditions:	N (The product is brand new)
Center freq. min. (or fixed):	10.4 GHz
Center freq. max.:	10.87 GHz
Bandwidth:	40 MHz
Insertion loss (max.):	1.5 dB
Input/output impedance :	50 Ω
Product type:	coaxial
Mounting:	SMA female
Package:	100 x 26 mm - h 22 mm

Go to product page FBP-10.4-10.9G

1.65 GHz band-pass filter, SMA female

Order code:	FBP-1650
	1.65 GHz band-pass filter, SMA female
Conditions:	N (The product is brand new)
Center freq. min. (or fixed):	1.65 GHz
Bandwidth:	200 MHz
Insertion loss (max.):	2 dB
Input/output impedance :	50 Ω
Product type:	coaxial
Mounting:	SMA female
Package:	125 x 30 mm - h 30 mm

Go to product page FBP-1650

3.2 GHz band-pass filter, SMA male/female

Order code:	FBP-3200
	3.2 GHz band-pass filter, SMA male/female K&L Microwave X5FVSP-3200.5/E67-XO/XOP
Conditions:	N (The product is brand new)
Center freq. min. (or fixed):	3.2 GHz
Bandwidth:	88 MHz
Insertion loss (max.):	1 dB
Selectivity (min.) :	70 dB
Input/output impedance :	50 Ω
Product type:	coaxial
Mounting:	SMA male/female
Package:	210 x 30 mm - h 30 mm

Go to product page FBP-3200

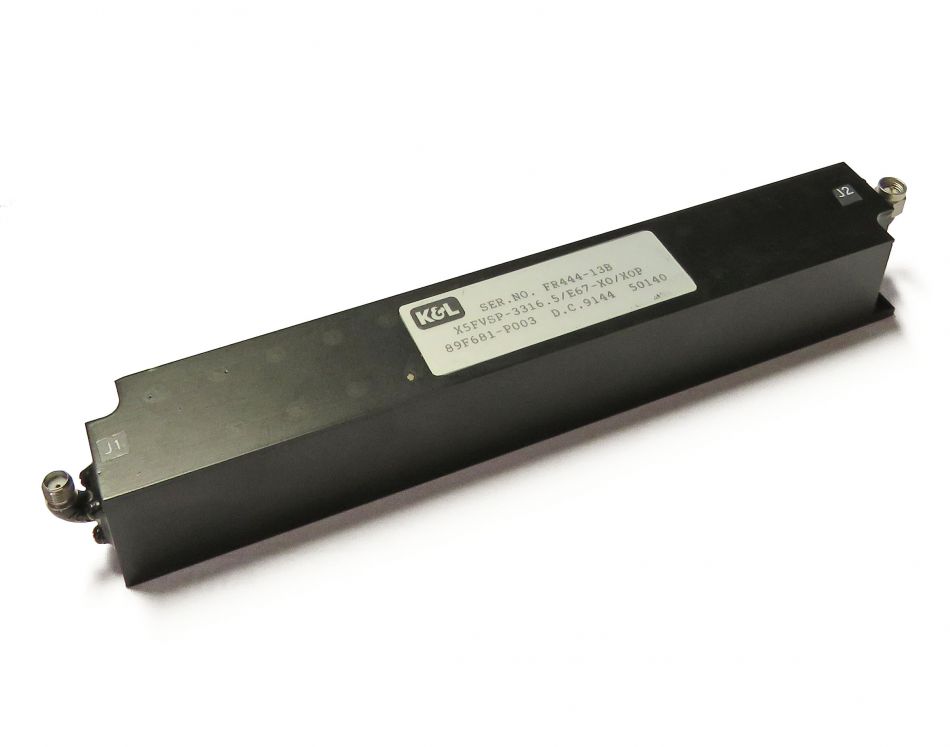

3.316 GHz band-pass filter, SMA male/female

Order code:	FBP-3316
	3.316 GHz band-pass filter, SMA male/female K&L Microwave X5FVSP-3316.5/E67-XO/XOP
Conditions:	N (The product is brand new)
Center freq. min. (or fixed):	3.316 GHz
Bandwidth:	88 MHz
Insertion loss (max.):	1 dB
Selectivity (min.) :	70 dB
Input/output impedance :	50 Ω
Product type:	coaxial
Mounting:	SMA male/female
Package:	210 x 30 mm - h 30 mm

Go to product page FBP-3316

3.5 GHz band-pass filter, SMA male/female

Order code:	FBP-3500
	3.5 GHz band-pass filter, SMA male/female K&L Microwave X5FVSP-3500.5/E67-XO/XOP
Conditions:	N (The product is brand new)
Center freq. min. (or fixed):	3.5 GHz
Bandwidth:	86 MHz
Insertion loss (max.):	1 dB
Selectivity (min.) :	70 dB
Input/output impedance :	50 Ω
Product type:	coaxial
Mounting:	SMA male/female
Package:	210 x 30 mm - h 30 mm

Go to product page FBP-3500

3.566 GHz band-pass filter, SMA male/female

Order code:	FBP-3566
	3.566 GHz band-pass filter, SMA male/female K&L Microwave X5FVSP-3566.5/E67-XO/XOP
Conditions:	N (The product is brand new)
Center freq. min. (or fixed):	3.566 GHz
Bandwidth:	87 MHz
Insertion loss (max.):	1 dB
Selectivity (min.) :	70 dB
Input/output impedance :	50 Ω
Product type:	coaxial
Mounting:	SMA male/female
Package:	210 x 30 mm - h 30 mm

Go to product page FBP-3566

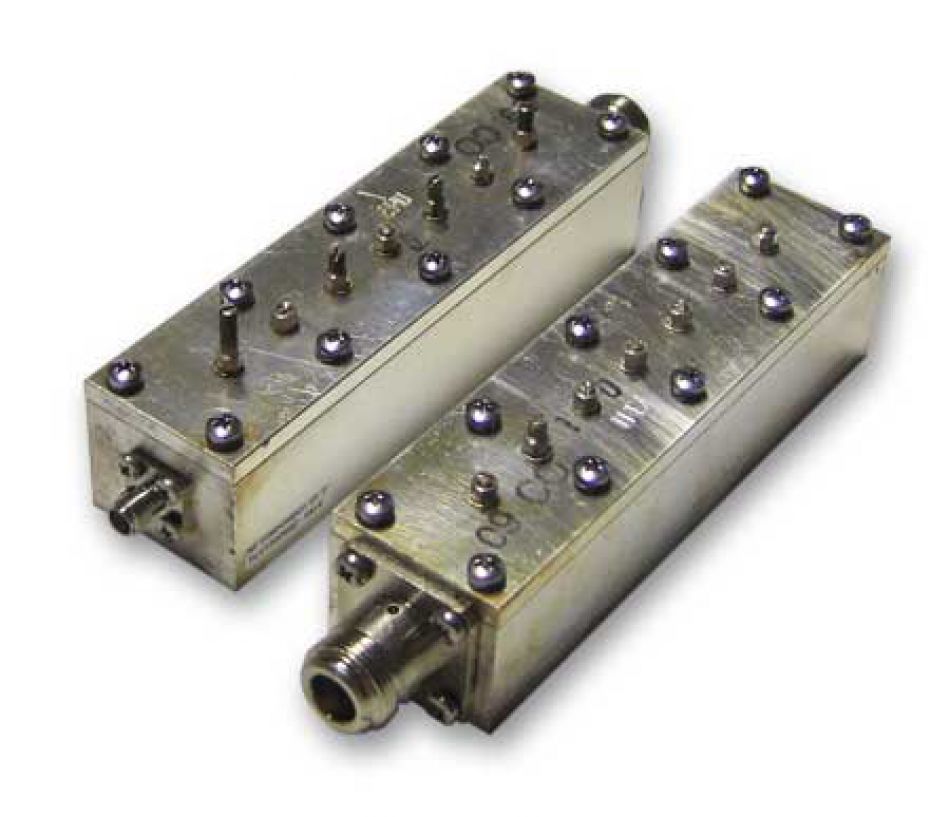

4.8 - 5.4 GHz tunable band-pass filter , N female/SMA ...

Order code:	FBP-4.8-5.4G
	4.8 - 5.4 GHz tunable band-pass filter , N female/SMA female
Conditions:	N (The product is brand new)
Center freq. min. (or fixed):	4.8 GHz
Center freq. max.:	5.4 GHz
Bandwidth:	30 MHz
Insertion loss (max.):	1.5 dB
Input/output impedance :	50 Ω
Product type:	coaxial
Mounting:	N female/SMA female
Package:	118 x 32 mm - h 30 mm

Go to product page FBP-4.8-5.4G

5.8 - 11 GHz wide bandwidth band-pass filter, SMA female ...

Order code:	FBP-5.8-11G
	5.8 - 11 GHz wide bandwidth band-pass filter, SMA female connectors
Conditions:	N (The product is brand new)
Center freq. min. (or fixed):	8.4 GHz
Bandwidth:	5 GHz
Insertion loss (max.):	1.5 dB
Input/output impedance :	50 Ω
Product type:	coaxial
Mounting:	SMA female
Package:	58 x 15 mm - h 15 mm

Go to product page FBP-5.8-11G

7 -14 GHz wide bandwidth band-pass filter, SMA female

Order code:	FBP-7-14G
	7 -14 GHz wide bandwidth band-pass filter, SMA female
Conditions:	N (The product is brand new)
Center freq. min. (or fixed):	10.5 GHz
Bandwidth:	7 GHz
Insertion loss (max.):	1.5 dB
Input/output impedance :	50 Ω
Product type:	coaxial
Mounting:	SMA female
Package:	71 x 13 mm - h 13 mm

Go to product page FBP-7-14G

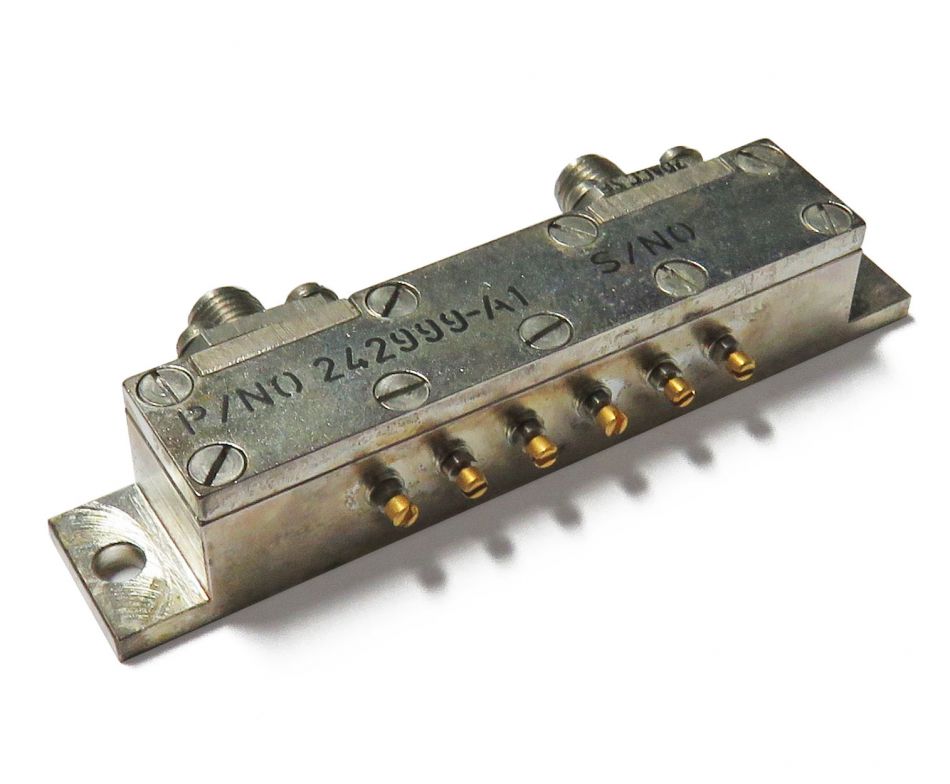

7 - 15 GHz wide bandwidth band-pass filter, SMA female

Order code:	FBP-7-15G
	7 - 15 GHz wide bandwidth band-pass filter, SMA female 242999-A1
Conditions:	N (The product is brand new)
Center freq. min. (or fixed):	11 GHz
Bandwidth:	8 GHz
Insertion loss (max.):	1.5 dB
Input/output impedance :	50 Ω
Product type:	coaxial
Mounting:	SMA female
Package:	71 x 13 mm - h 13 mm

Go to product page FBP-7-15G
