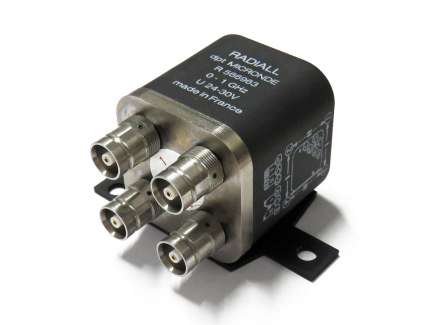

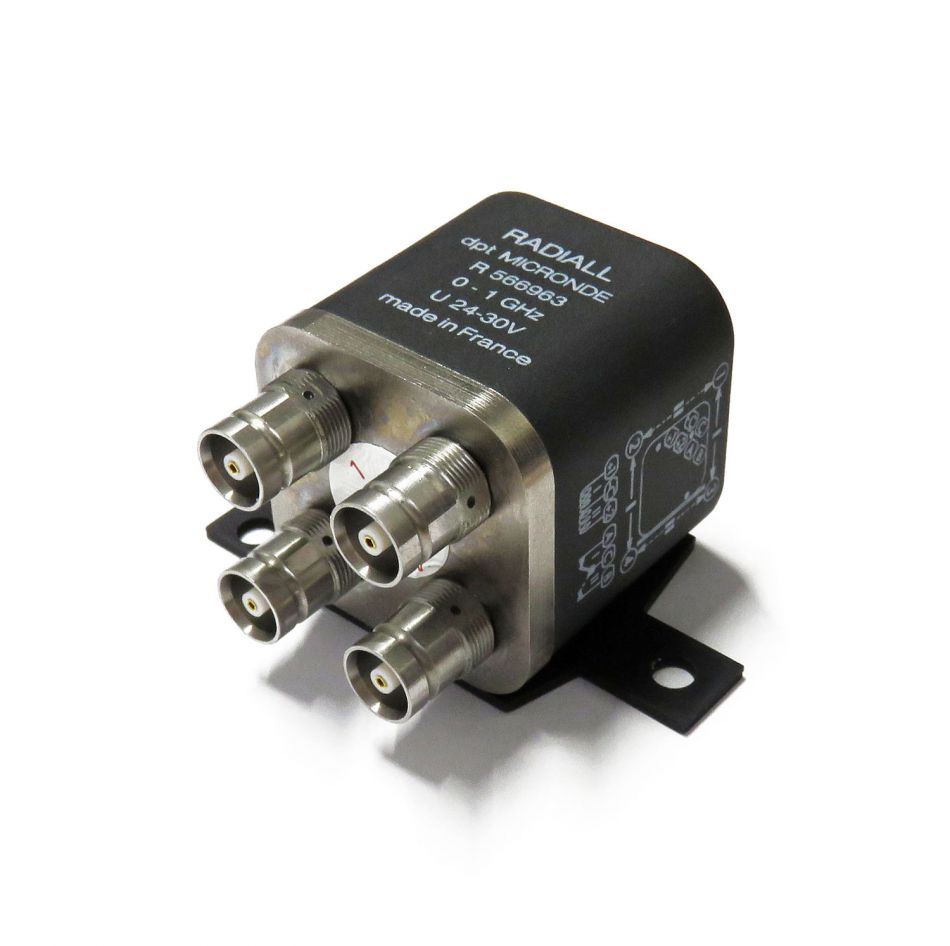

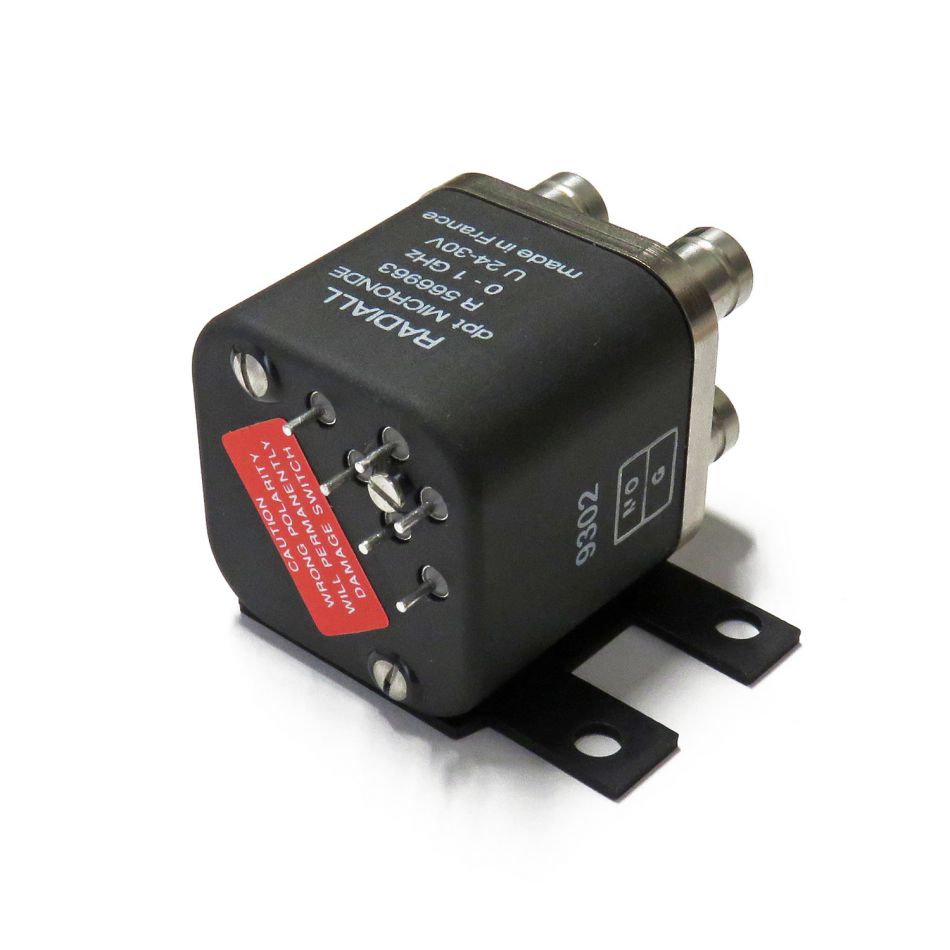

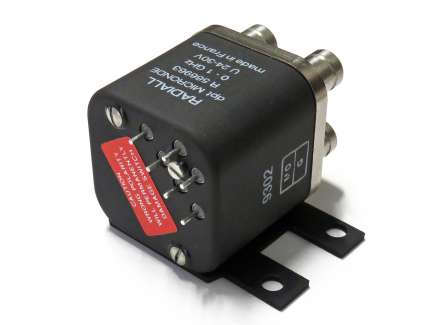

Radiall R566963000 Electromechanical coaxial relay, latching, tranfer, 28V

R566963000 - Electromechanical coaxial relay, latching, tranfer, 28V

Name: Electromechanical coaxial relay, latching, tranfer, 28V
Brand: Radiall
SKU: SW-16-56-01
Price: 71.50 EUR
Availability: InStock

Order code: SW-16-56-01Brand: RadiallManufacturer code: R566963000Category: Coaxial RF Switches & Relays

Product conditions: N-

Available in stock

10 Units ready for shipment

Quantity

Minimum: 1 pcs

Multiple: 1 pcs

$82.51 /pcs

$82.51

Prices

Q.ty Price each Extended price

1+ $82.51 $82.51

Immediate availability

Dedicated technical support

Secure SSL payments

- Max. frequency: dc- 1 GHz (usable up to 4 GHz)
- Insertion loss: 0.2 dB @ 1 GHz, 0.4 dB @ 4 GHz
- Isolation: >80 dB @ 1 GHz, >70 dB @ 4 GHz

Tranfer configuration with latching contact, cut-off and signal indicator contact, 1.6/5.6 (DIN 47295) female connectors.

This relays can be used also as SPDT by simply not connecting one of the four coaxial connectors.

Specifications

Application:
RF and high frequency
Configuration:
coaxial
Contact type:
Transfer
Coil voltage:
28 V
Coil resistance:
520 Ohm
Max. power handling:
400 W
Max. frequency:
1 GHz
Impedance:
75 Ohm
Connector type:
1.6/5.6 jack
Latching switch:
Yes

Datasheet

PDF · 443.5 kB

View

Compliance

Country of origin:
FR
EU Tariff Code:
85364110
Weight:
80.00 g
RoHS:
No
REACH:
Not available
