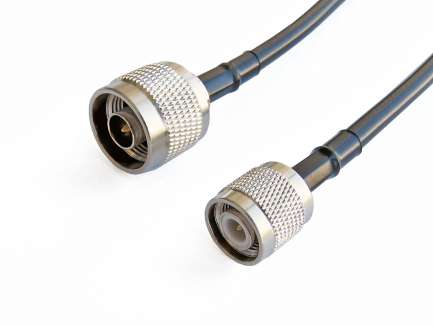

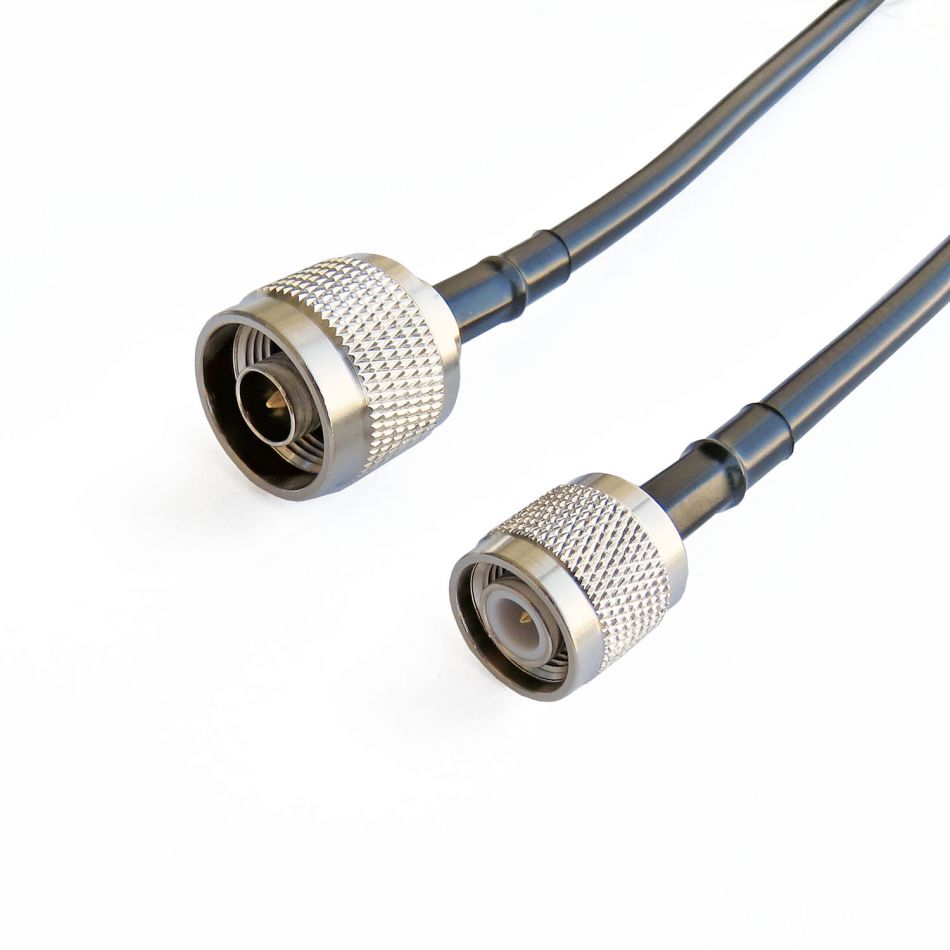

QAXIAL N02T02-12-00500 Cable assembly, N male/TNC male, RG223, 50 cm

N02T02-12-00500 QAXIAL
Cable assembly, N male/TNC male, RG223, 50 cm Brand: QAXIAL Manufacturer code: N02T02-12-00500 Order code: CIP-891 Category: Coaxial cable assemblies Product conditions: N (0 comments) Other available options Length CIP-890 - 25cm CIP-892 - 75cm CIP-893 - 1m CIP-894 - 1.5m CIP-895 - 2m CIP-896 - 3m

Specifications

Maximum frequency:
6 GHz
Impedance :
50 Ohm
Cable type :
RG223
Dielectric:
PE
Connectors type:
N > TNC
Connectors gender:
male > male
Length:
50 cm
Application:
general purpose
high shielding
Flexibility:
flexible

Documents (1)

	Title	Dimension
	N02T02-12-00500 - Datasheet	342.0 kB

Additional info

This product can be supplied with custom lenght >> contact us << for personalized pricing.

These cable assemblies are made with RG223/U flexible cable with outer diameter 5.4 mm, the main features are: a low insertion loss, the double shield that guarantees a good level of shielding even at high frequencies and a silver plated center conductor to reduce the attenuation. These cable assemblies are a better performing alternative to the cheaper RG58.
