Brand: QAXIAL
Manufacturer code: M07S15-03-00350
Order code: CIT-345

Cable assembly, MCX plug right angle/SMA female, RG316/D, 35 cm

Product conditions: N
$19.74
/ pc
(VAT tax not included)
Minimum: 1 pc - Multiple: 1 pc

Other available options

Availability
Stock
(immediate dispatch)
15 pcs
Lead time
(factory standard)
2 weeks
Volume discounts
Q.ty Unit Price Ext. price
1+ $19.74 $19.74
5+ $17.86 $89.28
10+ $15.97 $159.71
25+ $14.09 $352.18
50+ $12.20 $610.16
(VAT tax not included)
Compliance
Country of origin IT
EU Tariff Code 85444290
Weight 15.10 g
RoHS Yes
REACH SVHC not present
  • high temperature / high power
  • MCX > SMA
  • right angle plug > female
  • bulkhead
  • RG316/D
  • 35 cm
  • flexible
  • PTFE
  • 6 GHz
  • 50 Ohm

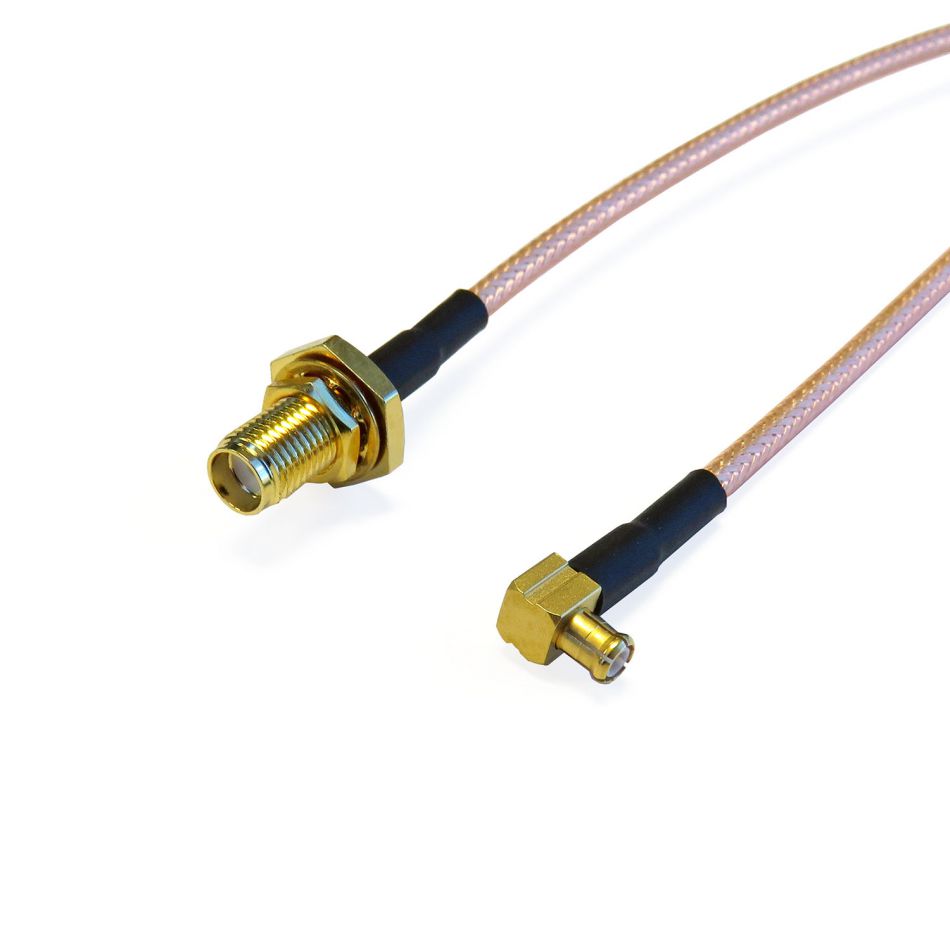

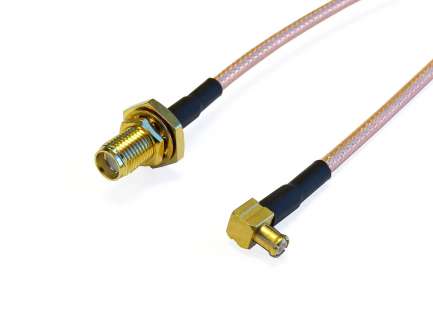

Cable assembly, MCX plug right angle/SMA female, RG316/D, 35 cm

This product can be supplied with custom lenght >> contact us << for personalized pricing.

These cable assemblies are made with flexible RG316/D double shield cable with outer diameter 2.9 mm, the main features are: high power in relation to the diameter, the double shield that guarantees a good level of shielding even at high frequencies. These cables are a better performing alternative to the standard RG316/U cable.

CIT-345
/
  Title Dimension
Datasheet 241.1 kB
