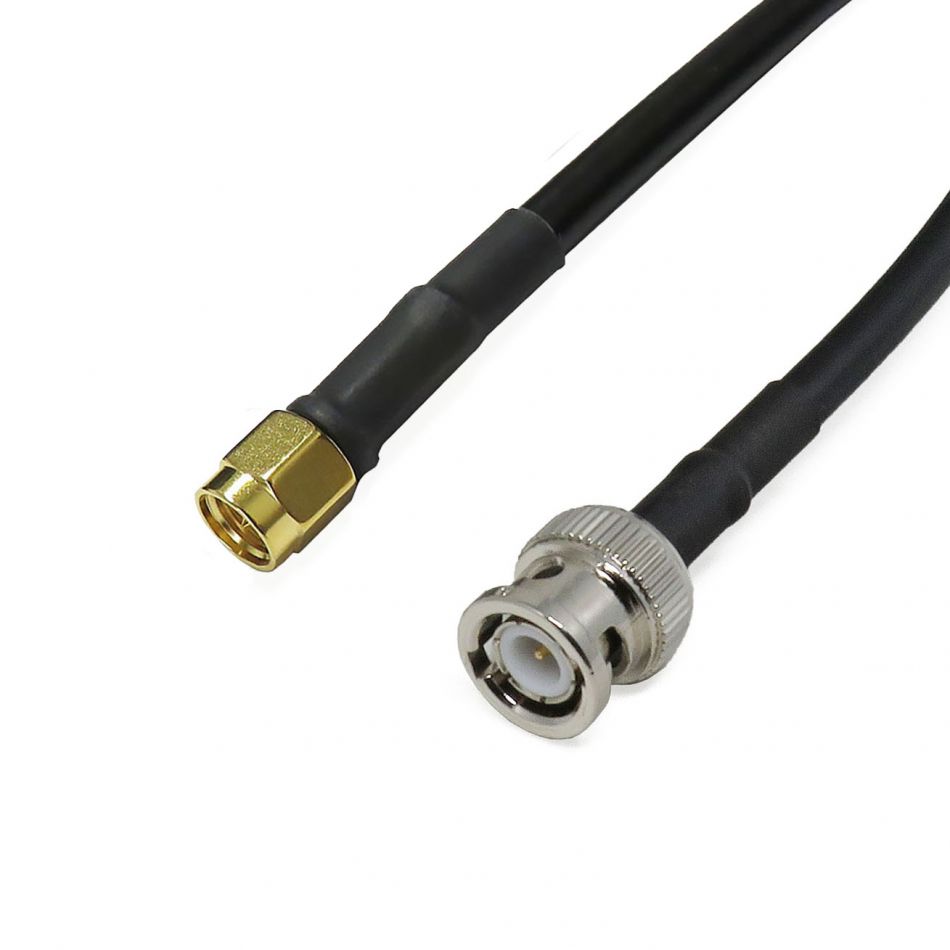

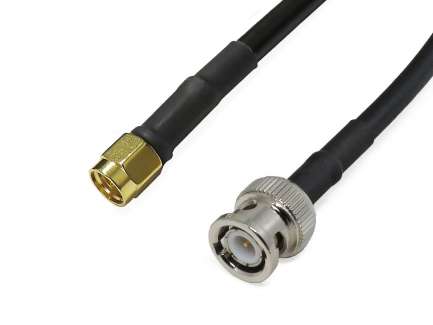

QAXIAL B02S02-12-01000 Coaxial cable assembly, BNC male/SMA male, RG223, 1 m

B02S02-12-01000 QAXIAL
Coaxial cable assembly, BNC male/SMA male, RG223, 1 m Brand: QAXIAL Manufacturer code: B02S02-12-01000 Order code: CIP-903 Category: Coaxial cable assemblies Product conditions: N (0 comments) Other available options Length CIP-900 - 25cm CIP-901 - 50cm CIP-902 - 75cm CIP-904 - 1.5m CIP-905 - 2m CIP-906 - 3m

Specifications

Maximum frequency:
4 GHz
Impedance :
50 Ohm
Cable type :
RG223
Dielectric:
PE
Connectors type:
BNC > SMA
Connectors gender:
male > male
Length:
1 m
Application:
general purpose
high shielding
Flexibility:
flexible

Documents (1)

	Title	Dimension
	B02S02-12-01000 - Datasheet	235.4 kB

Additional info

This product can be supplied with custom lenght >> contact us << for personalized pricing.

These cable assemblies are made with RG223/U flexible cable with outer diameter 5.4 mm, the main features are: a low insertion loss, the double shield that guarantees a good level of shielding even at high frequencies and a silver plated center conductor to reduce the attenuation. These cable assemblies are a better performing alternative to the cheaper RG58.
