Brand: Philips
Manufacturer code: SA606DK
Order code: SA606DK

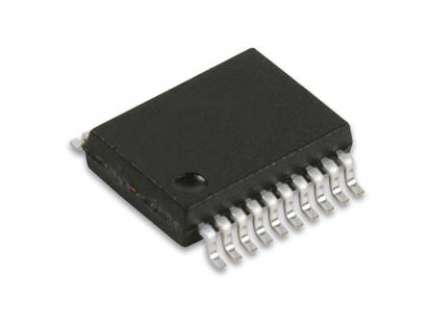

Low voltage high performance mixer, SSOP-20 SMD package

Product conditions: N
$5.08
/ pc
(VAT tax not included)
Minimum: 1 pc - Multiple: 1 pc
Stock
128 pcs ready to ship
Volume discounts
Quantity Unit Price You save
1+ $5.08 -
4+ $4.74 7%
10+ $4.46 12%
(VAT tax not included)
Compliance
EU Tariff Code 85423990
Weight 0.60 g
RoHS No
REACH Not available

Low voltage high performance mixer, SSOP-20 SMD package

Low voltage high performance mixer, SSOP-20 SMD package

Direct front-end up to 150 MHz or complete IF with input up to 150 MHz and 2 MHz max. BW, so it is suitable for medium/narrow bandwidth, first IF with sensitivity 0,31μV, conversion mixer and LO, second IF amplifier (eg 455 KHz) limiter and temperature compensated logarithmic RSSI amplifier with 90 dB dynamic, 102 dB of IF amp - limiter gain, audio preamplifier output, suggested also for low power applications with only 3.5 mA at 3V

SA606DK
/
Active mixers
  Title Dimension
Datasheet 218.1 kB
