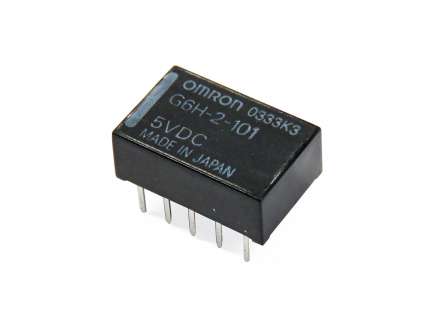

G6H-2-101 Omron

Electromechanical relay, DPDT, 5V

Omron
G6H-2-101
Order code: SW-G6H-5
Product conditions: N
  • low signal
  • PCB mount
  • DPDT
  • 1 A
  • 5 V
  • 178 Ohm
  • 33 W
  • 200 MHz
  • pin
  • No
  Title Dimension
G6H-2-101 - Datasheet 146.5 kB

Used for IF, HF, and VHF (up to 200 MHz)

  • 55 dB isolation @ 10 MHz
  • 45 dB isolation, 0.07 dB insertion loss @ 30 MHz (max. 25 W)
  • 32 dB isolation, 0.1 dB insertion loss @ 150 MHz (max. 20 W)

Used also in tranverter IF at 28 and 144 MHz

  • JP
  • 85364110
  • 1.50 g
  • No
  • Not available
Do login to add your comment
Availability
Stock
(immediate dispatch)
207 pcs
Cart
Minimum: 1 pc - Multiple: 1 pc
Unit Price:
$3.77
/ pc

Ext. price:
$3.77
(VAT tax not included)
Prices
Q.ty Unit Price Ext. price
1+ $3.77 $3.77
10+ $3.45 $34.49
25+ $3.12 $78.02
50+ $2.79 $139.64
100+ $2.46 $246.49
