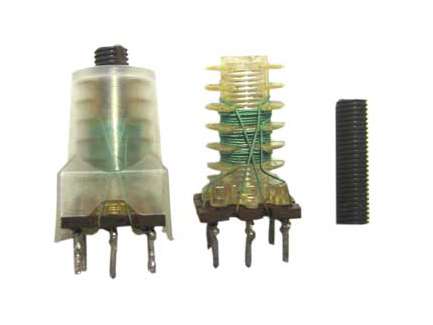

Tunable RF coil, 5.2 - 7.8µH, 10.5mm

Tunable RF coil, 5.2 - 7.8µH, 10.5mm

Q > 100 (6.5 µH from 1 to 15 MHz), high Q because with litz wire

Equivalent circuit

• Min. inductance:
  5.2 µH
• Max. inductance:
  7.8 µH
• Configuration:
  15 + 7 turns + 2 turns
• Minimum Q:
  100
• Test frequency:
  1 - 15 MHz
• Type :
  transformer
• Mounting:
  thru-hole
• Square or diameter size:
  10.5 mm
• Height:
  23 mm
• With metal can shield :
  No
