Brand: muRata
Manufacturer code: MQC404-446
Order code: MQC404-446

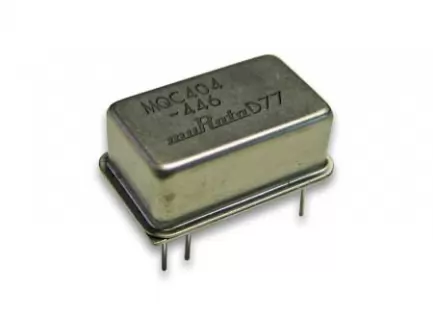

438 - 530 MHz VCO oscillator

Product conditions: N
$11.57
/ pc
(VAT tax not included)
Minimum: 1 pc - Multiple: 1 pc
Stock
215 pcs ready to ship
Volume discounts
Quantity Unit Price You save
1+ $11.57 -
4+ $10.27 11%
10+ $9.09 21%
30+ $8.03 31%
(VAT tax not included)
Compliance
Country of origin JP
EU Tariff Code 85416000
Weight 3.00 g
RoHS No
REACH Not available
  • 438 MHz
  • 530 MHz
  • 0.5 V
  • 15 V
  • 8 V
  • 14 mA
  • 9 dBm
  • 6 MHz/V
  • PCB
  • thru-hole
  • pin

438 - 530 MHz VCO oscillator

TECHNICAL SPECIFICATIONS:

  • Frequency: from 438 to 530 MHz with tuning voltage 0.5 - 15V
  • RF output level: 1 - 7mW
  • Tuning sensitivity: 6 MHz/V
  • Power supply: 4V @ 5mA, 8V @ 14mA
  • Phase noise: -117 dBc/Hz @ 25 KHz
  • RF output impedance: 50Ω
  • Outline dimensions: 12.5 x 20 mm, h 8 mm
MQC404-446
/
VCO oscillators
  Title Dimension
Datasheet 141.0 kB
