Brand: Mini-Circuits
Manufacturer code: ERA-6SM+
Order code: ERA-6SM

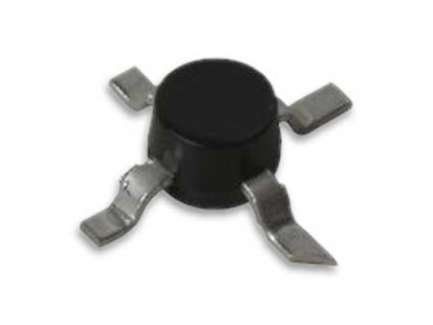

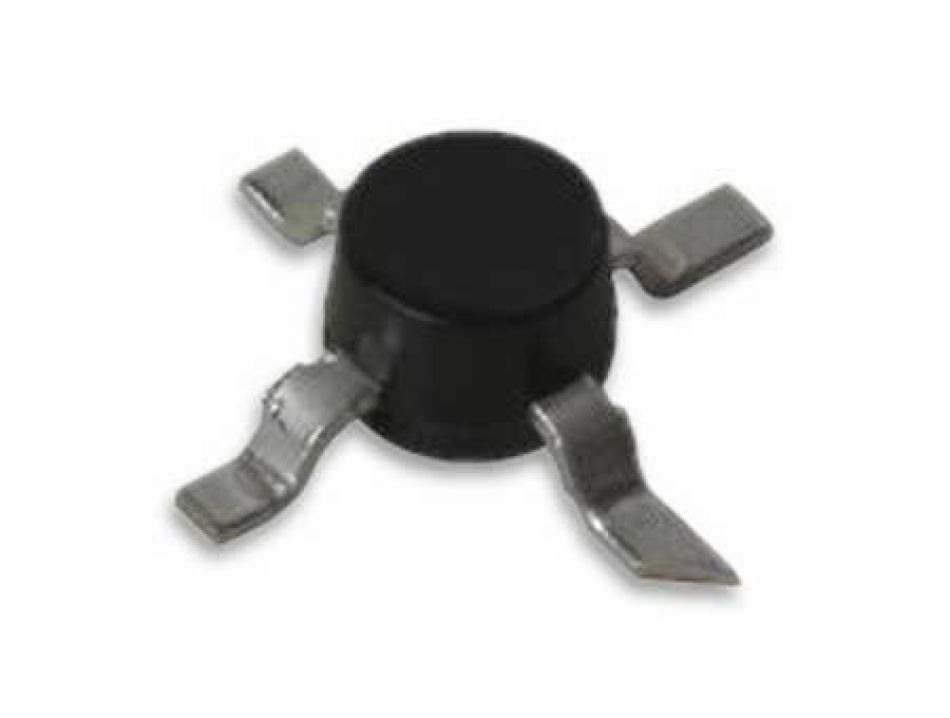

InGaP HBT MMIC amplifier, micro-X

Product conditions: N
$5.83
/ pc
(VAT tax not included)
Minimum: 1 pc - Multiple: 1 pc
Availability
Stock
(immediate dispatch)
0 pcs
Volume discounts
Quantity Unit Price You save
1+ $5.83 -
5+ $5.59 4%
10+ $5.32 9%
50+ $5.06 13%
100+ $4.82 17%
250+ $4.58 21%
(VAT tax not included)
Compliance
Country of origin MY
EU Tariff Code 85423390
Weight 1.00 g
RoHS Yes
REACH SVHC not present
  • 0 Hz
  • 4 GHz
  • 5 V
  • 70 mA
  • 451 mW
  • 13.3 dB
  • 17.2 dBm
  • 4.4 dB
  • micro-X
  • SMD

InGaP HBT MMIC amplifier, micro-X

Usable up to 10 GHz, very flat gain up to 6GHz because with negative feedback

GAIN:
- 11 dB @ 500 MHz
- 11 dB @ 1 GHz
- 11 dB @ 2 GHz
- 11 dB @ 3 GHz
- 11 dB @ 4 GHz
- 10 dB @ 6 GHz

ERA-6SM
/
  Title Dimension
Datasheet 202.3 kB
