T80-10 Micrometals

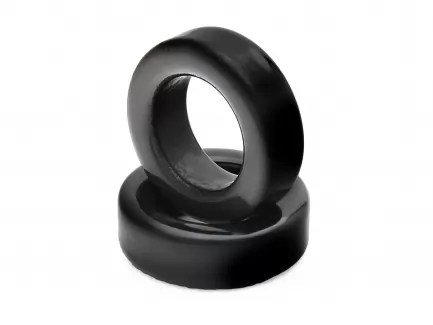

T80-10 - Iron powder toroid core, 15 - 100 MHz, OD 20.2 mm

Name: Iron powder toroid core, 15 - 100 MHz, OD 20.2 mm
Brand: Micrometals
SKU: T80-10
Price: 1.88 EUR
Availability: InStock

Brand: Micrometals

Manufacturer code: T80-10

Order code: T80-10

Category: RF iron powder toroids

Product conditions: N

Write the first review!
Your opinion can help other customers.

Other available options

Permeability (µ_i)

Outer diameter (metric)

Technical specifications T80-10

Color code:
black/clear
Material:
10
Permeability (µ_i):
6
A_L 100 turns:
32 µH
Frequency range:
15 - 100 MHz
Outer diameter (metric):
20.2 mm
Inner diameter (metric):
12.6 mm
Height (metric):
6.35 mm
Outer diameter (imperial):
0.795 in
Inner diameter (imperial):
0.495 in
Height (imperial):
0.25 in

Datasheets and documents T80-10

	Title	Dimension
	Datasheet	439.0 kB

Applications and additional information

Micrometals T80-10 Toroidal Core for RF

The T80-10 is a toroidal core made from Micrometals’ Mix 10 carbonyl iron powder. With a nominal outer diameter of 20.2mm (0.795 inches), this core is engineered for high-frequency performance and low loss. With a nominal permeability of 6μ, it offers excellent stability and high Q up to 150 MHz, making it ideal for RF and broadband applications.

Typical Applications

RF chokes and filters
Broadband transformers
Cable TV splitters and combiners
High-frequency inductors

Micrometals MIX 10 - Key Features

High frequency carbonyl Iron Powder material
High Q up to 150 MHz
Suitable for moderate band transformers from 400 to 700 MHz
Permeability 6μ

Compliance

Country of origin:
US
EU Tariff Code:
85049018
Weight:
6.00 g
RoHS:
Yes
REACH:
SVHC not present

Reviews (0)

Do login to add your review

Availability
Stock (immediate dispatch)	546 pcs
Immediate availability	Dedicated technical support

Cart
Minimum: 1 pc - Multiple: 1 pc Unit Price: $2.19 / pc Ext. price: $2.19 (VAT tax not included)
Secure SSL payments	Fast shipping

Prices
Q.ty	Unit Price	Ext. price
1+	$2.19	$2.19
10+	$1.80	$17.95
50+	$1.56	$78.10
100+	$1.42	$142.20
250+	$1.29	$323.45
400+	$1.24	$494.21
(VAT tax not included)
