finishing
Brand: Microelectronics Ltd.
Manufacturer code: SHQ34-200C
Order code: CPHK-20P
Leaded HF and VHF ceramic capacitor, 20 pF, 500V
Product conditions: N
$4.07
/ pc
(VAT tax not included)
| Availability | |
|---|---|
| Stock (immediate dispatch) |
2 pcs |
| Compliance | |
|---|---|
| EU Tariff Code | 85322400 |
| Weight | 3.00 g |
| RoHS | No |
| REACH | Not available |
-
porcelain multilayer
RF medium power -
20 pF
-
0.25 pF
-
500 V
-
14 x 14 mm
-
7.5 mm

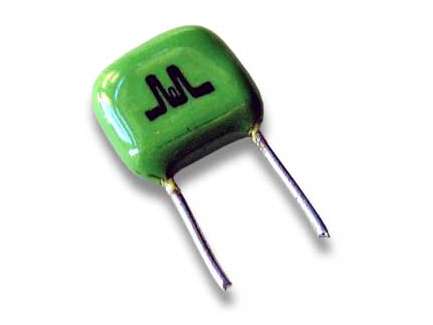

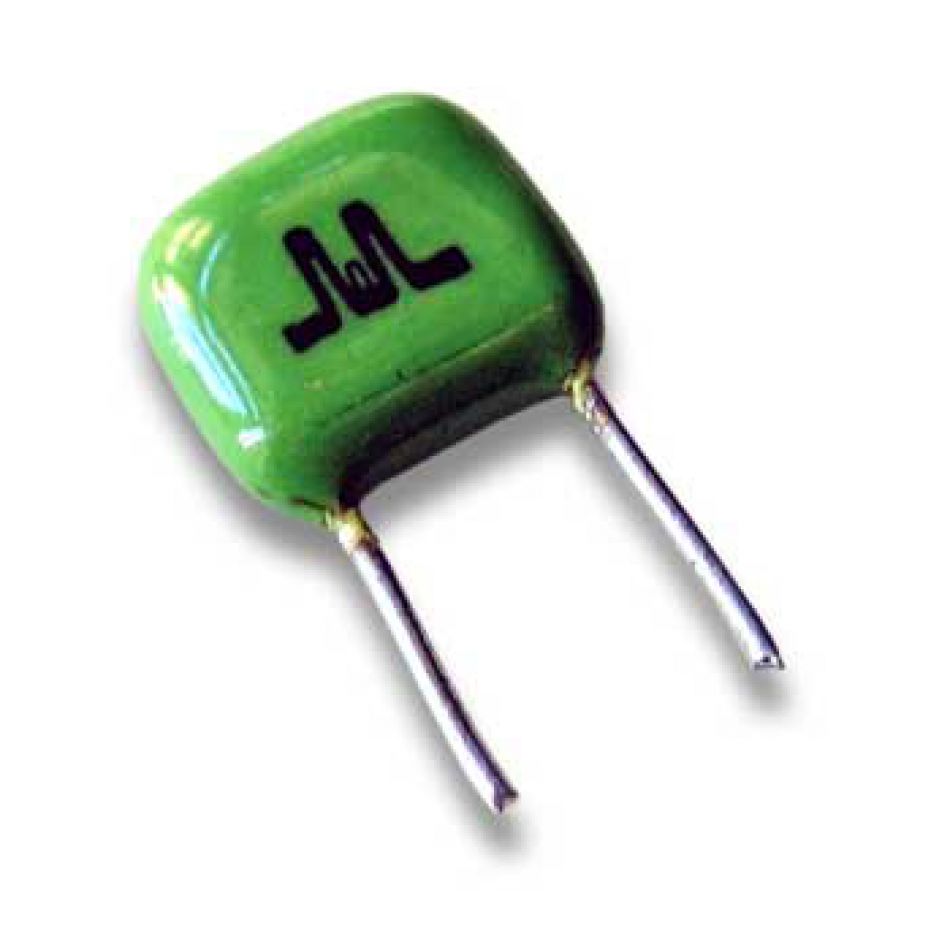

Leaded HF and VHF ceramic capacitor, 20 pF, 500V
These capacitors are suitable for HF and low VHF frequencies.
High precision (1% or ±0.25 pF) and quality capacitors, they are partcularry used as matching on final stage of RF medium power.
- Made of porcelain ceramic for high RF current
- Temperature range -55° / +125°C (no derating)
- External glass covering
- Silver leads to improve capacitor's high Q
- 500V rms operating @ 30 MHz
- 1000Vdc test
- High precision, typical ±1% or ±0.25 pF
